9t2e
Bromodomain containing protein 1 with crystal epitope mutations P566E:V569R
SAXS Profile

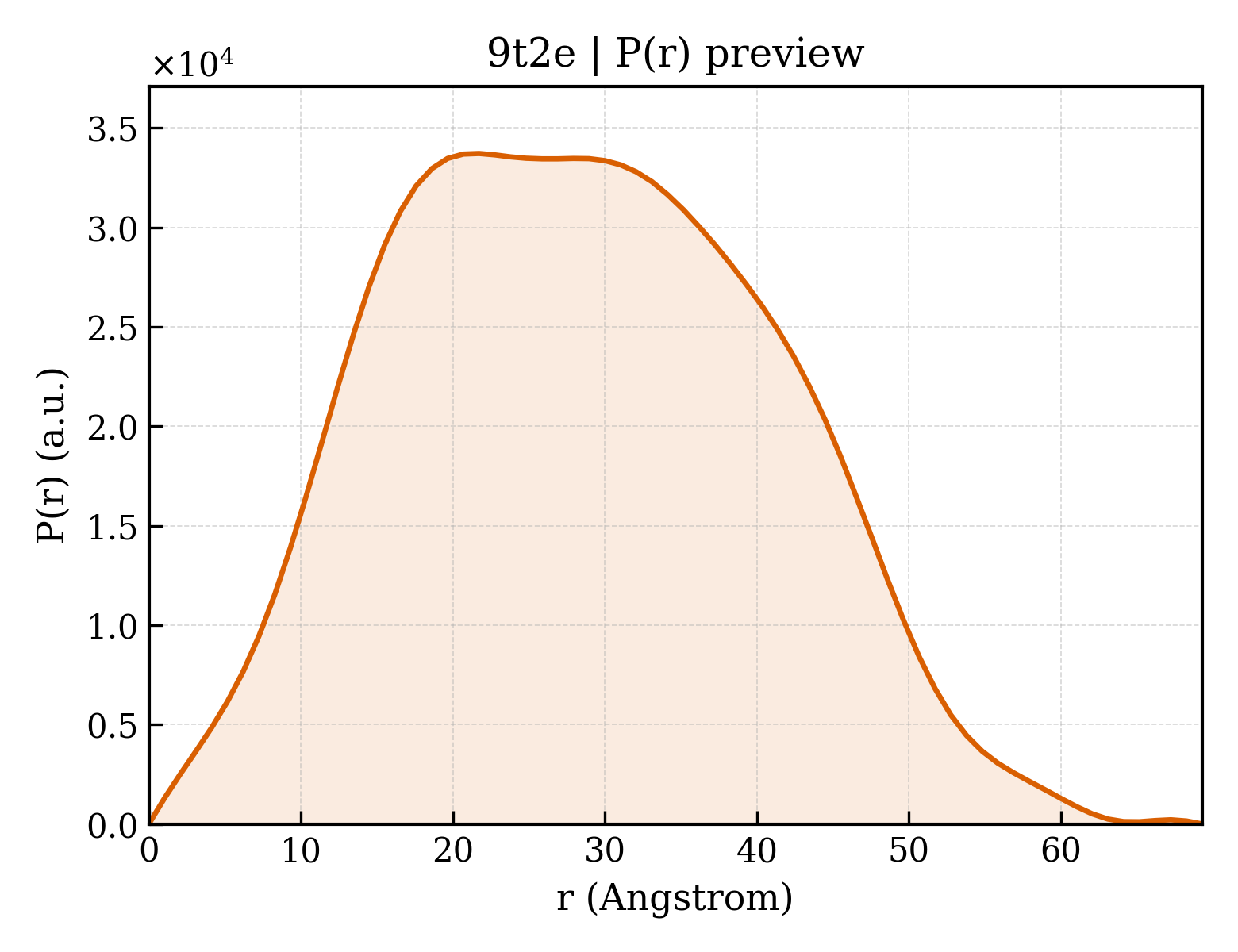

P(r) Distribution
1. Structure Basics
| entry_id | 9t2e |
| deposition_date | 2025-10-22 |
| last_revision | 2025-12-10 |
| title | Bromodomain containing protein 1 with crystal epitope mutations P566E:V569R |
| keywords | Crystal epitope, GENE REGULATION; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.97 Å |
| rg_electron | 21.06 Å |
| i0 | 15200500.00 |
| molecular_weight | 28865.0 kDa |
| excluded_volume | 35940 ų |
| envelope_volume | 46295 ų |
| shell_volume | 18615 ų |
| envelope_diameter | 69.7 Å |
| shell_rg | 27.30 Å |
| envelope_rg | 21.08 Å |
| shape_rg | 20.99 Å |
| total_rg | 22.12 Å |
| total_atoms | 2026 |
| n_residues | 246 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.3 Å |
| rg_real | 21.89 Å |
| rg_real_error | 0.42 Å |
| i0_real | 1.5200e+07 |
| i0_real_error | 2.0340e+05 |
| rg_reciprocal | 21.91 Å |
| i0_reciprocal | 15200000.0000 |
| total_estimate | 0.9007 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 21.7 Å |
| skewness | 0.159 |
| kurtosis | -0.623 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4592000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.920; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.960 |
