9t6v
Low-dose (32.5 kGy) structure of horse-heart myoglobin at room temperature
SAXS Profile

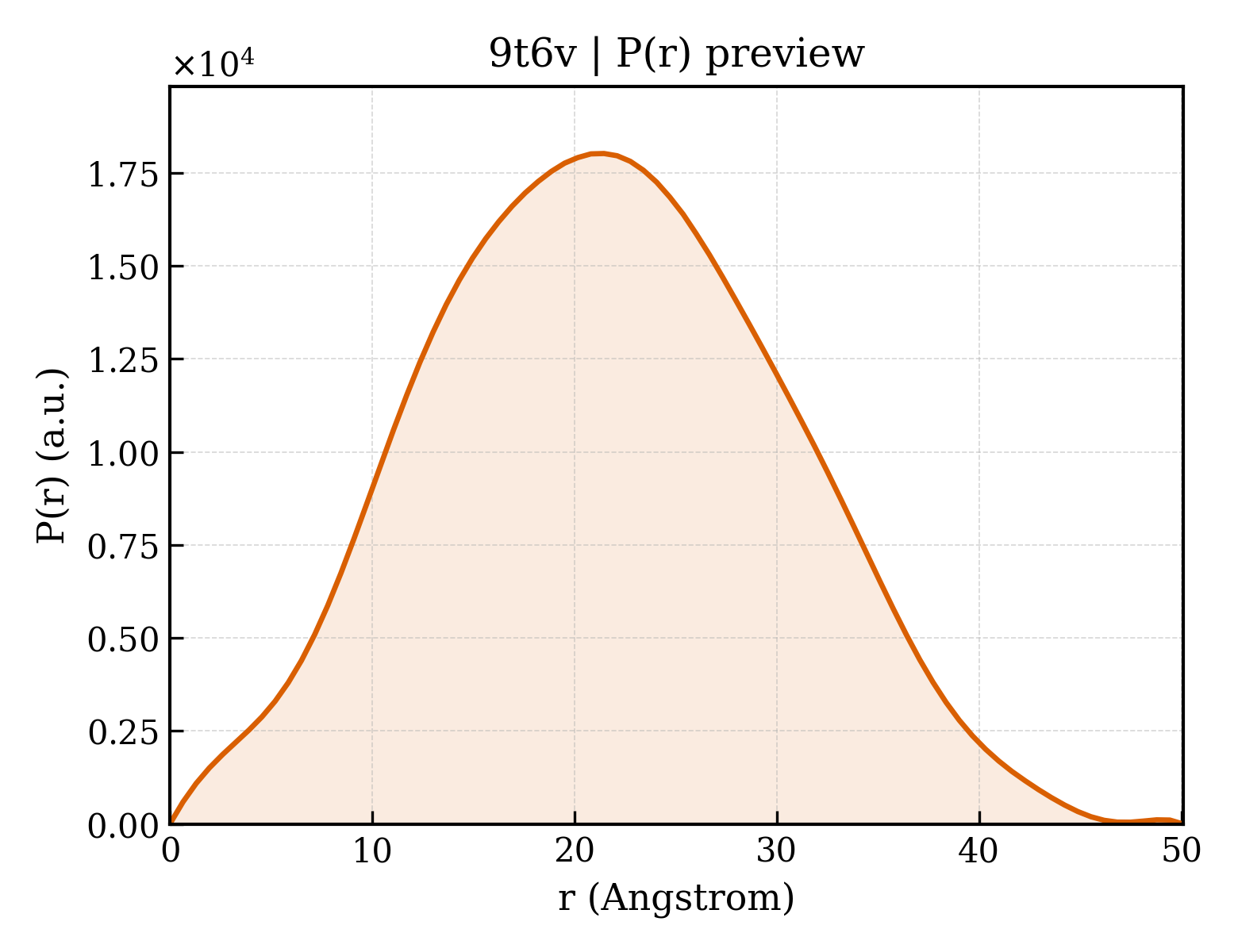

P(r) Distribution
1. Structure Basics
| entry_id | 9t6v |
| deposition_date | 2025-11-07 |
| title | Low-dose (32.5 kGy) structure of horse-heart myoglobin at room temperature |
| keywords | MYO, Myoglobin, Radiation Damage, Room-temperature crystallography, Metalloproteins, OXYGEN STORAGE; OXYGEN STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.56 Å |
| rg_electron | 15.10 Å |
| i0 | 5253940.00 |
| molecular_weight | 17201.0 kDa |
| excluded_volume | 21815 ų |
| envelope_volume | 24450 ų |
| shell_volume | 13786 ų |
| envelope_diameter | 49.8 Å |
| shell_rg | 20.83 Å |
| envelope_rg | 15.27 Å |
| shape_rg | 15.08 Å |
| total_rg | 16.25 Å |
| total_atoms | 1217 |
| n_residues | 151 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.1 Å |
| rg_real | 16.44 Å |
| rg_real_error | 0.25 Å |
| i0_real | 5.2540e+06 |
| i0_real_error | 5.6740e+04 |
| rg_reciprocal | 16.45 Å |
| i0_reciprocal | 5254000.0000 |
| total_estimate | 0.9056 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.5 Å |
| skewness | 0.099 |
| kurtosis | -0.454 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 783200.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.979 |
