9t6w
Higher-dose (260.0 kGy) structure of horse-heart myoglobin at room temperature

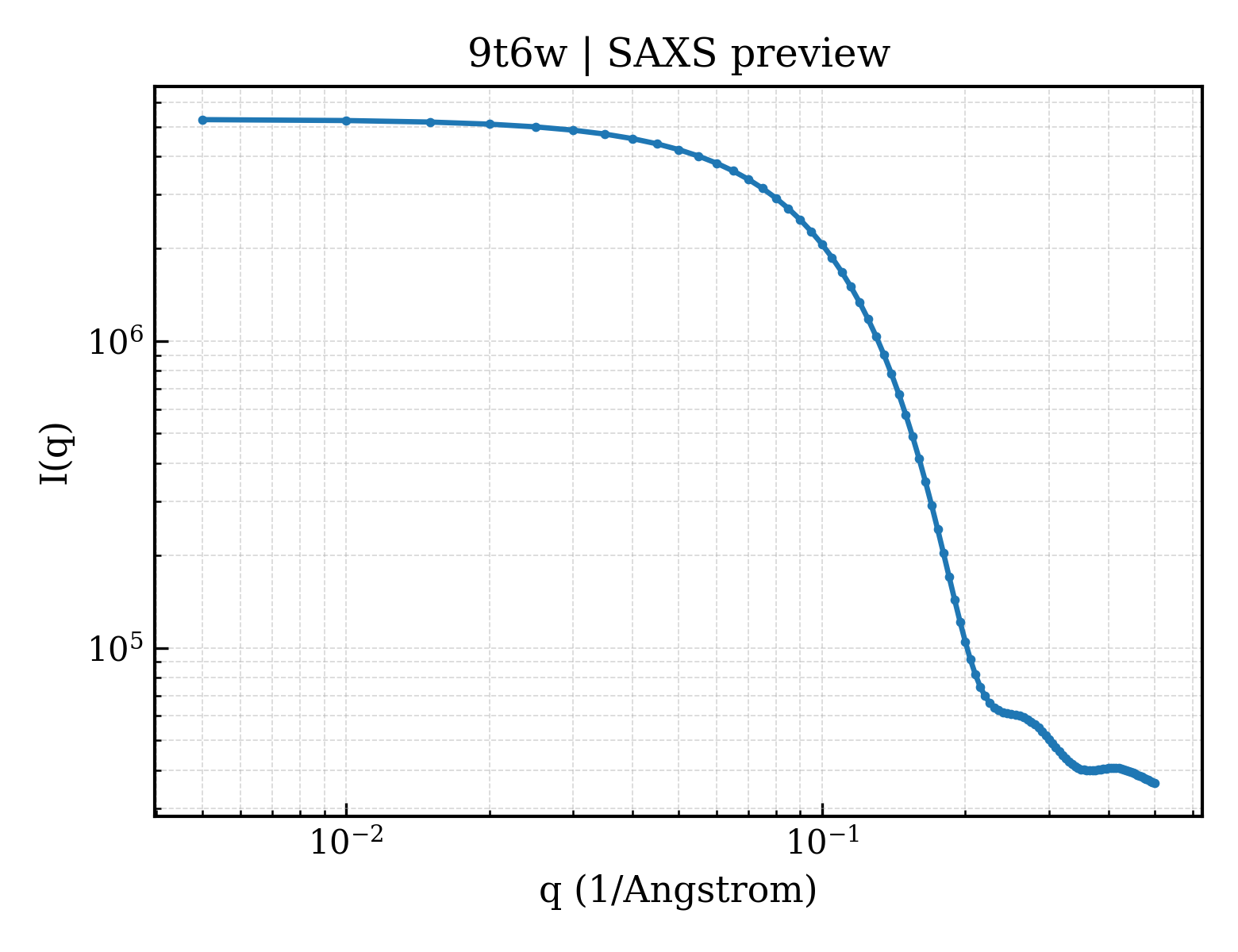

SAXS Profile

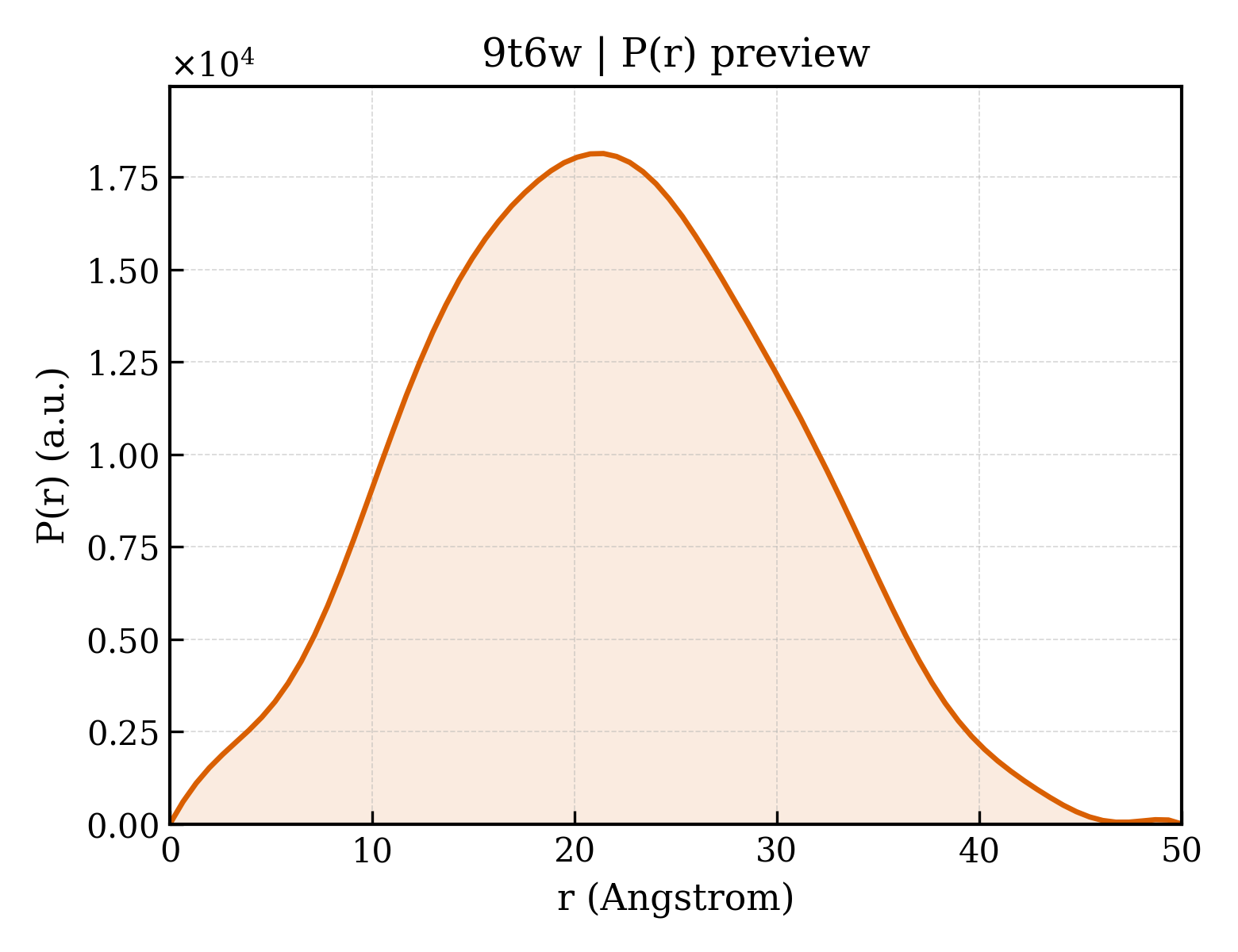

P(r) Distribution
1. Structure Basics
| entry_id | 9t6w |
| deposition_date | 2025-11-07 |
| title | Higher-dose (260.0 kGy) structure of horse-heart myoglobin at room temperature |
| keywords | MYO, Myoglobin, Radiation Damage, Room-temperature crystallography, Metalloproteins, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.54 Å |
| rg_electron | 15.06 Å |
| i0 | 5279830.00 |
| molecular_weight | 17137.0 kDa |
| excluded_volume | 21690 ų |
| envelope_volume | 24294 ų |
| shell_volume | 13736 ų |
| envelope_diameter | 49.7 Å |
| shell_rg | 20.76 Å |
| envelope_rg | 15.23 Å |
| shape_rg | 15.05 Å |
| total_rg | 16.20 Å |
| total_atoms | 1213 |
| n_residues | 151 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.0 Å |
| rg_real | 16.42 Å |
| rg_real_error | 0.24 Å |
| i0_real | 5.2800e+06 |
| i0_real_error | 5.6990e+04 |
| rg_reciprocal | 16.44 Å |
| i0_reciprocal | 5280000.0000 |
| total_estimate | 0.9055 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.098 |
| kurtosis | -0.456 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 784000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.979 |
