9tet
Oligomerisation of type III CRISPR-associated Csx15 to regulate antiviral signalling

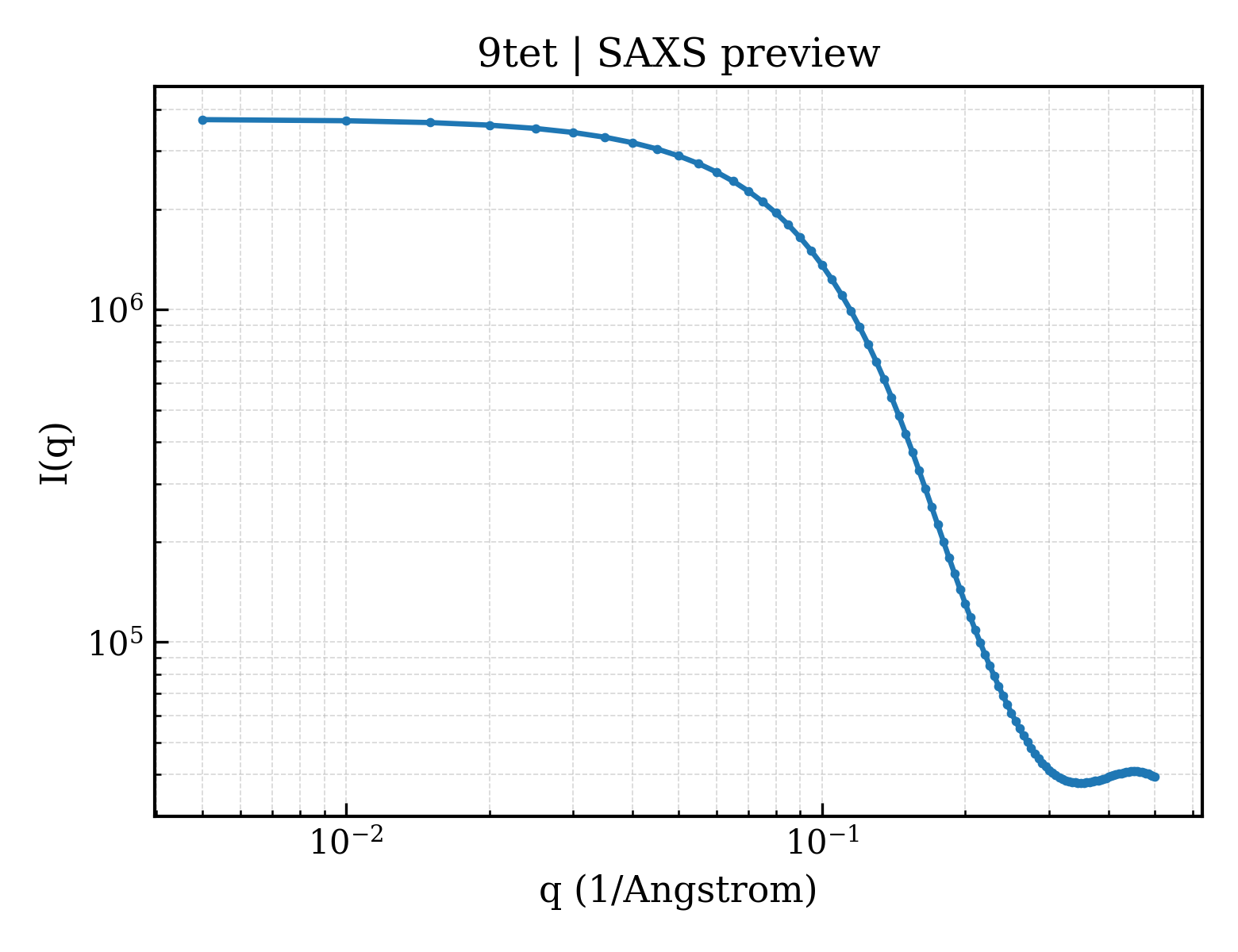

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9tet |
| deposition_date | 2025-11-26 |
| title | Oligomerisation of type III CRISPR-associated Csx15 to regulate antiviral signalling |
| keywords | Ring nuclease Crispr bacterial defense, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.44 Å |
| rg_electron | 16.00 Å |
| i0 | 3738590.00 |
| molecular_weight | 13876.0 kDa |
| excluded_volume | 17536 ų |
| envelope_volume | 21383 ų |
| shell_volume | 12091 ų |
| envelope_diameter | 59.5 Å |
| shell_rg | 20.91 Å |
| envelope_rg | 16.45 Å |
| shape_rg | 15.97 Å |
| total_rg | 17.12 Å |
| total_atoms | 980 |
| n_residues | 127 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.6 Å |
| rg_real | 17.44 Å |
| rg_real_error | 0.42 Å |
| i0_real | 3.7390e+06 |
| i0_real_error | 4.8150e+04 |
| rg_reciprocal | 17.44 Å |
| i0_reciprocal | 3739000.0000 |
| total_estimate | 0.7970 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 51.6 Å |
| skewness | 0.318 |
| kurtosis | -0.263 |
| angular_range | — – 0.4550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 507100.0000 |
| n_real_points | 76 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.797; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.000 |
