SAXSdb — 9uaa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F0

Henipavirus nipahense

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	5C8-VL × 3 5C8-VH × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FUS_NIPAV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–445； UniProt 27–471 Author chain B； PDBConstruct 1–445； UniProt 27–471 Author chain C； PDBConstruct 1–445； UniProt 27–471

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9uaa
Deposition date deposition_date	2025-03-31
Structure title title	Nipah virus fusion glycoprotein in complex with a broadly neutralizing antibody 5C8
Keywords keywords	Henipavirus, Fusion glycoprotein, Antibody, ANTIVIRAL PROTEIN, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9uaa__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9uaa__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

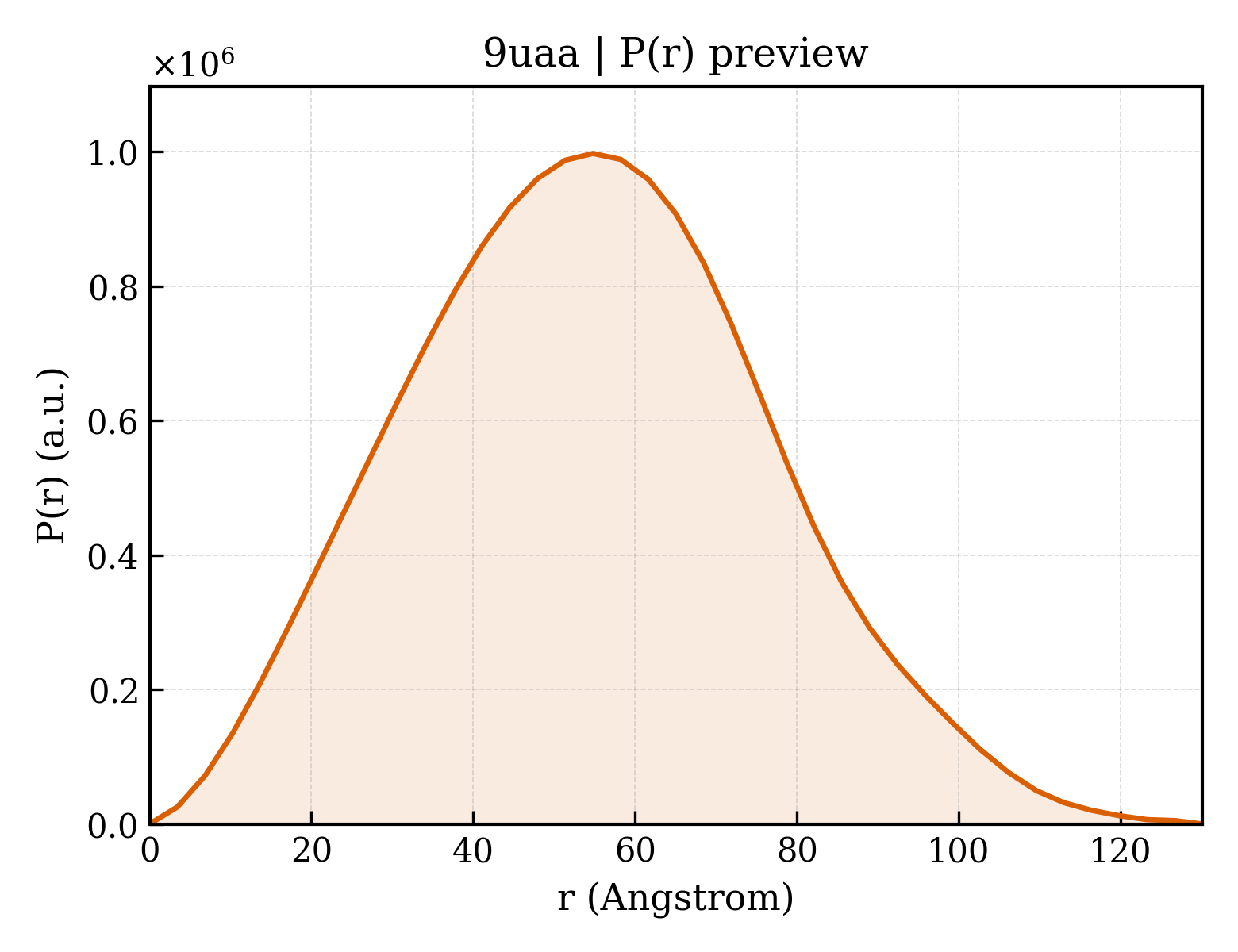

9uaa__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.66 Å
Rg (electron density)	40.89 Å
Total Rg	41.27 Å
Atom count	15630
Residues	2013
Excluded volume	280210 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9uaa__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fusion glycoprotein F0
Molecular weight formula_weight	48823.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	15994

ILHYEKLSKIGLVKGVTRKYKIKSNPLTKDIVIKMIPNVSNMSQCTGSVMENYKTRLNGILTPIKGALEIYKNNTHDLVGDVRLAGVIMAGVAIGIATAAQITAGVALYEAMKNADNINKLKSSIESTNEAVVKLQETAEKTVYVLTALQDYINTNLVPTIDKISCKQTELSLDLALSKYLSDLLFVFGPNLQDPVSNSMTIQAISQAFGGNYETLLRTLGYATEDFDDLLESDSITGQIIYVDLSSYYIIVRVYFPILTEIQQAYIQELLPVSFNNDNSEWISIVPNFILVRNTLISNIEIGFCLITKRSVICNQDYATPMTNNMRECLTGSTEKCPRELVVSSHVPRFALSNGVLFANCISVTCQCQTTGRAISQSGEQTLLMIDNTTCPTAVLGNVIISLGKYLGSVNYNSEGIAIGPPVFTDKVDISSQISSMNQSLQQSK

Source Source

Source organism organism	Henipavirus nipahense
NCBI taxonomy ID ncbi_taxonomy_id	3052225
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	5C8-VL
Molecular weight formula_weight	11414.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,E,D

DIQLTQSPSSLSASVGDTVTITCQASQGIGNNLHWYQQKPGKAPKLLIYRASSLQSGIPSRFSGSGSGTDYTLTISSLQPEDFAYYCQQGYSYPFTFGPGTKVDIK

Source Source

Source organism organism	Macaca
NCBI taxonomy ID ncbi_taxonomy_id	9539
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	5C8-VH
Molecular weight formula_weight	14085.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

QVQLQESGPGVVKPSETLSLTCAVSGGSISDSYRWSWIRQPPGKGLEWIGYIYGSSTSTNYNPSLKSRVTISKDTSKNQFSLNLSSLTAADTAVYYCVRVVQYLEWFVDLIEVNWFDVWGPGVLVTV

Source Source

Source organism organism	Macaca
NCBI taxonomy ID ncbi_taxonomy_id	9539
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	340

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.22 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	462582

Nipah virus fusion glycoprotein in complex with a broadly neutralizing antibody 5C8
