9uc5
Mini-protein binder of N-terminal domain of nucleocapsid protein of SARS-CoV2
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9uc5 |
| deposition_date | 2025-04-03 |
| title | Mini-protein binder of N-terminal domain of nucleocapsid protein of SARS-CoV2 |
| keywords | SARS-CoV2 Nucleocapsid binding protein, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.40 Å |
| rg_electron | 18.53 Å |
| i0 | 7815390.00 |
| molecular_weight | 20967.0 kDa |
| excluded_volume | 26579 ų |
| envelope_volume | 32262 ų |
| shell_volume | 15296 ų |
| envelope_diameter | 74.4 Å |
| shell_rg | 23.76 Å |
| envelope_rg | 18.88 Å |
| shape_rg | 18.49 Å |
| total_rg | 19.53 Å |
| total_atoms | 1475 |
| n_residues | 188 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

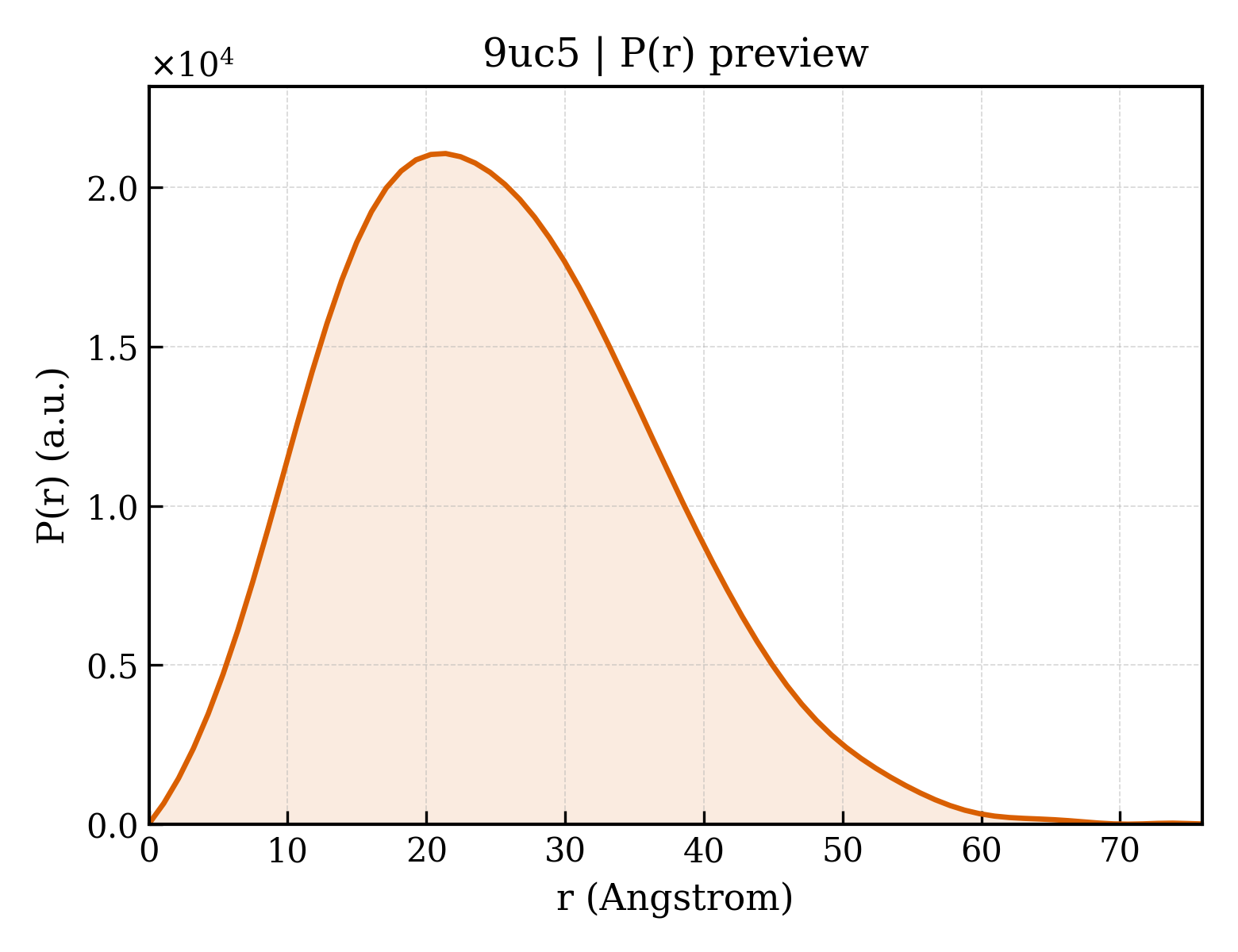

3. P(r) Analysis (GNOM)
| dmax | 75.9 Å |
| rg_real | 19.45 Å |
| rg_real_error | 0.70 Å |
| i0_real | 7.8150e+06 |
| i0_real_error | 1.0920e+05 |
| rg_reciprocal | 19.44 Å |
| i0_reciprocal | 7815000.0000 |
| total_estimate | 0.7917 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.425 |
| kurtosis | -0.143 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2326000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.572; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.577; Smooth: 0.996 |
