9ups
Anti-CRISPR protein

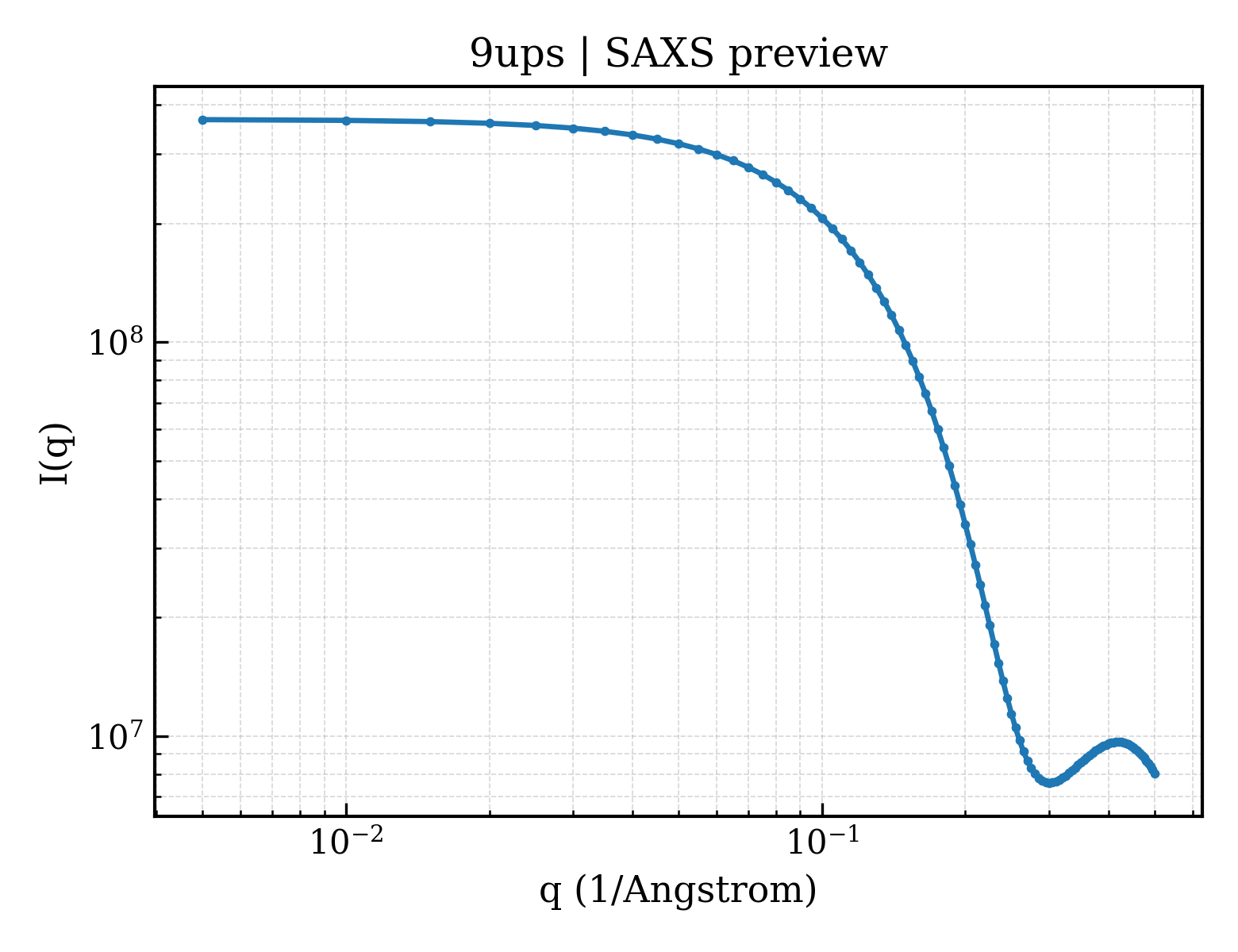

SAXS Profile

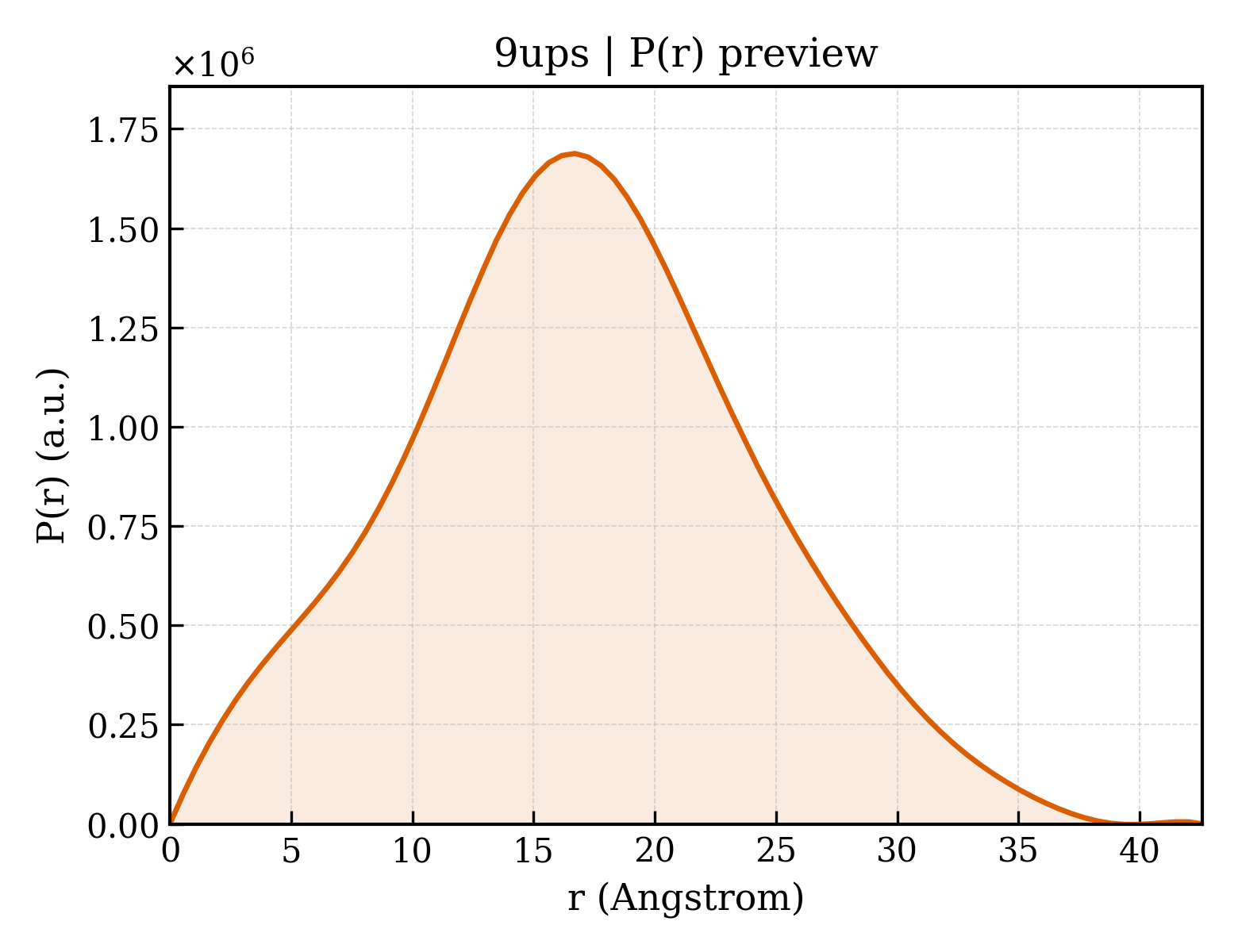

P(r) Distribution
1. Structure Basics
| entry_id | 9ups |
| deposition_date | 2025-04-29 |
| last_revision | 2026-04-29 |
| title | Anti-CRISPR protein |
| keywords | Inhibitor, VIRAL PROTEIN; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.10 Å |
| rg_electron | 12.55 Å |
| i0 | 367341000.00 |
| molecular_weight | 149780.0 kDa |
| excluded_volume | 182500 ų |
| envelope_volume | 21439 ų |
| shell_volume | 12674 ų |
| envelope_diameter | 46.6 Å |
| shell_rg | 20.11 Å |
| envelope_rg | 14.87 Å |
| shape_rg | 12.51 Å |
| total_rg | 12.86 Å |
| total_atoms | 20460 |
| n_residues | 1300 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.6 Å |
| rg_real | 13.04 Å |
| rg_real_error | 0.34 Å |
| i0_real | 3.6730e+08 |
| i0_real_error | 4.2680e+06 |
| rg_reciprocal | 13.04 Å |
| i0_reciprocal | 367300000.0000 |
| total_estimate | 0.8740 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.7 Å |
| skewness | 0.127 |
| kurtosis | -0.297 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 75830.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.793; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.980 |
