9utw

Structure of dimeric FKS1 in complex with tRNA

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein YMR295C

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 4 RNA 1 其他Polymer 2	1,3-beta-glucan synthase component FKS1 × 2 （P38631） tRNA × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 MAGNESIUM ION × 2 nonane × 8 DECANE × 2 HEPTANE × 6 (11R,14S)-17-amino-14-hydroxy-8,14-dioxo-9,13,15-trioxa-14lambda~5~-phosphaheptadecan-11-yl decanoate × 2 DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 PALMITIC ACID × 16 icosanoic acid × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YM8V_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–197； UniProt 1–197 Author chain G； PDBConstruct 1–197； UniProt 1–197

1,3-beta-glucan synthase component FKS1

OrganismNot specified

UniProt P38631

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 4 RNA 1 其他Polymer 2	Uncharacterized protein YMR295C × 2 （Q03559） tRNA × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 beta-D-glucopyranose-(1-3)-beta-D-glucopyranose × 1 MAGNESIUM ION × 2 nonane × 8 DECANE × 2 HEPTANE × 6 (11R,14S)-17-amino-14-hydroxy-8,14-dioxo-9,13,15-trioxa-14lambda~5~-phosphaheptadecan-11-yl decanoate × 2 DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 PALMITIC ACID × 16 icosanoic acid × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FKS1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1876； UniProt 1–1876 Author chain H； PDBConstruct 1–1876； UniProt 1–1876

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9utw
Deposition date deposition_date	2025-05-05
Structure title title	Structure of dimeric FKS1 in complex with tRNA
Keywords keywords	MEMBRANE PROTEIN-RNA COMPLEX, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9utw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9utw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

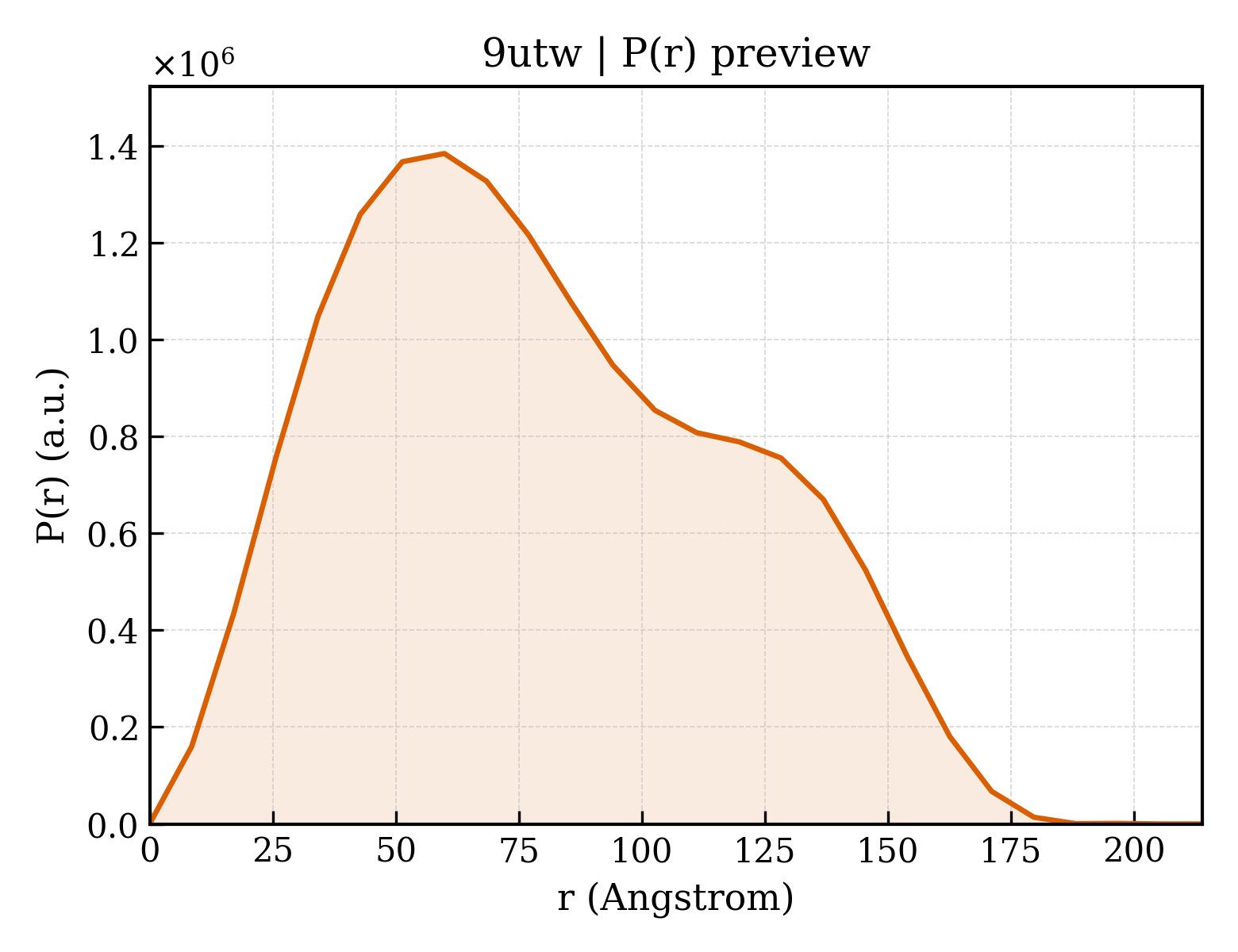

9utw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.06 Å
Rg (electron density)	63.71 Å
Total Rg	63.39 Å
Atom count	25408
Residues	2930
Excluded volume	457520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9utw__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Description description	Uncharacterized protein YMR295C
Molecular weight formula_weight	22209.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G
Atom count atom_count	25408

MMHFRKKSSISNTSDHDGANRASDVKISEDDKARLKMRTASVADPILDAVQEAQPFEQAADTFHDNMNRQSYFSNEEGHVLCDVFGQPITQADISNPTRARDERPLDTIRSFEYAVSGDPVWAQQLETPTYGFRVRPDFPVFGAAVTYDANGMPQQVGGASSQMYGEQAVYQPQQHVQTEEKQKKKKKGLFGRMKKK

Entity 2 Entity 2 polymer

Description description	1,3-beta-glucan synthase component FKS1
Molecular weight formula_weight	215076.2 kDa
EC 编号 ec_number	2.4.1.34
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,B

MNTDQQPYQGQTDYTQGPGNGQSQEQDYDQYGQPLYPSQADGYYDPNVAAGTEADMYGQQPPNESYDQDYTNGEYYGQPPNMAAQDGENFSDFSSYGPPGTPGYDSYGGQYTASQMSYGEPNSSGTSTPIYGNYDPNAIAMALPNEPYPAWTADSQSPVSIEQIEDIFIDLTNRLGFQRDSMRNMFDHFMVLLDSRSSRMSPDQALLSLHADYIGGDTANYKKWYFAAQLDMDDEIGFRNMSLGKLSRKARKAKKKNKKAMEEANPEDTEETLNKIEGDNSLEAADFRWKAKMNQLSPLERVRHIALYLLCWGEANQVRFTAECLCFIYKCALDYLDSPLCQQRQEPMPEGDFLNRVITPIYHFIRNQVYEIVDGRFVKRERDHNKIVGYDDLNQLFWYPEGIAKIVLEDGTKLIELPLEERYLRLGDVVWDDVFFKTYKETRTWLHLVTNFNRIWVMHISIFWMYFAYNSPTFYTHNYQQLVDNQPLAAYKWASCALGGTVASLIQIVATLCEWSFVPRKWAGAQHLSRRFWFLCIIFGINLGPIIFVFAYDKDTVYSTAAHVVAAVMFFVAVATIIFFSIMPLGGLFTSYMKKSTRRYVASQTFTAAFAPLHGLDRWMSYLVWVTVFAAKYSESYYFLVLSLRDPIRILSTTAMRCTGEYWWGAVLCKVQPKIVLGLVIATDFILFFLDTYLWYIIVNTIFSVGKSFYLGISILTPWRNIFTRLPKRIYSKILATTDMEIKYKPKVLISQVWNAIIISMYREHLLAIDHVQKLLYHQVPSEIEGKRTLRAPTFFVSQDDNNFETEFFPRDSEAERRISFFAQSLSTPIPEPLPVDNMPTFTVLTPHYAERILLSLREIIREDDQFSRVTLLEYLKQLHPVEWECFVKDTKILAEETAAYEGNENEAEKEDALKSQIDDLPFYCIGFKSAAPEYTLRTRIWASLRSQTLYRTISGFMNYSRAIKLLYRVENPEIVQMFGGNAEGLERELEKMARRKFKFLVSMQRLAKFKPHELENAEFLLRAYPDLQIAYLDEEPPLTEGEEPRIYSALIDGHCEILDNGRRRPKFRVQLSGNPILGDGKSDNQNHALIFYRGEYIQLIDANQDNYLEECLKIRSVLAEFEELNVEQVNPYAPGLRYEEQTTNHPVAIVGAREYIFSENSGVLGDVAAGKEQTFGTLFARTLSQIGGKLHYGHPDFINATFMTTRGGVSKAQKGLHLNEDIYAGMNAMLRGGRIKHCEYYQCGKGRDLGFGTILNFTTKIGAGMGEQMLSREYYYLGTQLPVDRFLTFYYAHPGFHLNNLFIQLSLQMFMLTLVNLSSLAHESIMCIYDRNKPKTDVLVPIGCYNFQPAVDWVRRYTLSIFIVFWIAFVPIVVQELIERGLWKATQRFFCHLLSLSPMFEVFAGQIYSSALLSDLAIGGARYISTGRGFATSRIPFSILYSRFAGSAIYMGARSMLMLLFGTVAHWQAPLLWFWASLSSLIFAPFVFNPHQFAWEDFFLDYRDYIRWLSRGNNQYHRNSWIGYVRMSRARITGFKRKLVGDESEKAAGDASRAHRTNLIMAEIIPCAIYAAGCFIAFTFINAQTGVKTTDDDRVNSVLRIIICTLAPIAVNLGVLFFCMGMSCCSGPLFGMCCKKTGSVMAGIAHGVAVIVHIAFFIVMWVLESFNFVRMLIGVVTCIQCQRLIFHCMTALMLTREFKNDHANTAFWTGKWYGKGMGYMAWTQPSRELTAKVIELSEFAADFVLGHVILICQLPLIIIPKIDKFHSIMLFWLKPSRQIRPPIYSLKQTRLRKRMVKKYCSLYFLVLAIFAGCIIGPAVASAKIHKHIGDSLDGVVHNLFQPINTTNNDTGSQMSTYQSHYYTHTPSLKTWSTIK

Entity 3 Entity 3 polymer

Description description	tRNA
Molecular weight formula_weight	24503.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	A

GGGCGUGUGGCGUAGUCGGUAGCGCGCUCCCUUIGCAUGGGAGAGGUCUCCGGUUCGAUUCCGGACUCGUCCGCCA

Entity 4 Entity 4 branched

Description description	beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose
Molecular weight formula_weight	504.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	beta-D-glucopyranose-(1-3)-beta-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	nonane
Molecular weight formula_weight	128.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 8 Entity 8 non-polymer

Description description	DECANE
Molecular weight formula_weight	142.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	HEPTANE
Molecular weight formula_weight	100.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 10 Entity 10 non-polymer

Description description	(11R,14S)-17-amino-14-hydroxy-8,14-dioxo-9,13,15-trioxa-14lambda~5~-phosphaheptadecan-11-yl decanoate
Molecular weight formula_weight	495.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE
Molecular weight formula_weight	692.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 12 Entity 12 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 13 Entity 13 non-polymer

Description description	icosanoic acid
Molecular weight formula_weight	312.5 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.96 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	243849
