9uv5
ligament intra-crystalline peptide (LICP)

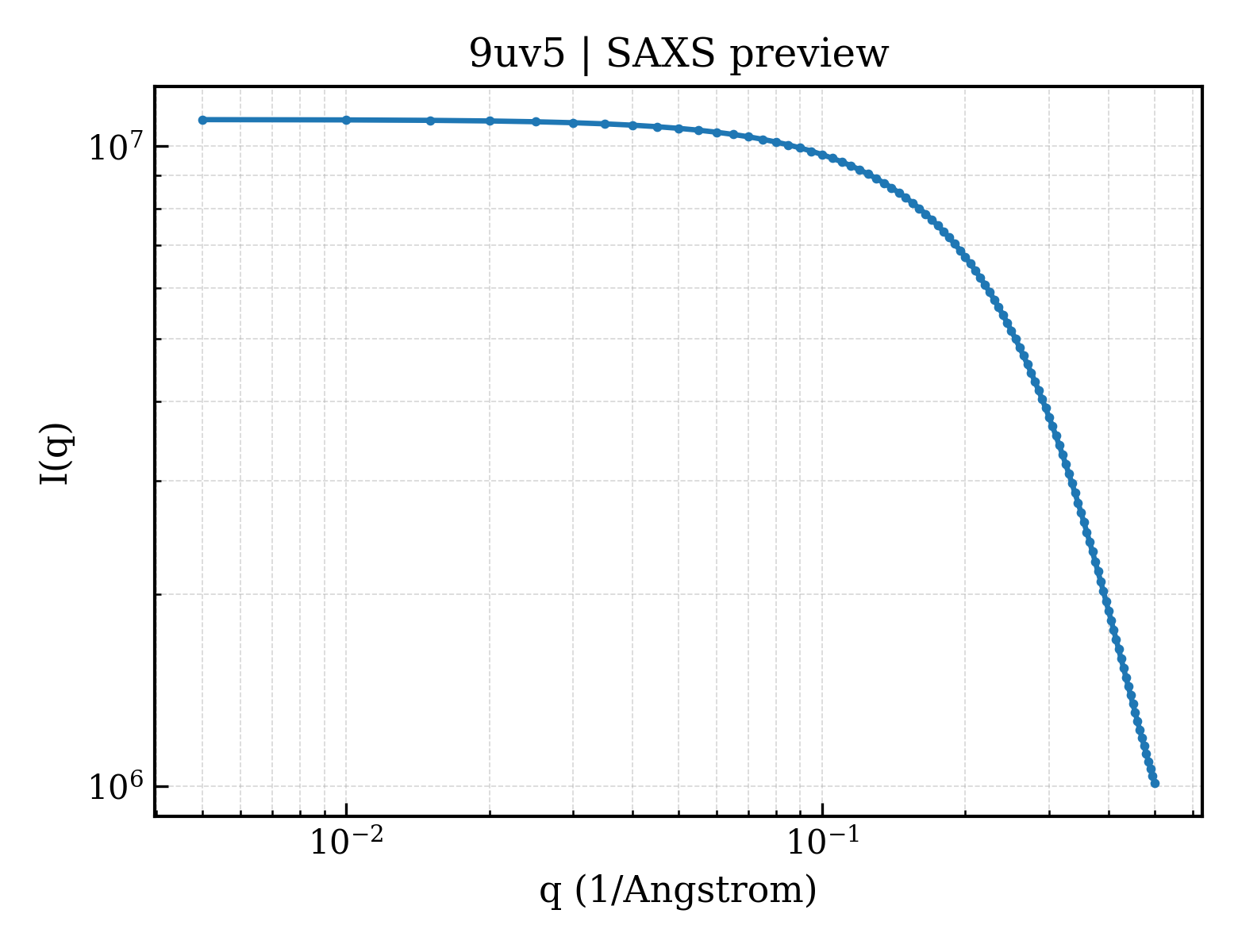

SAXS Profile

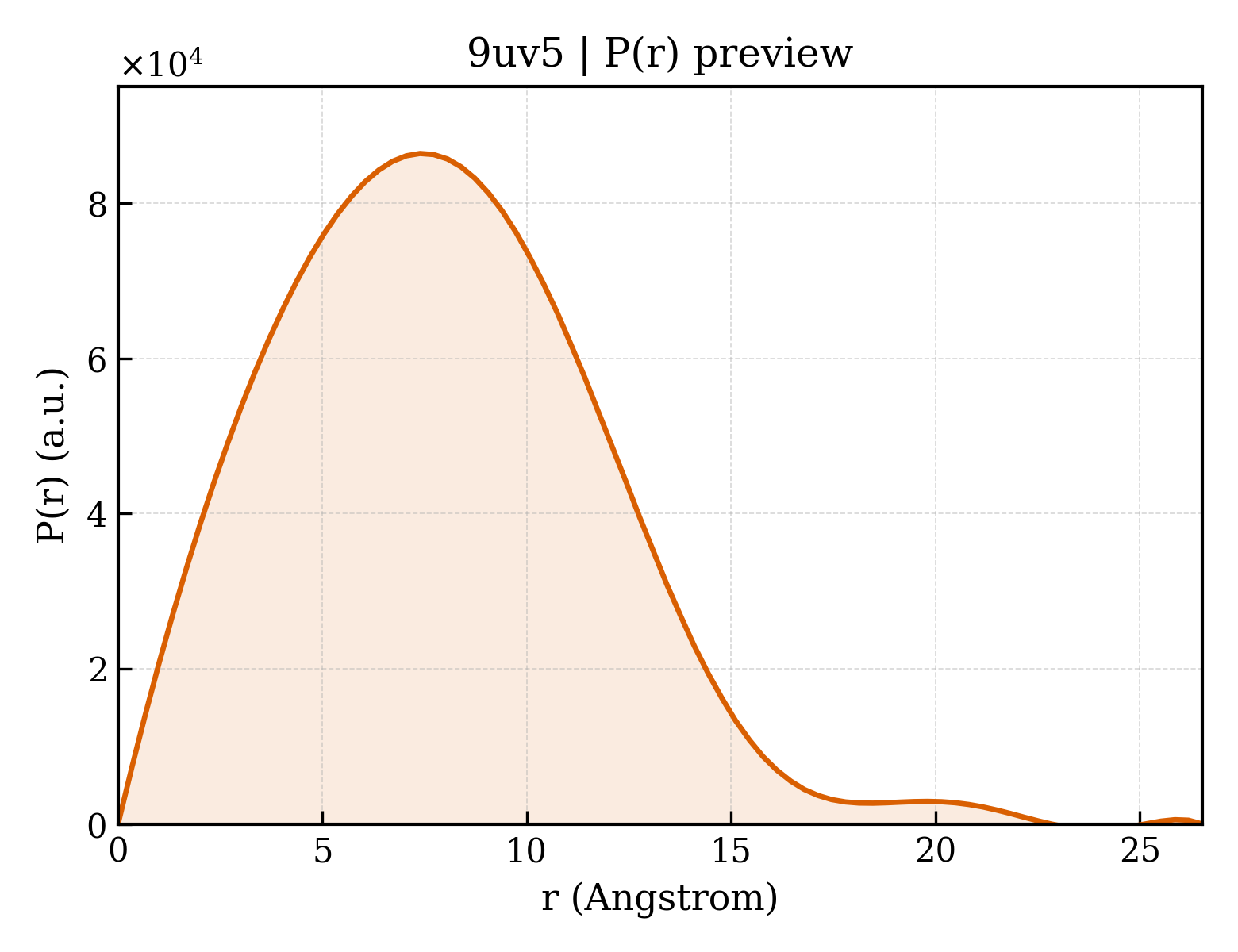

P(r) Distribution
1. Structure Basics
| entry_id | 9uv5 |
| deposition_date | 2025-05-09 |
| title | ligament intra-crystalline peptide (LICP) |
| keywords | biomineral protein, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.12 Å |
| rg_electron | 6.56 Å |
| i0 | 11010900.00 |
| molecular_weight | 24083.0 kDa |
| excluded_volume | 28370 ų |
| envelope_volume | 3396 ų |
| shell_volume | 4232 ų |
| envelope_diameter | 26.1 Å |
| shell_rg | 12.16 Å |
| envelope_rg | 8.11 Å |
| shape_rg | 6.54 Å |
| total_rg | 6.92 Å |
| total_atoms | 2960 |
| n_residues | 180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 26.5 Å |
| rg_real | 6.16 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.1010e+07 |
| i0_real_error | 1.1570e+05 |
| rg_reciprocal | 6.16 Å |
| i0_reciprocal | 11010000.0000 |
| total_estimate | 0.7316 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 7.4 Å |
| skewness | 0.435 |
| kurtosis | 0.111 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 882.3000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.447; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.256; Smooth: 0.910 |
