9uv6

Encounter complex structure of E2N and Ubiquitin

Method: SOLUTION NMR Dmax: 86.0 Å Quality: GOOD

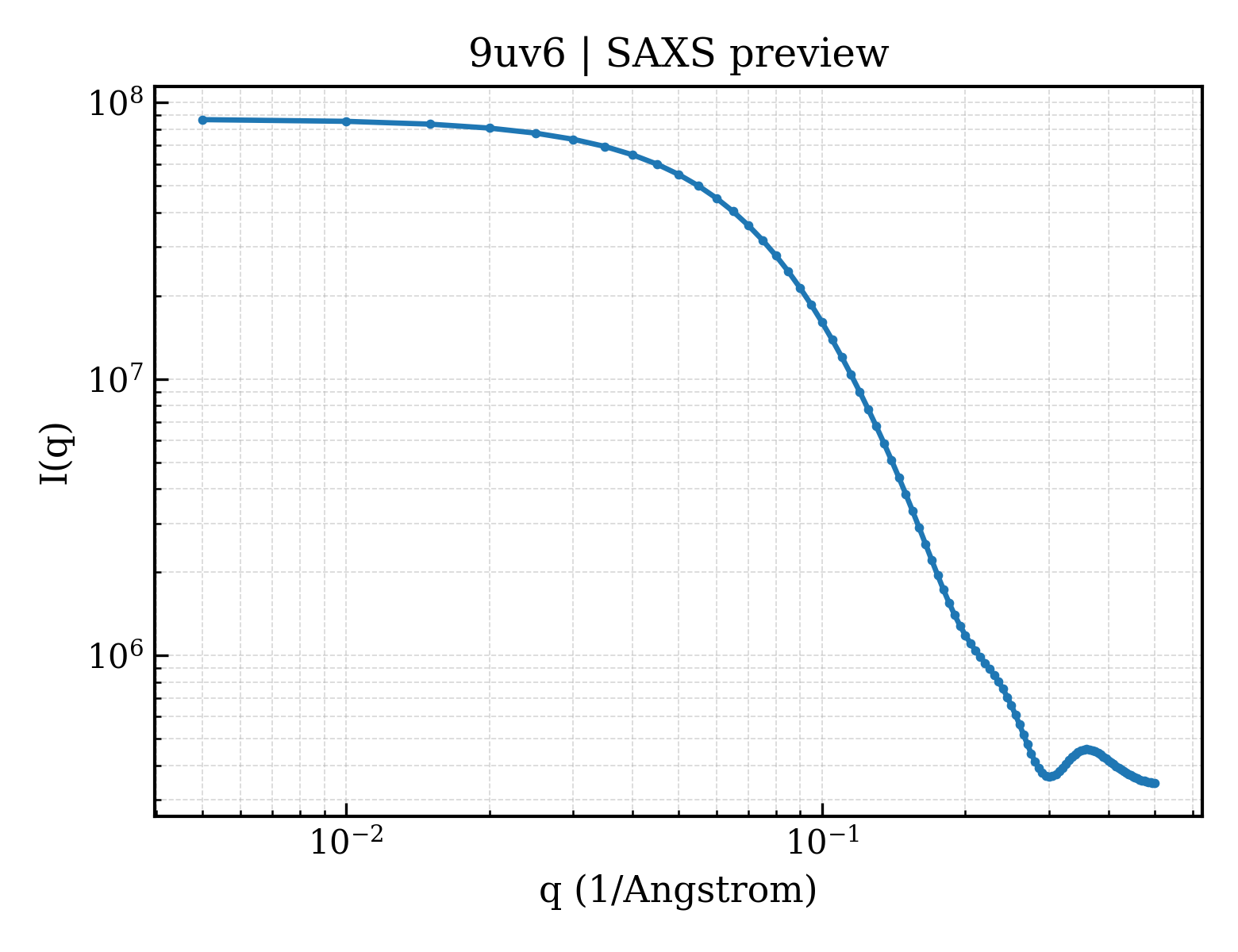

SAXS Profile

SAXS profile for 9uv6

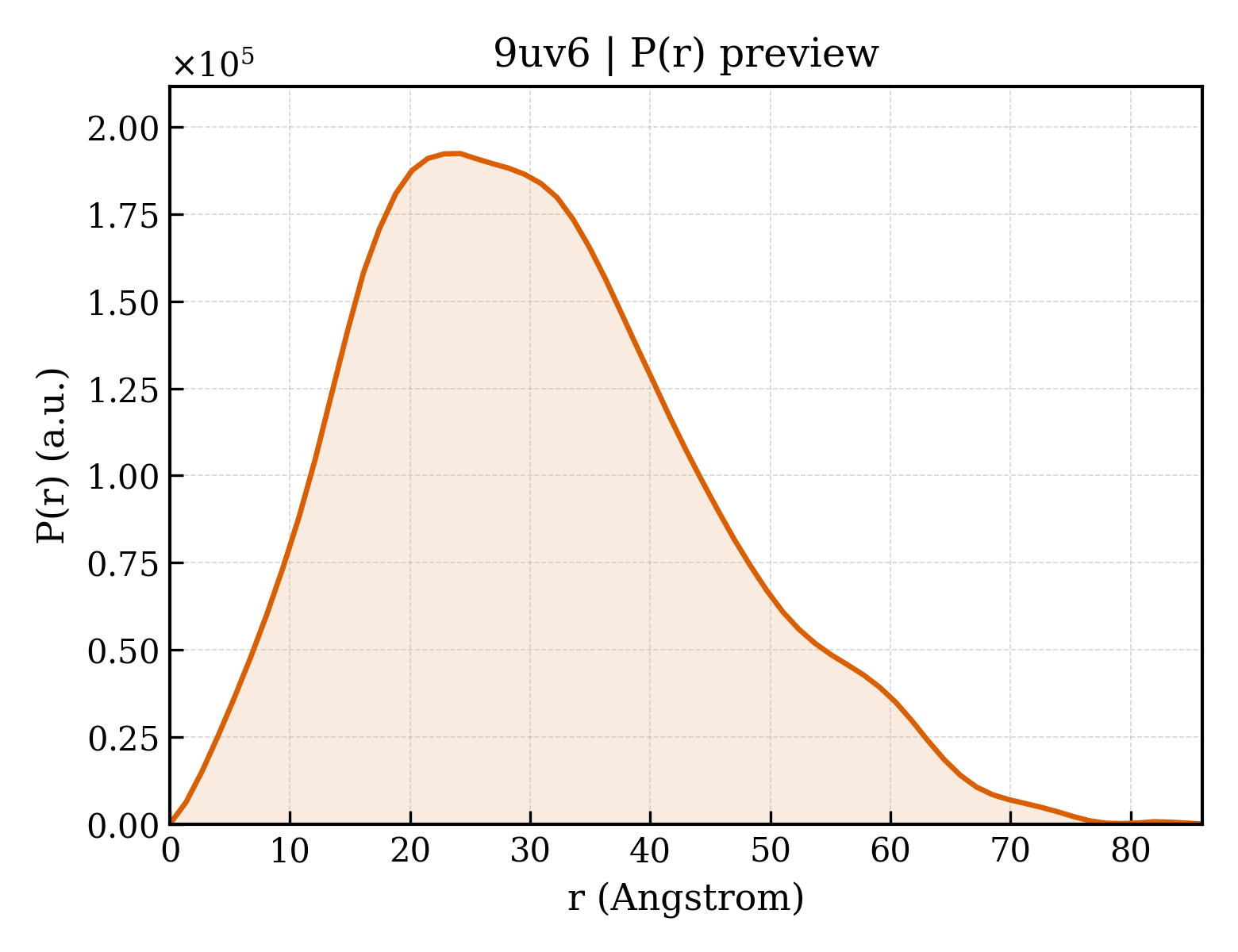

P(r) Distribution

P(r) distribution for 9uv6

1. Structure Basics

entry_id9uv6
deposition_date2025-05-09
last_revision2025-07-23
titleEncounter complex structure of E2N and Ubiquitin
keywordsEnzyme, ubiquitin, encounter complex, PROTEIN BINDING; PROTEIN BINDING
methodSOLUTION NMR

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier23.62
rg_electron22.77
i087158000.00
molecular_weight77144.0 kDa
excluded_volume97557 ų
envelope_volume74038 ų
shell_volume25539 ų
envelope_diameter90.8
shell_rg31.32
envelope_rg25.38
shape_rg22.76
total_rg23.51
total_atoms10956
n_residues672
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax86.0
rg_real23.74
rg_real_error0.91
i0_real8.7160e+07
i0_real_error1.2740e+06
rg_reciprocal23.71
i0_reciprocal87160000.0000
total_estimate0.8234
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary24.2
skewness0.485
kurtosis-0.183
angular_range— – 0.3350 −1
current_alpha0.0000
highest_alpha3846000.0000
n_real_points65
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.660; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.759; Smooth: 0.980

4. Crystallography & Experiment

5. Entities & Polymer Info (3)

6. Citations (1)

7. Files & Curves (10)
