9uvh
Cystal Structure of Shark VNAR Nanobody

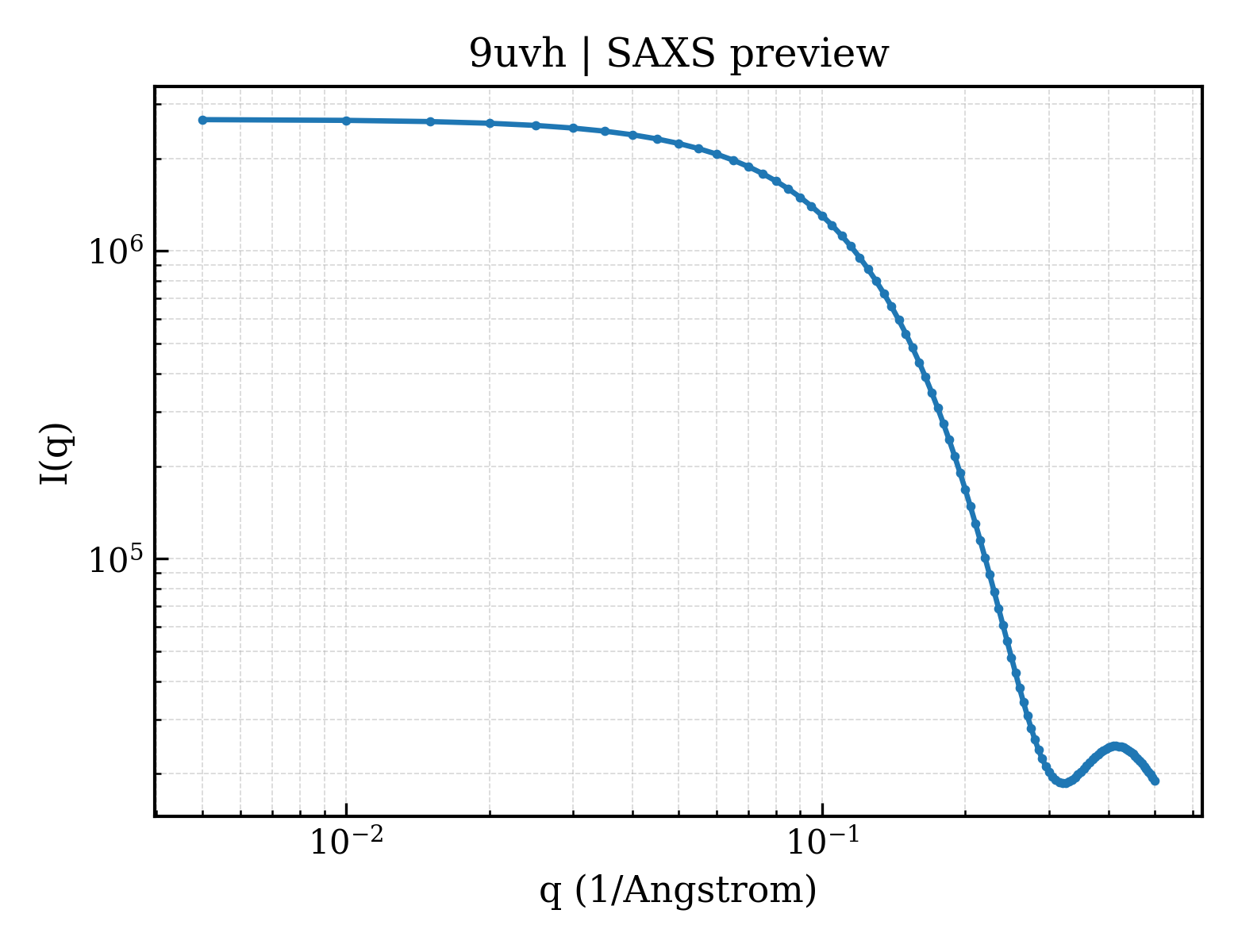

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9uvh |
| deposition_date | 2025-05-10 |
| title | Cystal Structure of Shark VNAR Nanobody |
| keywords | Shark VNAR Nanobody, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.70 Å |
| rg_electron | 13.65 Å |
| i0 | 2677400.00 |
| molecular_weight | 11119.0 kDa |
| excluded_volume | 13798 ų |
| envelope_volume | 15580 ų |
| shell_volume | 10199 ų |
| envelope_diameter | 54.1 Å |
| shell_rg | 18.76 Å |
| envelope_rg | 14.15 Å |
| shape_rg | 13.67 Å |
| total_rg | 14.72 Å |
| total_atoms | 783 |
| n_residues | 103 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.6 Å |
| rg_real | 14.70 Å |
| rg_real_error | 0.49 Å |
| i0_real | 2.6770e+06 |
| i0_real_error | 3.4060e+04 |
| rg_reciprocal | 14.70 Å |
| i0_reciprocal | 2677000.0000 |
| total_estimate | 0.7442 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 17.0 Å |
| skewness | 0.408 |
| kurtosis | -0.050 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 695000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.594; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.895; Smooth: 0.000 |
