SAXSdb — 9uwq

▼

1. Structure Basics

entry_id	9uwq
deposition_date	2025-05-12
title	A combined Cryo_EM structure of Cagrilintide-AMY1R-Gs complex
keywords	GPCR, Cagrilintid, AMY1R, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.48 Å
rg_electron	42.16 Å
i0	239939000.00
molecular_weight	126110.0 kDa
excluded_volume	157590 Å³
envelope_volume	223480 Å³
shell_volume	47067 Å³
envelope_diameter	153.0 Å
shell_rg	43.45 Å
envelope_rg	43.19 Å
shape_rg	42.23 Å
total_rg	42.01 Å
total_atoms	8883
n_residues	1145
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	143.0 Å
rg_real	42.98 Å
rg_real_error	1.66 Å
i0_real	2.3990e+08
i0_real_error	4.5510e+06
rg_reciprocal	42.48 Å
i0_reciprocal	239800000.0000
total_estimate	0.7792
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.8 Å
skewness	0.594
kurtosis	-0.361
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	40040000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.699; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.730; Smooth: 0.297

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Guanine nucleotide-binding protein g(s) subunit alpha
formula_weight	41879.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	8883

MGCTLSAEDKAAVERSKMIEKQLQKDKQVYRATHRLLLLGADNSGKSTIVKQMRIYHVNGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTSGIFETKFQVDKVNFHMFDVGAQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCSVDTENARRIFNDCRDIIQRMHLRQYELL

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	39728.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWNGSSGGGGSGGGGSSGVSGWRLFKKIS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Cagrilintide
formula_weight	3962.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

KCNTATCATQRLAEFLRHSSNNFGPILPPTNVGSNTP

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Receptor activity-modifying protein 1
formula_weight	13971.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

CQEANYGALLRELCLTQFQVDMEAVGETLWCDWGRTIRSYRELADCTWHMAEKLGCFWPNAEVDRFFLAVHGRYFRSCPISGRAVRDPPGSILYPFIVVPITVTLLVTALVVWQSKRTEGIV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 6 polymer

description	Calcitonin receptor
formula_weight	52616.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

AFSNQTYPTIEPKPFLYVVGRKKMMDAQYKCYDRMQQLPAYQGEGPYCNRTWDGWLCWDDTPAGVLSYQFCPDYFPDFDPSEKVTKYCDEKGVWFKHPENNRTWSNYTMCNAFTPEKLKNAYVLYYLAIVGHSLSIFTLVISLGIFVFFRSLGCQRVTLHKNMFLTYILNSMIIIIHLVEVVPNGELVRRDPVSCKILHFFHQYMMACNYFWMLCEGIYLHTLIVVAVFTEKQRLRWYYLLGWGFPLVPTTIHAITRAVYFNDNCWLSVETHLLYIIHGPVMAALVVNFFFLLNIVRVLVTKMRETHEAESHMYLKAVKATMILVPLLGIQFVVFPWRPSNKMLGKIYDYVMHSLIHFQGFFVATIYCFCNNEVQTTVKRQWAQFKIQWNQRWGRRPSNRSARAAAAAAEAGDIPIYICHQELRNEPANNQGEESAEIIPLNIIEQESSA

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.100 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.10 Å
resolution_method	—
num_particles	145451

fit	/app/data/saxs_computation/uw/9uwq/9uwq.fit
pddf	/app/data/pr_computation/uw/9uwq/9uwq.pr.out
profile	/app/data/saxs_computation/uw/9uwq/9uwq.dat

A combined Cryo_EM structure of Cagrilintide-AMY1R-Gs complex

SAXS Profile

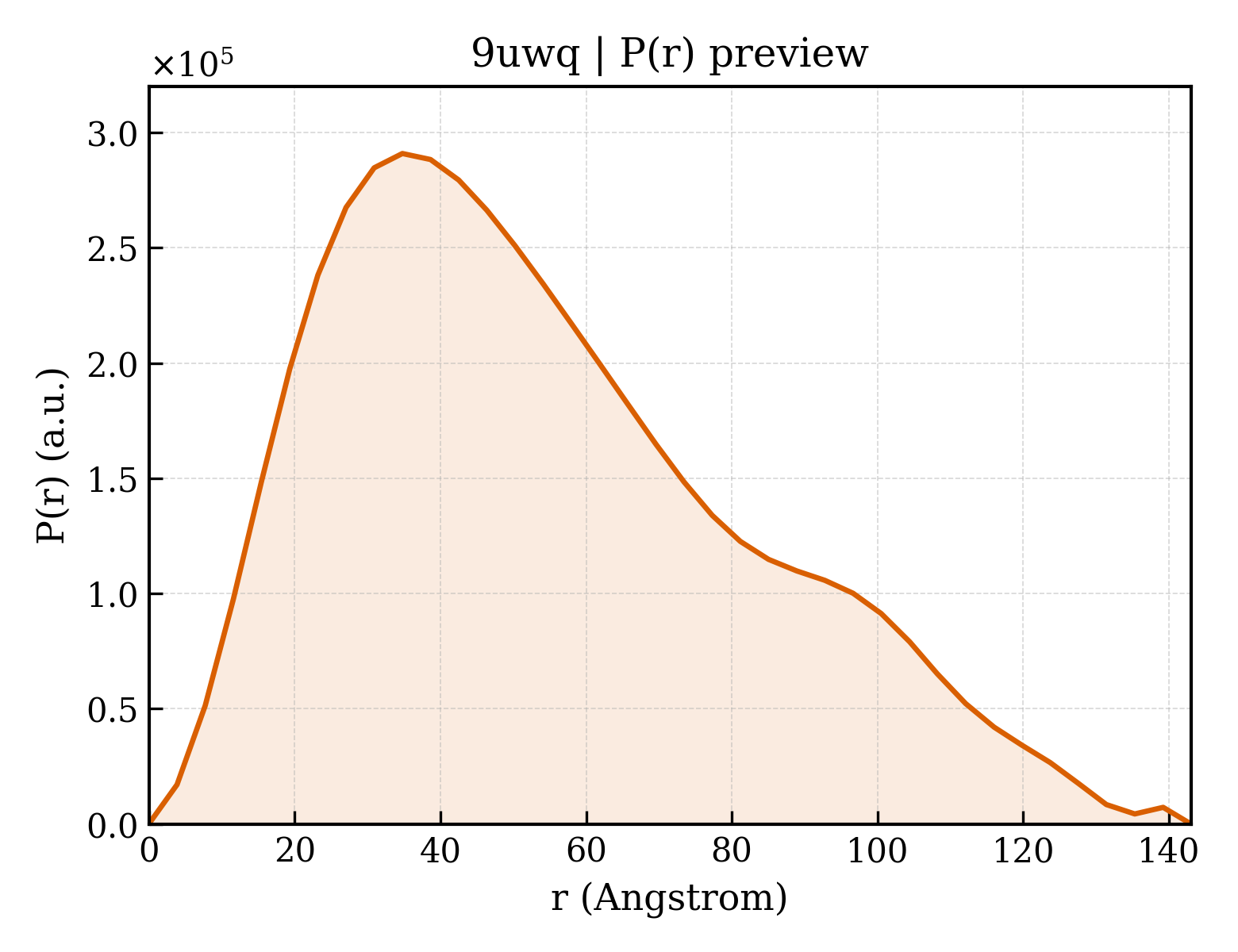

P(r) Distribution
