9uyt
DNA duplex containing gold-mediated 2-thio-cytosine base pairs

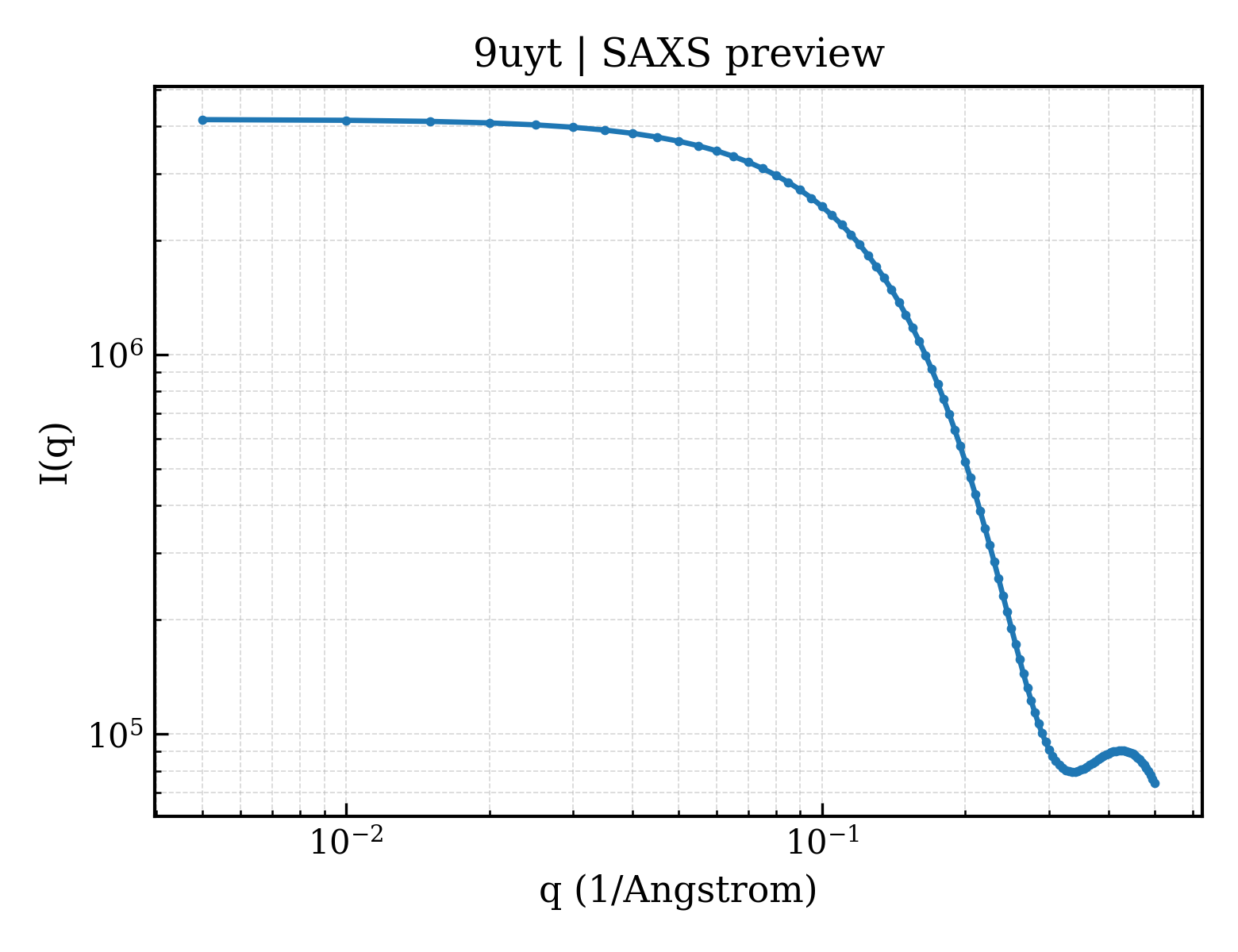

SAXS Profile

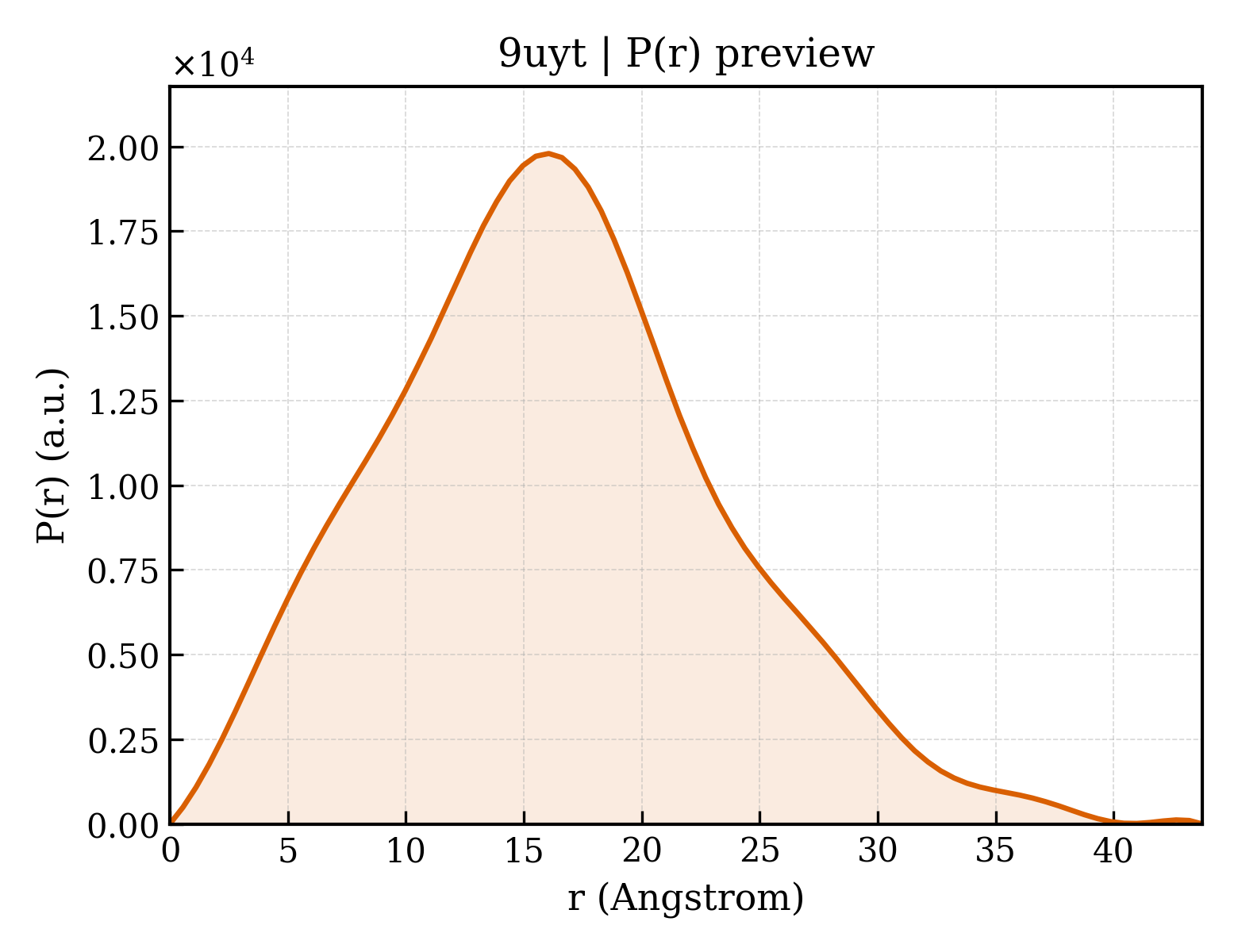

P(r) Distribution
1. Structure Basics
| entry_id | 9uyt |
| deposition_date | 2025-05-15 |
| title | DNA duplex containing gold-mediated 2-thio-cytosine base pairs |
| keywords | DNA, gold; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.59 Å |
| rg_electron | 12.14 Å |
| i0 | 4171320.00 |
| molecular_weight | 7487.0 kDa |
| excluded_volume | 5661 ų |
| envelope_volume | 9531 ų |
| shell_volume | 7330 ų |
| envelope_diameter | 42.7 Å |
| shell_rg | 16.63 Å |
| envelope_rg | 12.24 Å |
| shape_rg | 12.23 Å |
| total_rg | 12.67 Å |
| total_atoms | 490 |
| n_residues | 20 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.8 Å |
| rg_real | 12.59 Å |
| rg_real_error | 0.33 Å |
| i0_real | 4.1710e+06 |
| i0_real_error | 4.1060e+04 |
| rg_reciprocal | 12.59 Å |
| i0_reciprocal | 4171000.0000 |
| total_estimate | 0.8425 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.1 Å |
| skewness | 0.346 |
| kurtosis | -0.054 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 87190.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.669; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.973 |
