9v4y
Crystal structure of Guanine-II riboswitch in complex with 8-aminoguanine

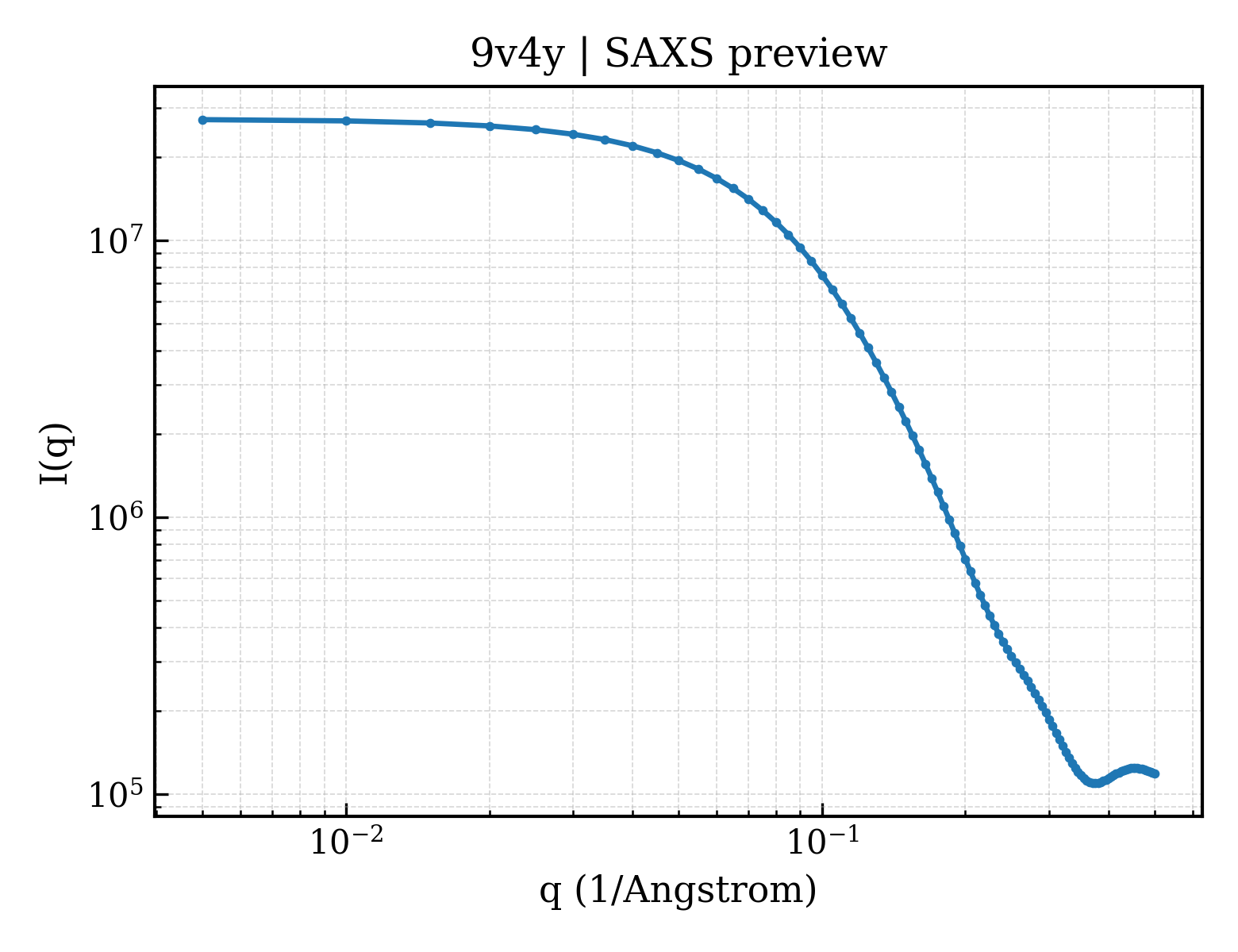

SAXS Profile

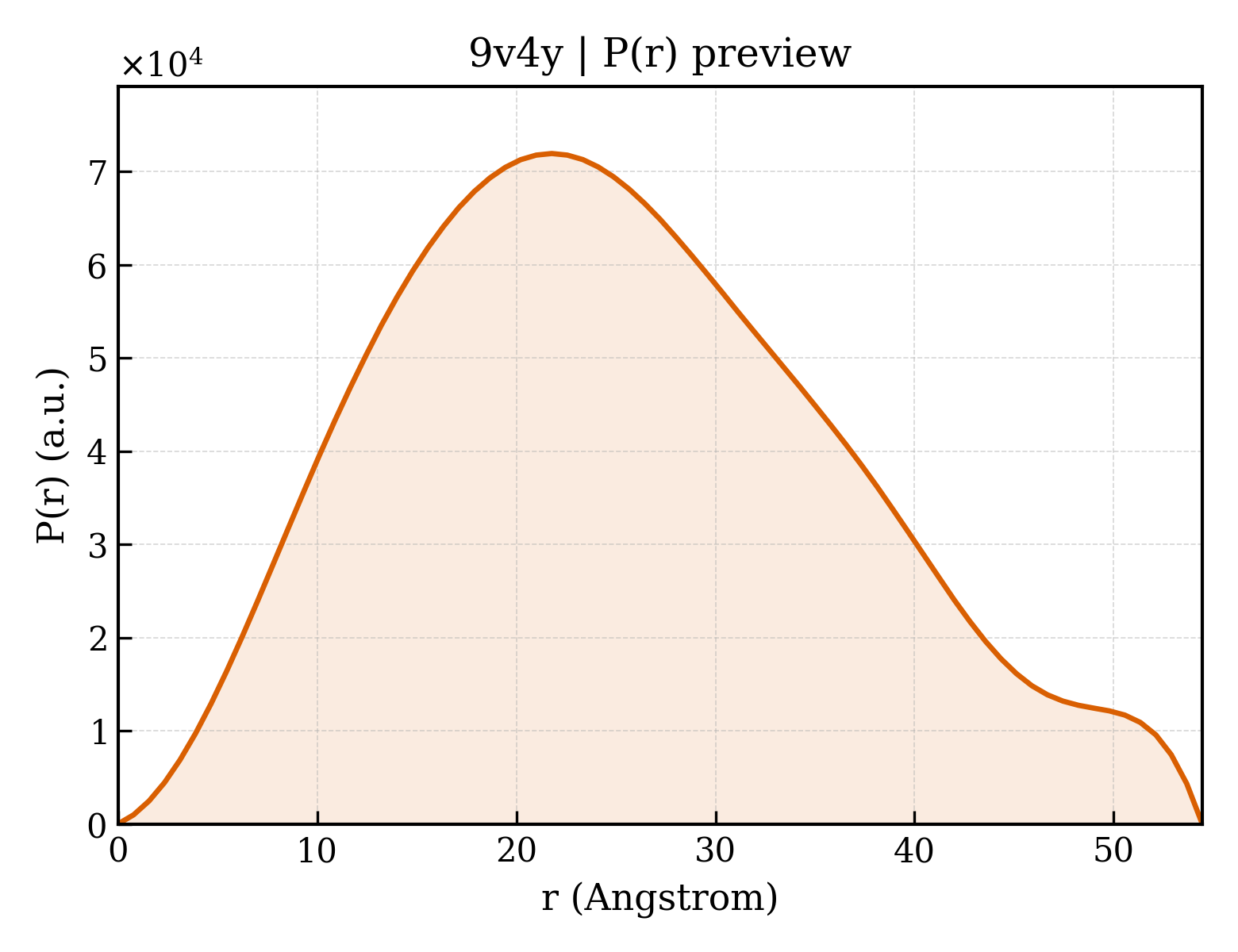

P(r) Distribution
1. Structure Basics
| entry_id | 9v4y |
| deposition_date | 2025-05-24 |
| last_revision | 2025-11-26 |
| title | Crystal structure of Guanine-II riboswitch in complex with 8-aminoguanine |
| keywords | guanine riboswitch, RNA; RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.33 Å |
| rg_electron | 20.06 Å |
| i0 | 27388800.00 |
| molecular_weight | 23276.0 kDa |
| excluded_volume | 21696 ų |
| envelope_volume | 32605 ų |
| shell_volume | 15124 ų |
| envelope_diameter | 72.9 Å |
| shell_rg | 24.45 Å |
| envelope_rg | 19.70 Å |
| shape_rg | 19.97 Å |
| total_rg | 20.57 Å |
| total_atoms | 1536 |
| n_residues | 71 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.5 Å |
| rg_real | 19.36 Å |
| rg_real_error | 0.08 Å |
| i0_real | 2.6200e+07 |
| i0_real_error | 2.4850e+05 |
| rg_reciprocal | 20.42 Å |
| i0_reciprocal | 27390000.0000 |
| total_estimate | 0.6864 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 21.8 Å |
| skewness | 0.321 |
| kurtosis | -0.481 |
| angular_range | — – 0.3900 Å−1 |
| current_alpha | 3.1170 |
| highest_alpha | 1798000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.993; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000 |
