9v5n

Crystal structure of anti HIV scFv against MPER region

Method: X-RAY DIFFRACTION Dmax: 113.3 Å Quality: GOOD

SAXS Profile

SAXS profile for 9v5n

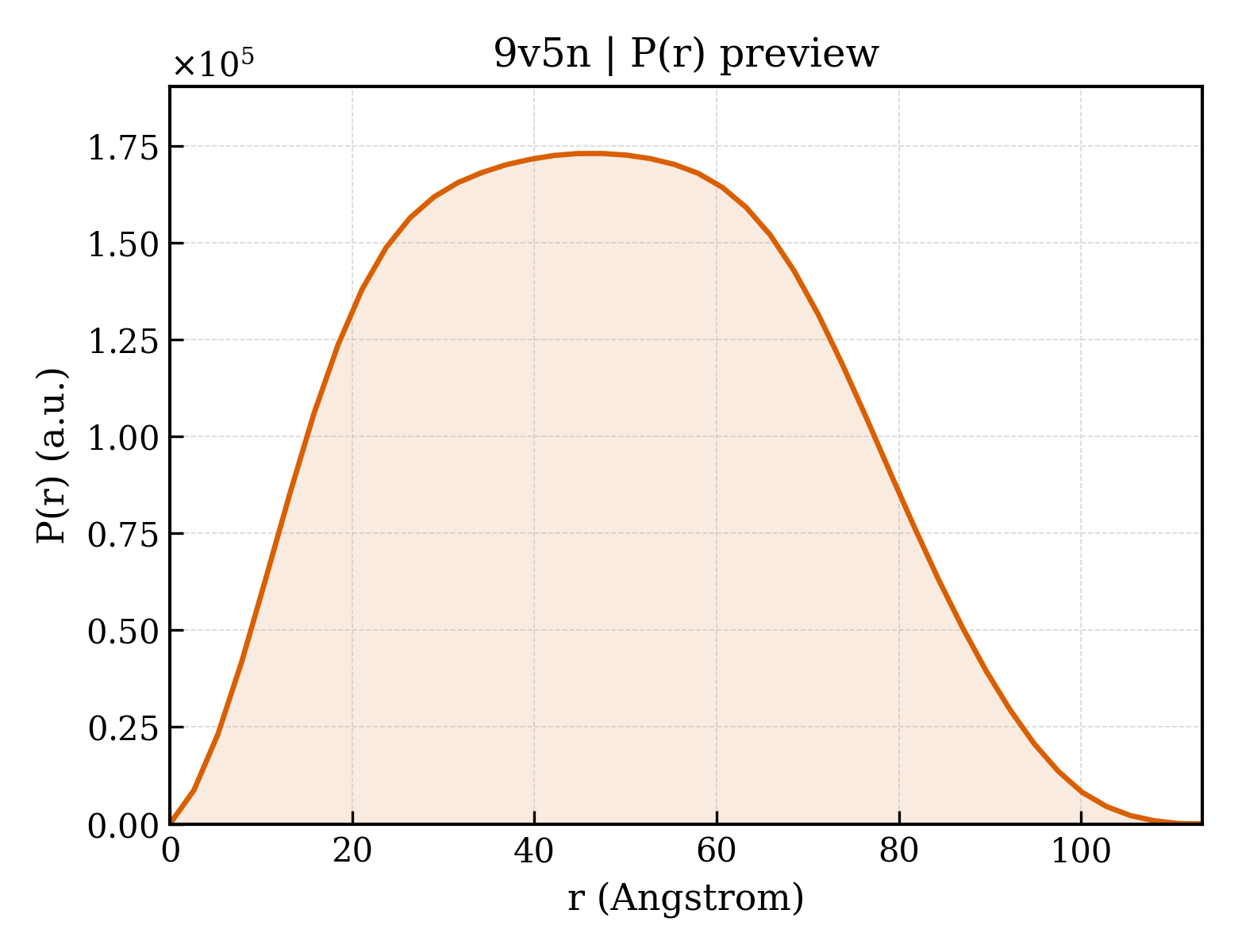

P(r) Distribution

P(r) distribution for 9v5n
▼

1. Structure Basics

entry_id9v5n
deposition_date2025-05-26
last_revision2026-06-03
titleCrystal structure of anti HIV scFv against MPER region
keywordsscFv, phage display library, HIV, MPER, immune system; IMMUNE SYSTEM
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier37.11 Å
rg_electron36.52 Å
i0142608000.00
molecular_weight92253.0 kDa
excluded_volume113650 ų
envelope_volume155560 ų
shell_volume36106 ų
envelope_diameter115.4 Å
shell_rg41.76 Å
envelope_rg35.64 Å
shape_rg36.48 Å
total_rg37.00 Å
total_atoms6491
n_residues888
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax113.3 Å
rg_real37.07 Å
rg_real_error0.75 Å
i0_real1.4260e+08
i0_real_error2.2040e+06
rg_reciprocal37.10 Å
i0_reciprocal142600000.0000
total_estimate0.8787
solution_quality GOOD a GOOD solution
n_peaks0
r_peak_primary— Å
skewness0.135
kurtosis-0.774
angular_range— – 0.2150 Å−1
current_alpha0.0000
highest_alpha8906000.0000
n_real_points44
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.983; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.509
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
