9v6m
Insights into a Versatile PET-degrading Enzyme TmFae-PETase : From Molecular Mechanism to Practical Applications
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9v6m |
| deposition_date | 2025-05-27 |
| last_revision | 2026-06-03 |
| title | Insights into a Versatile PET-degrading Enzyme TmFae-PETase : From Molecular Mechanism to Practical Applications |
| keywords | PET hydrolase; Structure; Mutation; Lignin, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.79 Å |
| rg_electron | 25.09 Å |
| i0 | 43144700.00 |
| molecular_weight | 51525.0 kDa |
| excluded_volume | 64828 ų |
| envelope_volume | 78242 ų |
| shell_volume | 26227 ų |
| envelope_diameter | 82.0 Å |
| shell_rg | 32.09 Å |
| envelope_rg | 24.91 Å |
| shape_rg | 25.08 Å |
| total_rg | 25.98 Å |
| total_atoms | 3638 |
| n_residues | 468 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

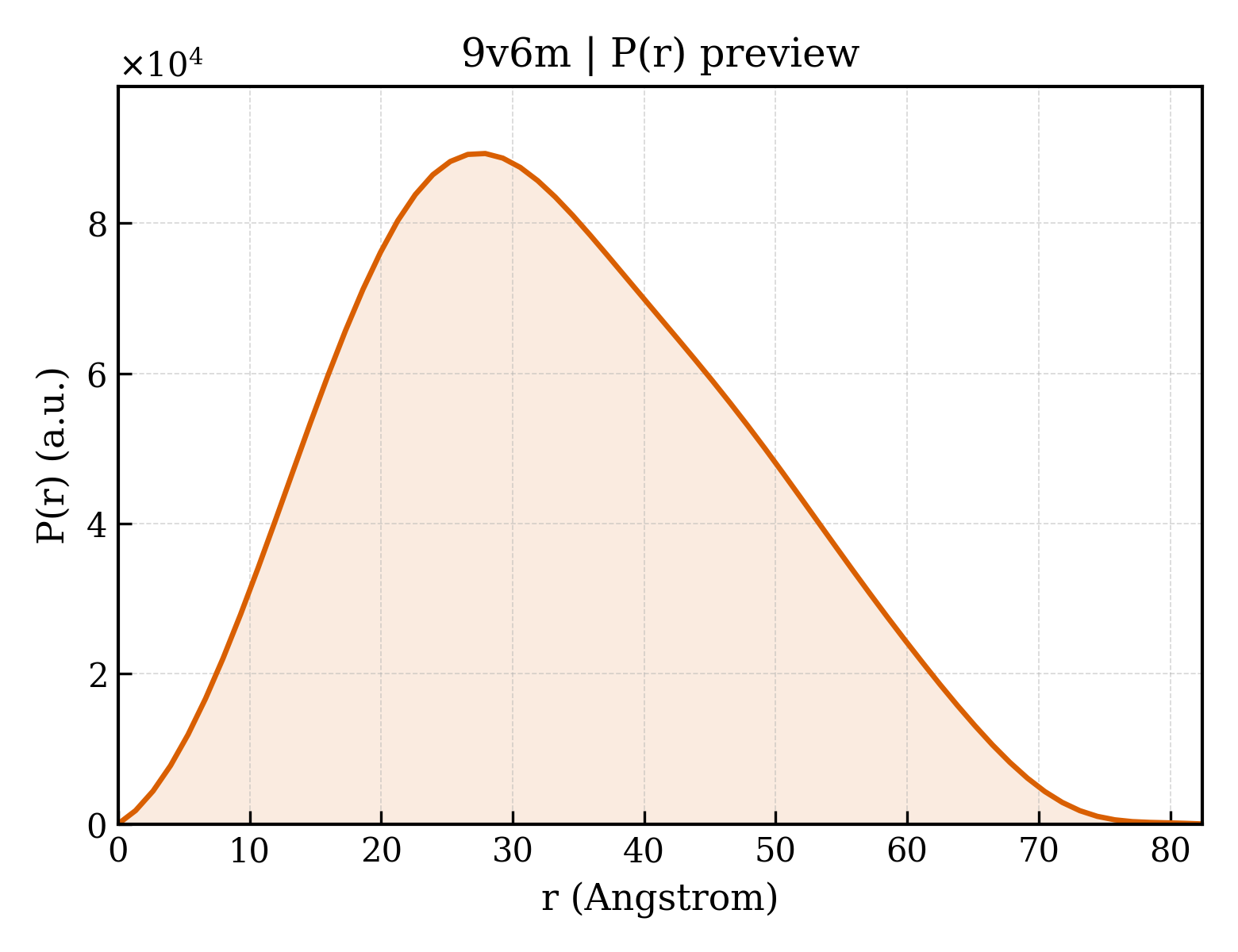

3. P(r) Analysis (GNOM)
| dmax | 82.4 Å |
| rg_real | 25.77 Å |
| rg_real_error | 0.46 Å |
| i0_real | 4.3140e+07 |
| i0_real_error | 5.7790e+05 |
| rg_reciprocal | 25.78 Å |
| i0_reciprocal | 43140000.0000 |
| total_estimate | 0.9032 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 27.9 Å |
| skewness | 0.297 |
| kurtosis | -0.544 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 8335000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.920; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.984 |
