9v77
Insights into a Versatile PET-degrading Enzyme TmFae-PETase : From Molecular Mechanism to Practical Applications
SAXS Profile

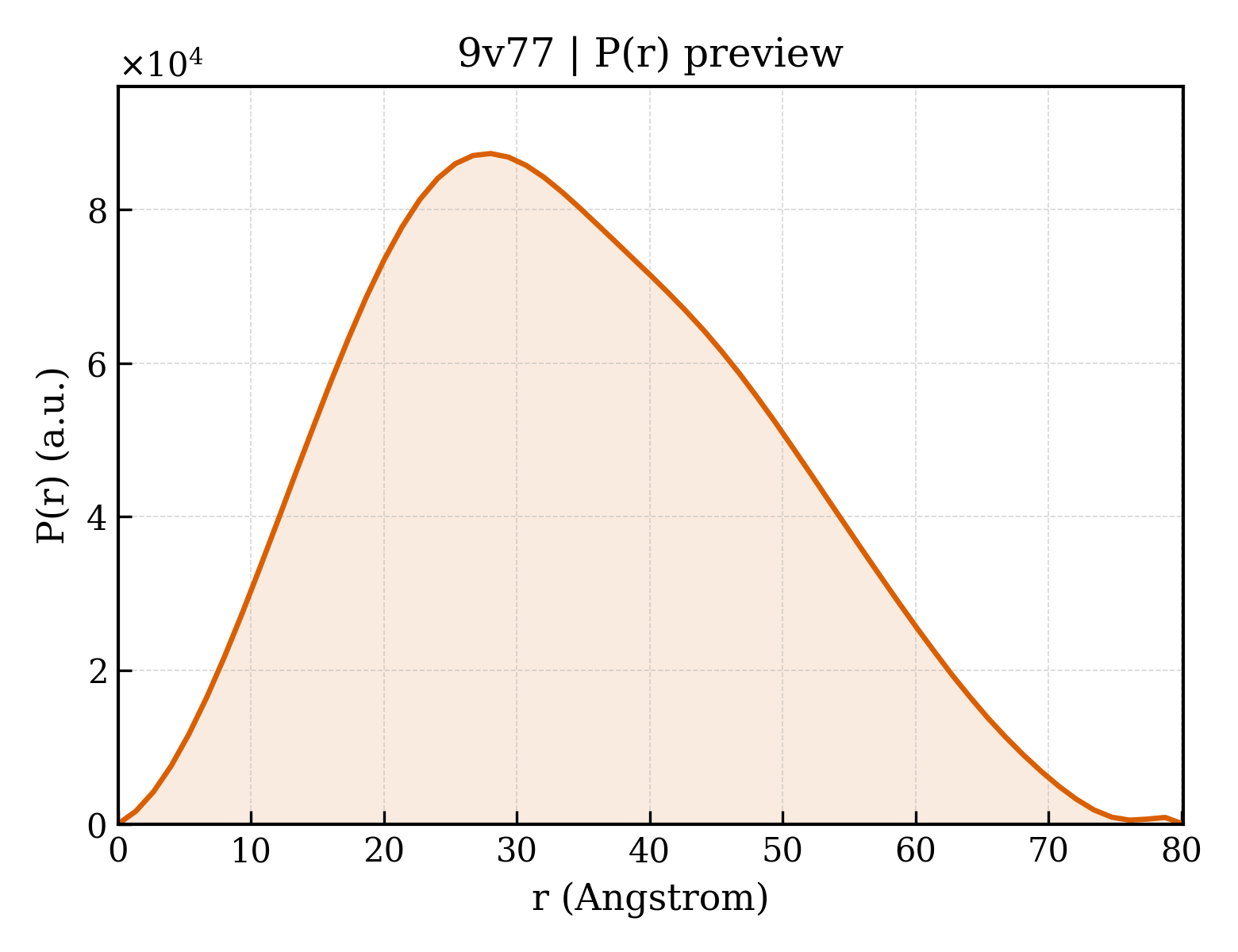

P(r) Distribution
1. Structure Basics
| entry_id | 9v77 |
| deposition_date | 2025-05-27 |
| last_revision | 2026-06-03 |
| title | Insights into a Versatile PET-degrading Enzyme TmFae-PETase : From Molecular Mechanism to Practical Applications |
| keywords | PET hydrolase; Structure; Mutation; Lignin, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.24 Å |
| rg_electron | 25.50 Å |
| i0 | 43370200.00 |
| molecular_weight | 51611.0 kDa |
| excluded_volume | 64895 ų |
| envelope_volume | 79864 ų |
| shell_volume | 26291 ų |
| envelope_diameter | 82.4 Å |
| shell_rg | 32.59 Å |
| envelope_rg | 25.25 Å |
| shape_rg | 25.49 Å |
| total_rg | 26.39 Å |
| total_atoms | 3644 |
| n_residues | 470 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.1 Å |
| rg_real | 26.21 Å |
| rg_real_error | 0.50 Å |
| i0_real | 4.3370e+07 |
| i0_real_error | 6.0650e+05 |
| rg_reciprocal | 26.22 Å |
| i0_reciprocal | 43370000.0000 |
| total_estimate | 0.9109 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 28.0 Å |
| skewness | 0.267 |
| kurtosis | -0.573 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7710000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.968; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.939 |
