9v7s

Structure of the Argonaute protein from Verrucomicrobia bacterium in complex with guide DNA and target RNA

Method: ELECTRON MICROSCOPY D_max: 114.2 Å Quality: EXCELLENT

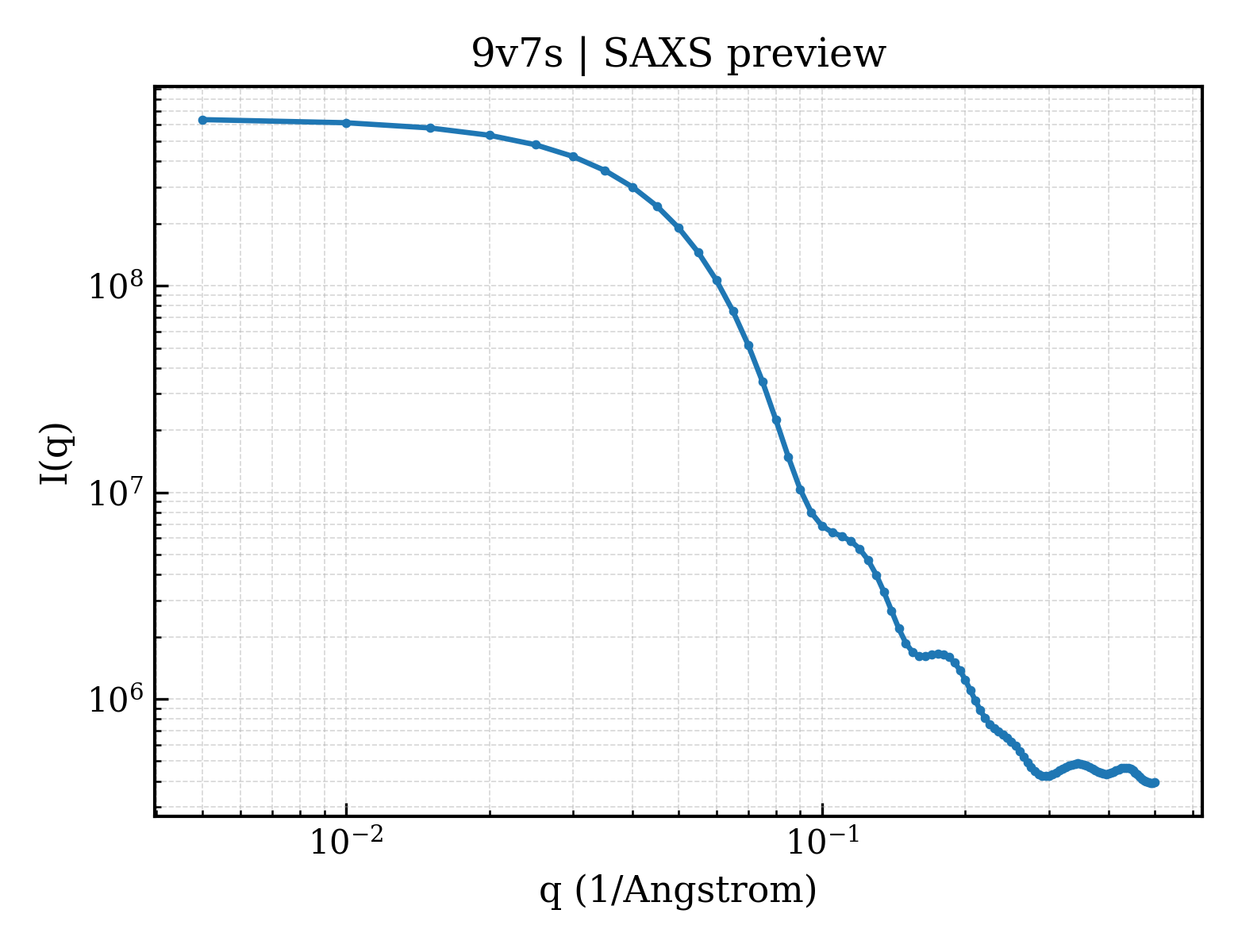

SAXS Profile

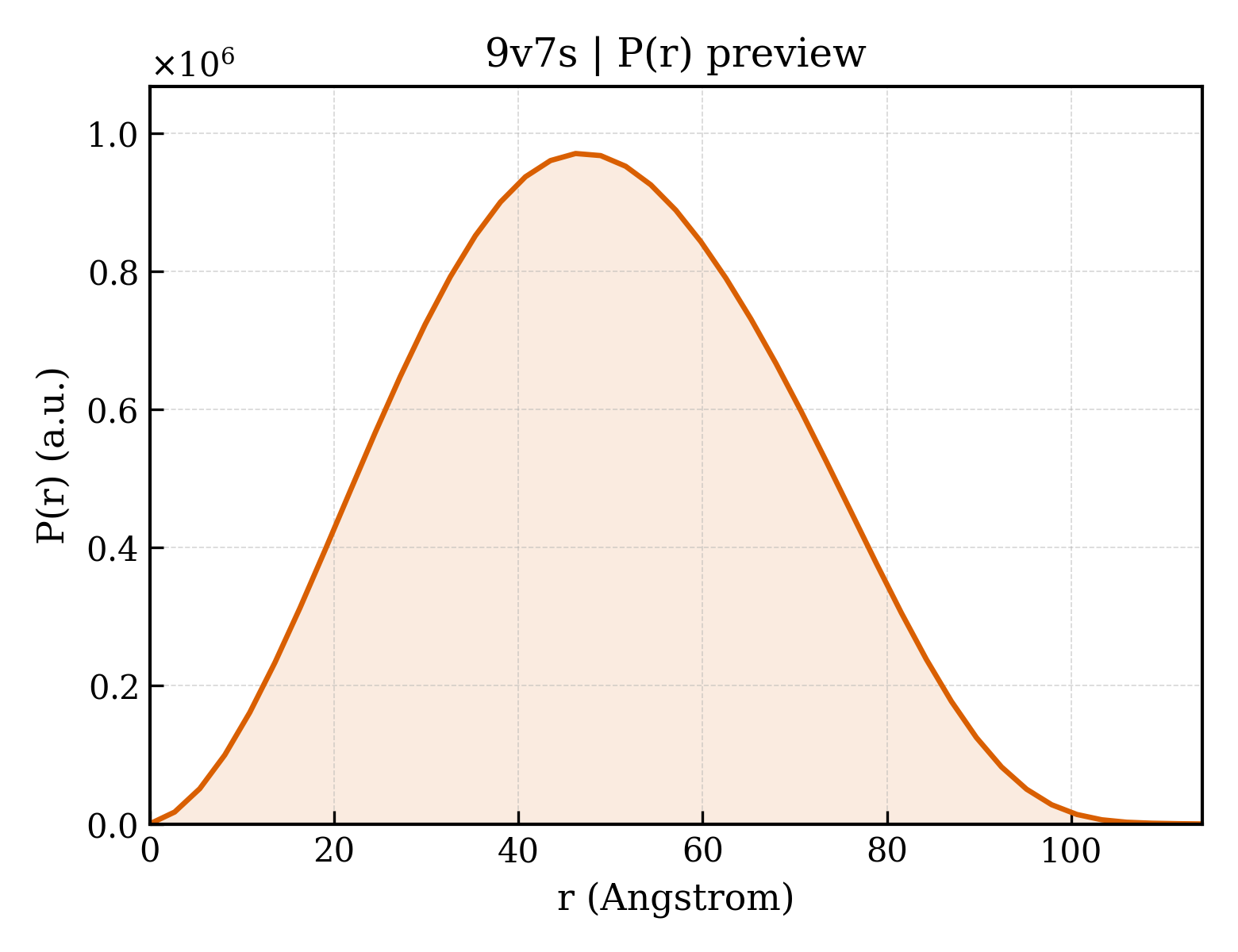

P(r) Distribution

▼

1. Structure Basics

entry_id	9v7s
deposition_date	2025-05-28
title	Structure of the Argonaute protein from Verrucomicrobia bacterium in complex with guide DNA and target RNA
keywords	Mesophilic prokaryotic Argonaute, RNA BINDING PROTEIN/DNA/RNA, RNA BINDING PROTEIN-DNA-RNA complex; RNA BINDING PROTEIN/DNA/RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.39 Å
rg_electron	37.08 Å
i0	643933000.00
molecular_weight	191350.0 kDa
excluded_volume	233150 Å³
envelope_volume	322680 Å³
shell_volume	68914 Å³
envelope_diameter	119.7 Å
shell_rg	46.13 Å
envelope_rg	36.23 Å
shape_rg	37.11 Å
total_rg	37.52 Å
total_atoms	13413
n_residues	1577
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	114.2 Å
rg_real	37.12 Å
rg_real_error	0.48 Å
i0_real	6.4390e+08
i0_real_error	1.0400e+07
rg_reciprocal	37.29 Å
i0_reciprocal	644000000.0000
total_estimate	0.9024
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	46.2 Å
skewness	0.097
kurtosis	-0.572
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0001
highest_alpha	135100000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.949

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	VbAgo-DM
formula_weight	88375.3 kDa
mutation	D550A/D617A
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,a
atom_count	13421

MSEKQLGATLFPITGLPAQAFRLRVLRVRETIPMDTQTPVRLNRWATQLWKELKQAVVPTGRFEWPAFLTPDVESLTVGRVLTVQDVPDREYSIEVIGETVEVNPASASSEELQLAGEMIKRAISDAFGRNSDKYWRKHWNLYFRLEPENLQDRRDRVFAYRGLKFSVVFLGDKPWLAADILTTYHGQHALSEYSSEQRQRELHFHVSERIEADDRAMFLRDNGKIKIPCRFVGSTGKTVTQYTFPINGGQKNVREYYEQRYGIRVPENDEAVFVRDREGCDSWPVPASRLFPLFTTEYDEVRNCSVVPQMPPDERVETIRAFLNDLRDVSFAGSTLAIGHSHFQTAERSVFPAPALEFGNGQTLTVDASLPIEEGYNRYRQGKMTMLYEHGPFSSQSLPDLVLLYPDNLDRNAREKLRQRLGEEIKELCGVAPRIARQISYPLGKQPHAGAGLLAAADELVRNNDGTFLPVIVLADALREHIYDLLKRRLSSLASQCVRERTVARVARDEQAVGGSRLRNLALGILTAAGLQPWVLAKPLHYDFYMGVALLANQVIYVFVCGKGGRNVWVQRGDQLRRRGITEKIDRVQLADQFKTGVREAKRLGVPLNSLVVHRAGRWWSNEDLAITEAVAELQGDGTLSKDCQVGVVEVRKSHLPVRLFSVLNATKGSLENPMPGSHLILNNTEAILTPTGQPGRWDKQGRTAGTLLLRITRNPNGSPLDIRKIAEDAYGLTHLNWNAPDIEISLPVTIRWSDERLREIVTNPSATDDTEVEPQETCIV

Source

organism	Verrucomicrobiota bacterium
ncbi_taxonomy_id	2026799
host_organism	Escherichia coli

Entity 2 polymer

description	;DNA (5'-D(PTPGPAPGPGPTPAPGPTPAPGPGPTPTPGPTPAPT)-3') ;
formula_weight	5641.7 kDa
src_method	syn
entity_count	2

Polymer

type	polydeoxyribonucleotide
strand_id	B,b

TGAGGTAGTAGGTTGTAT

Entity 3 polymer

description	;RNA (5'-R(UPAPUPAPCPAPAPCPCPUPAPCPUPAPCPCPUPCP*A)-3') ;
formula_weight	5926.6 kDa
src_method	syn
entity_count	2

Polymer

type	polyribonucleotide
strand_id	C,c

UAUACAACCUACUACCUCA

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	nat
entity_count	2

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	8

▶

6. Citations (1)

▶

resolution	2.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.50 Å
resolution_method	—
num_particles	1016135

fit	/app/data/saxs_computation/v7/9v7s/9v7s.fit
pddf	/app/data/pr_computation/v7/9v7s/9v7s.pr.out
profile	/app/data/saxs_computation/v7/9v7s/9v7s.dat
