9v8a

Structure of the Argonaute protein from Verrucomicrobiota bacterium in complex with guide DNA and target RNA in dimeric state.

Method: ELECTRON MICROSCOPY D_max: 113.8 Å Quality: EXCELLENT

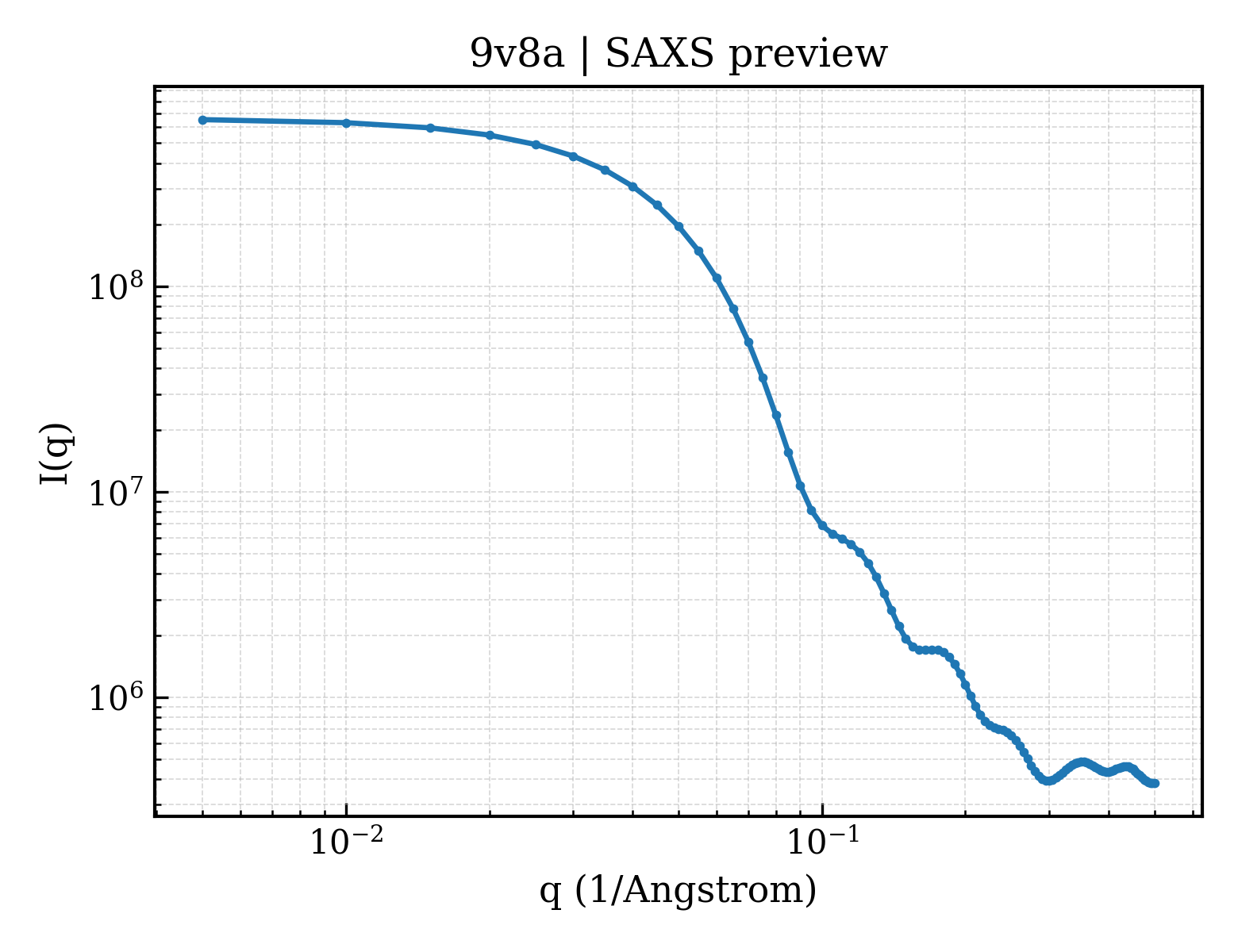

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9v8a
deposition_date	2025-05-29
title	Structure of the Argonaute protein from Verrucomicrobiota bacterium in complex with guide DNA and target RNA in dimeric state.
keywords	mesophilic prokaryotic Argonaute, RNA BINDING PROTEIN/DNA/RNA, RNA BINDING PROTEIN-DNA-RNA complex; RNA BINDING PROTEIN/DNA/RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.27 Å
rg_electron	36.98 Å
i0	658133000.00
molecular_weight	193370.0 kDa
excluded_volume	235540 Å³
envelope_volume	324150 Å³
shell_volume	69271 Å³
envelope_diameter	118.8 Å
shell_rg	46.09 Å
envelope_rg	36.24 Å
shape_rg	37.00 Å
total_rg	37.41 Å
total_atoms	13552
n_residues	1593
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	113.8 Å
rg_real	37.01 Å
rg_real_error	0.61 Å
i0_real	6.5810e+08
i0_real_error	1.0220e+07
rg_reciprocal	37.18 Å
i0_reciprocal	658200000.0000
total_estimate	0.9019
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	46.1 Å
skewness	0.108
kurtosis	-0.564
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0001
highest_alpha	144200000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.942

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	VbAgo
formula_weight	88463.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,a
atom_count	13557

MSEKQLGATLFPITGLPAQAFRLRVLRVRETIPMDTQTPVRLNRWATQLWKELKQAVVPTGRFEWPAFLTPDVESLTVGRVLTVQDVPDREYSIEVIGETVEVNPASASSEELQLAGEMIKRAISDAFGRNSDKYWRKHWNLYFRLEPENLQDRRDRVFAYRGLKFSVVFLGDKPWLAADILTTYHGQHALSEYSSEQRQRELHFHVSERIEADDRAMFLRDNGKIKIPCRFVGSTGKTVTQYTFPINGGQKNVREYYEQRYGIRVPENDEAVFVRDREGCDSWPVPASRLFPLFTTEYDEVRNCSVVPQMPPDERVETIRAFLNDLRDVSFAGSTLAIGHSHFQTAERSVFPAPALEFGNGQTLTVDASLPIEEGYNRYRQGKMTMLYEHGPFSSQSLPDLVLLYPDNLDRNAREKLRQRLGEEIKELCGVAPRIARQISYPLGKQPHAGAGLLAAADELVRNNDGTFLPVIVLADALREHIYDLLKRRLSSLASQCVRERTVARVARDEQAVGGSRLRNLALGILTAAGLQPWVLAKPLHYDFYMGVDLLANQVIYVFVCGKGGRNVWVQRGDQLRRRGITEKIDRVQLADQFKTGVREAKRLGVPLNSLVVHRDGRWWSNEDLAITEAVAELQGDGTLSKDCQVGVVEVRKSHLPVRLFSVLNATKGSLENPMPGSHLILNNTEAILTPTGQPGRWDKQGRTAGTLLLRITRNPNGSPLDIRKIAEDAYGLTHLNWNAPDIEISLPVTIRWSDERLREIVTNPSATDDTEVEPQETCIV

Source

organism	Verrucomicrobiota bacterium
ncbi_taxonomy_id	2026799
host_organism	Escherichia coli

Entity 2 polymer

description	;DNA (5'-D(PTPGPAPGPGPTPAPGPTPAPGPGPTPTPGPTPAPT)-3') ;
formula_weight	5641.7 kDa
src_method	syn
entity_count	2

Polymer

type	polydeoxyribonucleotide
strand_id	B,b

TGAGGTAGTAGGTTGTAT

Entity 3 polymer

description	;RNA (5'-R(UPAPUPAPCPAPAPCPCPUPAPCPUPAPCPCPUPCP*A)-3') ;
formula_weight	5926.6 kDa
src_method	syn
entity_count	2

Polymer

type	polyribonucleotide
strand_id	C,c

UAUACAACCUACUACCUCA

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	6

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

resolution	2.660 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.66 Å
resolution_method	—
num_particles	125387

fit	/app/data/saxs_computation/v8/9v8a/9v8a.fit
pddf	/app/data/pr_computation/v8/9v8a/9v8a.pr.out
profile	/app/data/saxs_computation/v8/9v8a/9v8a.dat
