SAXSdb — 9vat

▼

1. Structure Basics

entry_id	9vat
deposition_date	2025-06-04
title	Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Go complex in nucleotide-free C state
keywords	GPCR, NTSR1, neurotensin, G-protein, membrane protein; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.25 Å
rg_electron	38.04 Å
i0	244197000.00
molecular_weight	127440.0 kDa
excluded_volume	159750 Å³
envelope_volume	206040 Å³
shell_volume	46492 Å³
envelope_diameter	129.3 Å
shell_rg	42.25 Å
envelope_rg	37.84 Å
shape_rg	38.05 Å
total_rg	38.27 Å
total_atoms	8960
n_residues	1156
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	123.4 Å
rg_real	38.19 Å
rg_real_error	1.28 Å
i0_real	2.4420e+08
i0_real_error	4.5730e+06
rg_reciprocal	38.23 Å
i0_reciprocal	244200000.0000
total_estimate	0.9033
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	51.2 Å
skewness	0.178
kurtosis	-0.655
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0000
highest_alpha	29910000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.923

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Neurotensin receptor type 1
formula_weight	48535.1 kDa
mutation	A85L
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R
atom_count	8960

MGQPGNGSAFLLAPNRSHAPDHDVENLYFQGQRAQAGLEEALLAPGFGNASGNASERVLAAPSSELDVNTDIYSKVLVTAVYLALFVVGTVGNTVTLFTLARKKSLQSLQSTVHYHLGSLALSDLLTLLLAMPVELYNFIWVHHPWAFGDAGCRGYYFLRDACTYATALNVASLSVERYLAICHPFKAKTLMSRSRTKKFISAIWLASALLAVPMLFTMGEQNRSADGQHAGGLVCTPTIHTATVKVVIQVNTFMSFIFPMVVISVLNTIIANKLTVMVRQAAEQGQVCTVGGEHSTFSMAIEPGRVQALRHGVRVLRAVVIAFVVCWLPYHVRRLMFCYISDEQWTPFLYDFYHYFYMVTNALFYVSSTINPILYNLVSANFRHIFLATLACLCPVWRRRRKRPAFSRKADSVSSNHTLSSNATRETLYLEVLFQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	JMV449
formula_weight	763.0 kDa
src_method	syn
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

KKPYIL

Entity 3 polymer

description	Guanine nucleotide-binding protein G(o) subunit alpha
formula_weight	40100.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MGCTLSAEERAALERSKAIEKNLKEDGISAAKDVKLLLLGAGESGKSTIVKQMKIIHEDGFSGEDVKQYKPVVYSNTIQSLAAIVRAMDTLGIEYGDKERKADAKMVCDVVSRMEDTEPFSAELLSAMMRLWGDSGIQECFNRSREYQLNDSAKYYLDSLDRIGAADYQPTEQDILRTRVKTTGIVETHFTFKNLHFRLFDVGGQRSERKKWIHCFEDVTAIIFCVALSGYDQVLHEDETTNRMHESLMLFDSICNNKFFIDTSIILFLNKKDLFGEKIKKSPLTICFPEYTGPNTYEDAAAYIQAQFESKNRSPNKEIYCHMTCATDTNNIQVVFDAVTDIIIANNLRGCGLY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	39418.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MHHHHHHLEVLFQGPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 5 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 6 polymer

description	scFv16
formula_weight	27784.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAAHHHHHHHH

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Trichoplusia ni

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.370 Å
resolution_low	3.370 Å
r_factor	0.3790
r_work	0.3790
r_free	—

resolution	3.37 Å
resolution_method	—
num_particles	371296

fit	/app/data/saxs_computation/va/9vat/9vat.fit
pddf	/app/data/pr_computation/va/9vat/9vat.pr.out
profile	/app/data/saxs_computation/va/9vat/9vat.dat

Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Go complex in nucleotide-free C state

SAXS Profile

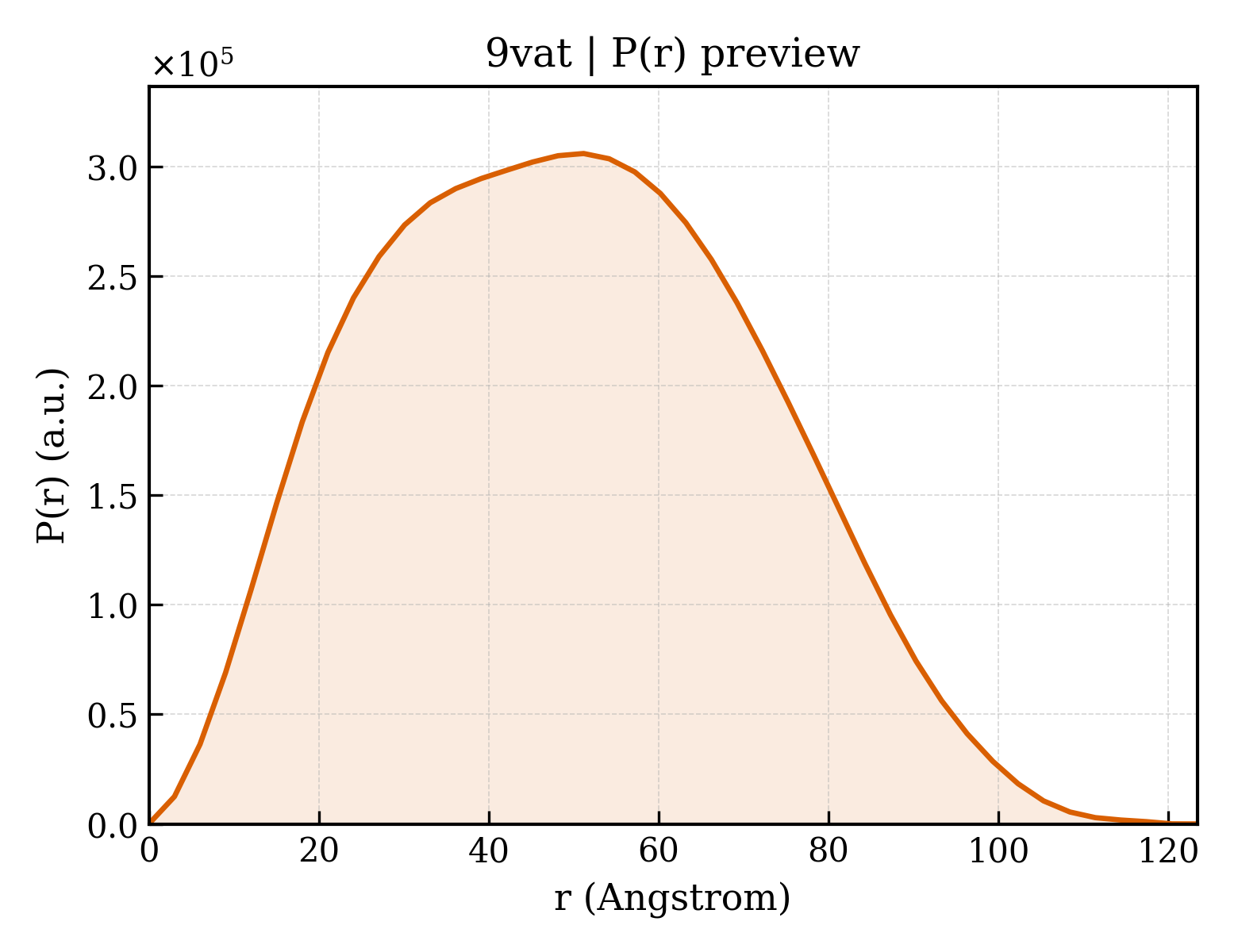

P(r) Distribution
