SAXSdb — 9vs3

▼

1. Structure Basics

entry_id	9vs3
deposition_date	2025-07-08
title	Apo structure of Ebinur lake virus polymerase
keywords	Viral protein, polymerase; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.62 Å
rg_electron	40.08 Å
i0	628884000.00
molecular_weight	211570.0 kDa
excluded_volume	267640 Å³
envelope_volume	374960 Å³
shell_volume	75814 Å³
envelope_diameter	140.2 Å
shell_rg	47.47 Å
envelope_rg	39.19 Å
shape_rg	40.07 Å
total_rg	40.51 Å
total_atoms	14876
n_residues	1833
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	129.8 Å
rg_real	40.47 Å
rg_real_error	0.94 Å
i0_real	6.2890e+08
i0_real_error	1.1250e+07
rg_reciprocal	40.62 Å
i0_reciprocal	629000000.0000
total_estimate	0.8733
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	53.3 Å
skewness	0.230
kurtosis	-0.234
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	82300000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.781

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	259757.0 kDa
ec_number	2.7.7.48
mutation	D79A,D92A
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	14876

MEDPMYEQFLQRIQAVRTATVAKDISADILEARHDYFGRELCRALDIEYRNNVLLDEIILDVYPGVNLMEYNVPHVTPANYIWTGDMLLILAYKVSVGHDSTEVTYKKYTTLILPVMQEIGINTEICIIRANPVTNQISIVGEQFKRLFPTIPVELNFARFFELRKMLLDKFADDEEFLMMIAHGDFTLTAPWCQDDTPELIDHPIYQEFLGSMPPRFVSMFEEAMDFSAYNAERWNTLLYKIKNLTLEDYQDYLNIKSHNIFNMTGDFMKPTQDEIDIGWESMSKRISQERELTTDINKQKPSIHFIWAQNKDRKLLNSTAKLVFLSNTLQSITEQSTWTDALKAIGVSMDIGNNIGLYENLCAERKLIARSTGKKVNNKRLEAVKIGKALVLWEQQFILANELFKGQERQKFIKNFFGIGKHKTFKDKTSEDLDREKPKILDFNNTRVLMAARTMVNKNKKFLSQDNTLEFDHPIISTYFDQVREASIDTAQVLKKISKTCFWQAITDISTLMRNILAVSQYNRHNTFRVAMCANDSIYGLVFPSSDIKTKRATIVFCIVCMHNSRDDIMDAGALFTTLETKTKTFVSISKAIRLDKERCQRIVSSPGLFILSTLLLYNNNTEISLYDVMNFTFYTSLSITKSMLSLTEPSRYMIMNSLAISSHVRDYIAEKFSPYTKTLFSVYMVNLIKRGCATANEQSEKIQVRNIYLSDYDITQKGINDIRNLDSIWFPGKVNLKEYINQIYLPFYFNAKGLHEKHHVMIDLAKTVLEIEMNQRLDQLGIWSKNEKKQHVNLPILVHSIAKSLILDTSRHNHLRNRVESRNNFRRSISTISTFTSSKSCIKIGEFQDLKTKEFKATKKMNEKINQKFRLANPLFIDDKDADAEIMHCNYDQLKTKVPNYKDYISVKVFDRLYELYKTKELDDKPFIEQAMKMMKEHKEFNFTFFNKGQKTSKDREIFVGEFEAKMCMYVVERISKERCKLNEDEMISEPGDTKLRILEKKAEEEIRYIVEKTKDSILKGDPAHALKLEINADMSKWSAQDVFFKYFWLVAMDPILYPSEKKRILYFMCNYMQKNLILPDDLLSNIMDQRRPYENDIILESTNGLAQNFVQIKRNWLQGNFNYMSSYVHSCAMLVYKDVAKEAVKLLDGNCLVNSMVHSDDNQTSLSIIQNKLKDNMIIEYVAKLFEAVCLAFGCQANMKKTYITHTCKEFVSLFNLHGEPLSIYGRFLLPSVGDCAYIGPYEDLASRLSAAQQSLKHGCPPSYVWVAISCSHWITHFTYNMMHDQVNSPMQYLPFEDRFQVPTELNGYLSAPLYLIALIGIEADNLWFLLNILKKLVPLDKQKETIQTQFTAIQDNINKLTPSELFRLKLLRYLTLDTEITSDSNMGETSDMRSRSLLTPRKFTTAGSLNKLVSYNDFKNAMNTNEFQENLEYMEMNPELLVTKGENKEQYINSILFRYNSKRFKESLSIQAPSQLFVEQILFSHKPIIDYSSIFDKLASMAETEIIENLPDIIGRVTYPQAYQMITRDITQLPLDIDDIKIVFKYCVLNDPLIITAANTSLLCVRGAPQDRTGLSACQMPEFRNMKLIHHSPALVLKAFSKGTVDIPGADPVELEKDLLHLKEFVENTGIQEKIQMNIDNPPKHLQGTEVLIYKIRELTKLYQVCYDYVKSTEHKVKVFILPMKSYTSIEFCTLIQGNTISDSKWYTMHYLKQVLGGTMKGHMMTTSTSEQVIAAECFRVLTHFADAFVEEGSRVSFLNEILDKFTYKNVSVNYLLNVLLASSNRLDFIPLLFRTKMLTQQDLNKFDALKTNERVSWNNWQTNRGLNSGIIDLTISGYLRSIRIVGEDNKLKIAELTIPNFLPNTIFHAGNKLLNSRHNLKFEYMEEYVLDDKYNYYITYQKKRANLYTYQVSTVDHIWRRNEEGNQKRGKRYNKMVPVCPVVVSSRDEMFKISMQNVFSLNLTNFNLTKLFVSPDEVATIKKAHMSKMMFFSGPQIKAGIIDLTTLMRTQELLTLNYDNLCKSSIIPFCRILACNGEEPGELIFLSDEVMEFTISEEIESMPIFTIRYQKRGNSSMTYKNAIRTLVANGVDEIKEVFDFSGEGFYSKKNLGIINTICSTIEVLETNEWSTILLNSFHIAMLLENMDREFHLFSMPGAFFSNVANGTINWTKLLKFVKSLPAVKKEPWSMMMERFIEKTVYLIEREINKEVDFNDFLEELEYQSGKSMFTFF

Source

organism	Ebinur lake virus
ncbi_taxonomy_id	1501396
host_organism	Pichia

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.550 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.55 Å
resolution_method	—
num_particles	207279

fit	/app/data/saxs_computation/vs/9vs3/9vs3.fit
pddf	/app/data/pr_computation/vs/9vs3/9vs3.pr.out
profile	/app/data/saxs_computation/vs/9vs3/9vs3.dat

Apo structure of Ebinur lake virus polymerase

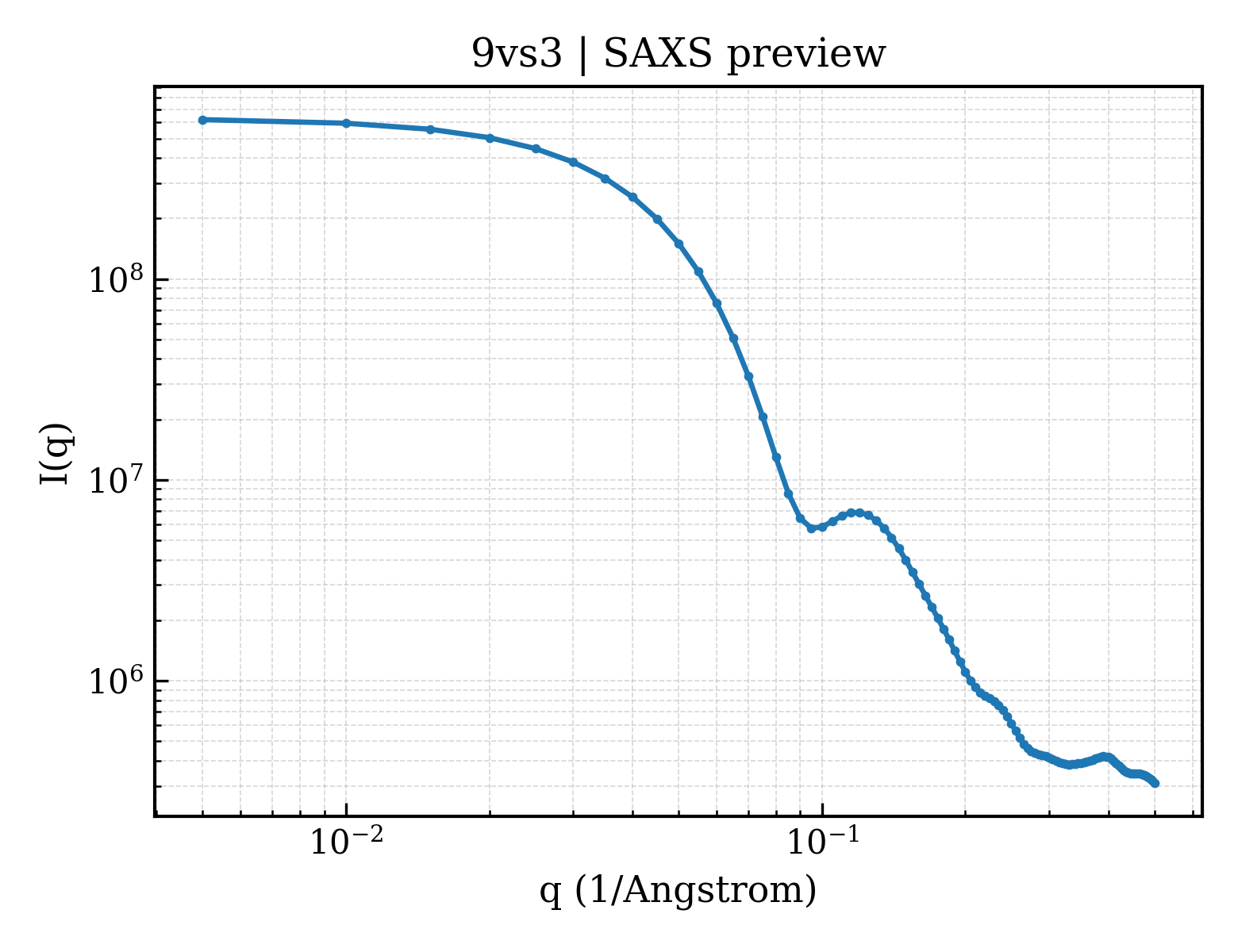

SAXS Profile
