9w1i

Structure of the type III CRISPR-associated deaminase in complex cA6 and ATP, State 5

Method: ELECTRON MICROSCOPY D_max: 192.8 Å Quality: GOOD

SAXS Profile

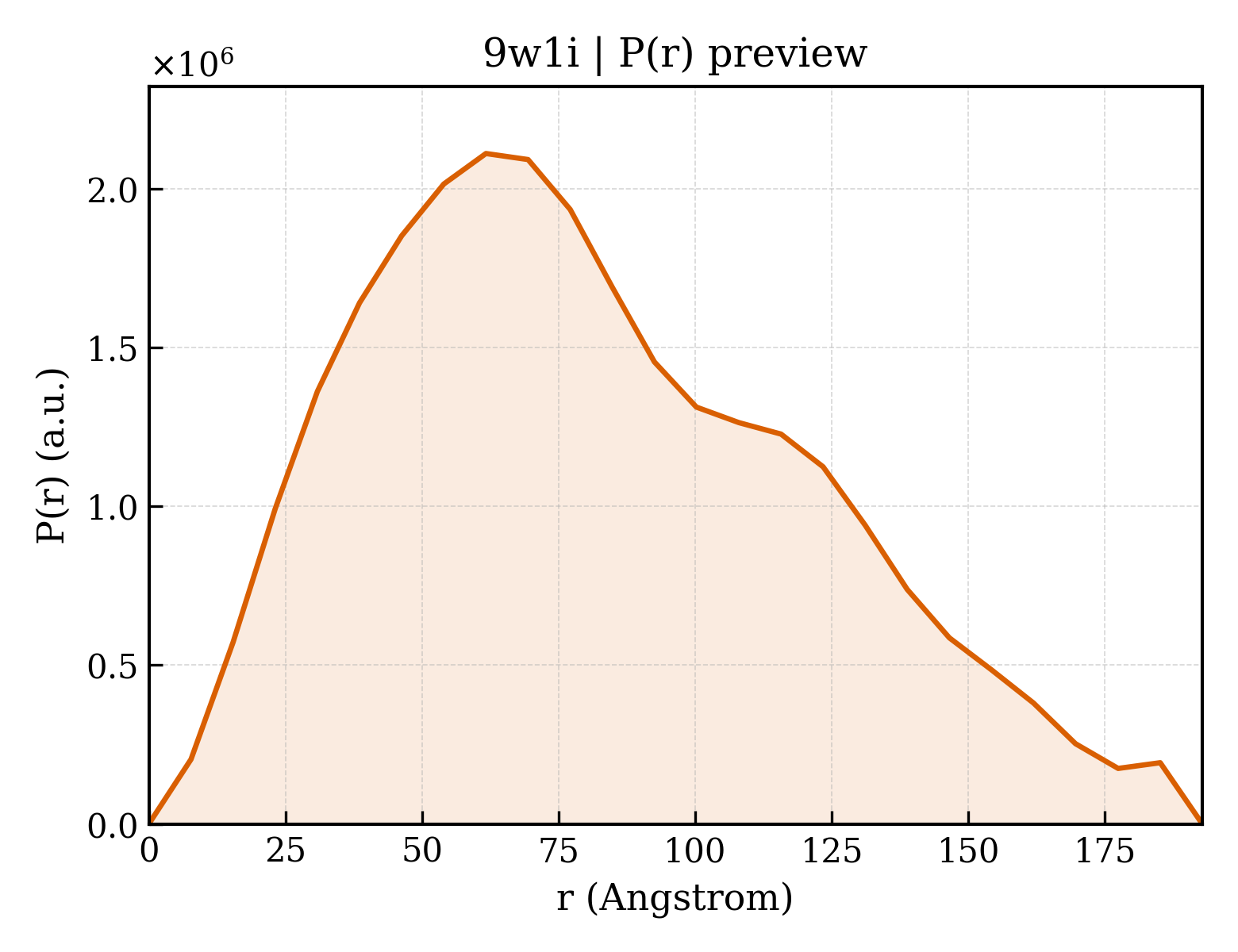

P(r) Distribution

▼

1. Structure Basics

entry_id	9w1i
deposition_date	2025-07-25
title	Structure of the type III CRISPR-associated deaminase in complex cA6 and ATP, State 5
keywords	deaminase, complex, ATP, HYDROLASE/RNA, HYDROLASE-RNA complex; HYDROLASE/RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	62.92 Å
rg_electron	63.23 Å
i0	2576790000.00
molecular_weight	414200.0 kDa
excluded_volume	513830 Å³
envelope_volume	724380 Å³
shell_volume	104470 Å³
envelope_diameter	211.6 Å
shell_rg	56.57 Å
envelope_rg	63.44 Å
shape_rg	63.25 Å
total_rg	63.03 Å
total_atoms	29202
n_residues	3672
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	192.8 Å
rg_real	63.40 Å
rg_real_error	1.52 Å
i0_real	2.5760e+09
i0_real_error	5.5580e+07
rg_reciprocal	62.44 Å
i0_reciprocal	2572000000.0000
total_estimate	0.8344
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	61.7 Å
skewness	0.450
kurtosis	-0.478
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0001
highest_alpha	78960000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.087

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	adenosine deaminase
formula_weight	70328.0 kDa
ec_number	3.5.4.4
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,D,F,E,C
atom_count	29202

MRILLCSVGTSWAVVPEAMQLLGSQGFDEVHVLTTASSKISPGVEQLLRYFEMHPGPRFSISRVQDFEDLRSEQDHMLFEEVLWRWLLQRAPQAAHRYICLAGGYKTISAAMQRAAALFGACEVFHVLCEPRFGPQGNREASTLEEVEQAIATNALRFVRLGPEPGWPQLRLLSAPSFPLESTLQGPVHWVRASDMRLRQHVEGVLERSRHILAAWEGISELPIPALAAWPPSHLRWLHEPLDPVQDKAWVQALPKVELHCHLGGFATHGELLHKVRQEAANPESLPPVRAIPLPPGWPIPEEPIGLERYMRLGDNNGSALLKDPGCLRAQCRLLYEALLADHVAYAEIRCSPANYASASRSPWVVLQEIRNHFQQAMEETPEDRRCHVNLLLTATREEGGDRSRIARHLALAITAAEHWKNGCRVVGVDLAGFEDRTTRAAMFATDFEPVHRVGLAVTVHAGENDDVEGIWQAVFKLSARRLGHALHLSRSPDLLRVVAERGIAVELCPYANLQIKGFPLDEEQEGSETYPLRGYLAAGVAVTLNTDNLGISQASLTDNLLLTARLCPGITRLEVLKTQVFAAQAAFANQAERKALWARLAQVPVPTDTEQKNGNDAKASHQPRHHHHHH

Source

organism	Thermoanaerobaculum aquaticum
ncbi_taxonomy_id	1312852
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	;RNA (5'-R(PAPAPAPAPAPA)-3') ;
formula_weight	1930.3 kDa
src_method	syn
entity_count	3

Polymer

type	polyribonucleotide
strand_id	X,Y,Z

AAAAAA

Entity 3 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	6

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	6

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.840 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.84 Å
resolution_method	—
num_particles	106481

fit	/app/data/saxs_computation/w1/9w1i/9w1i.fit
pddf	/app/data/pr_computation/w1/9w1i/9w1i.pr.out
profile	/app/data/saxs_computation/w1/9w1i/9w1i.dat
