9w4u
ASFV E146L

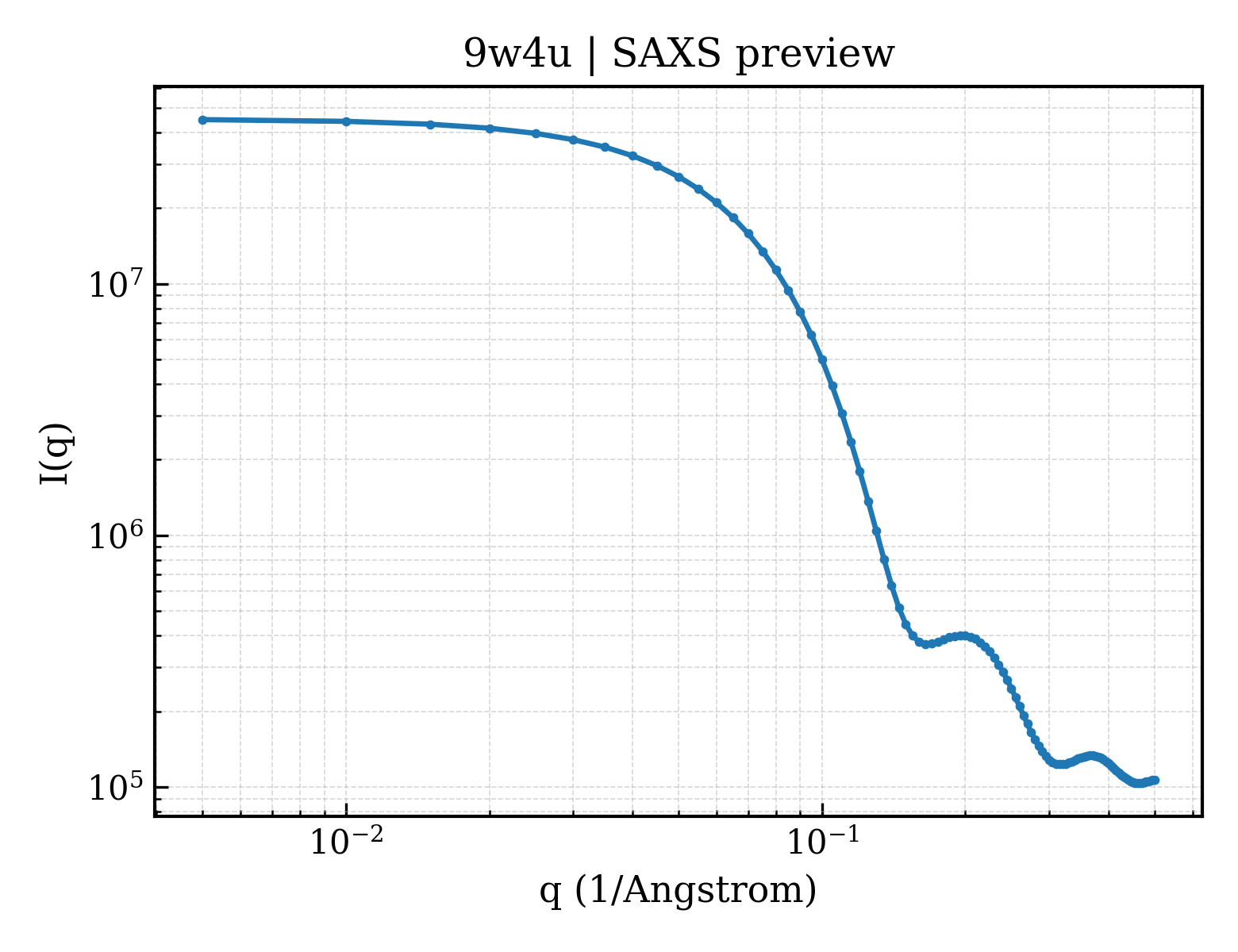

SAXS Profile

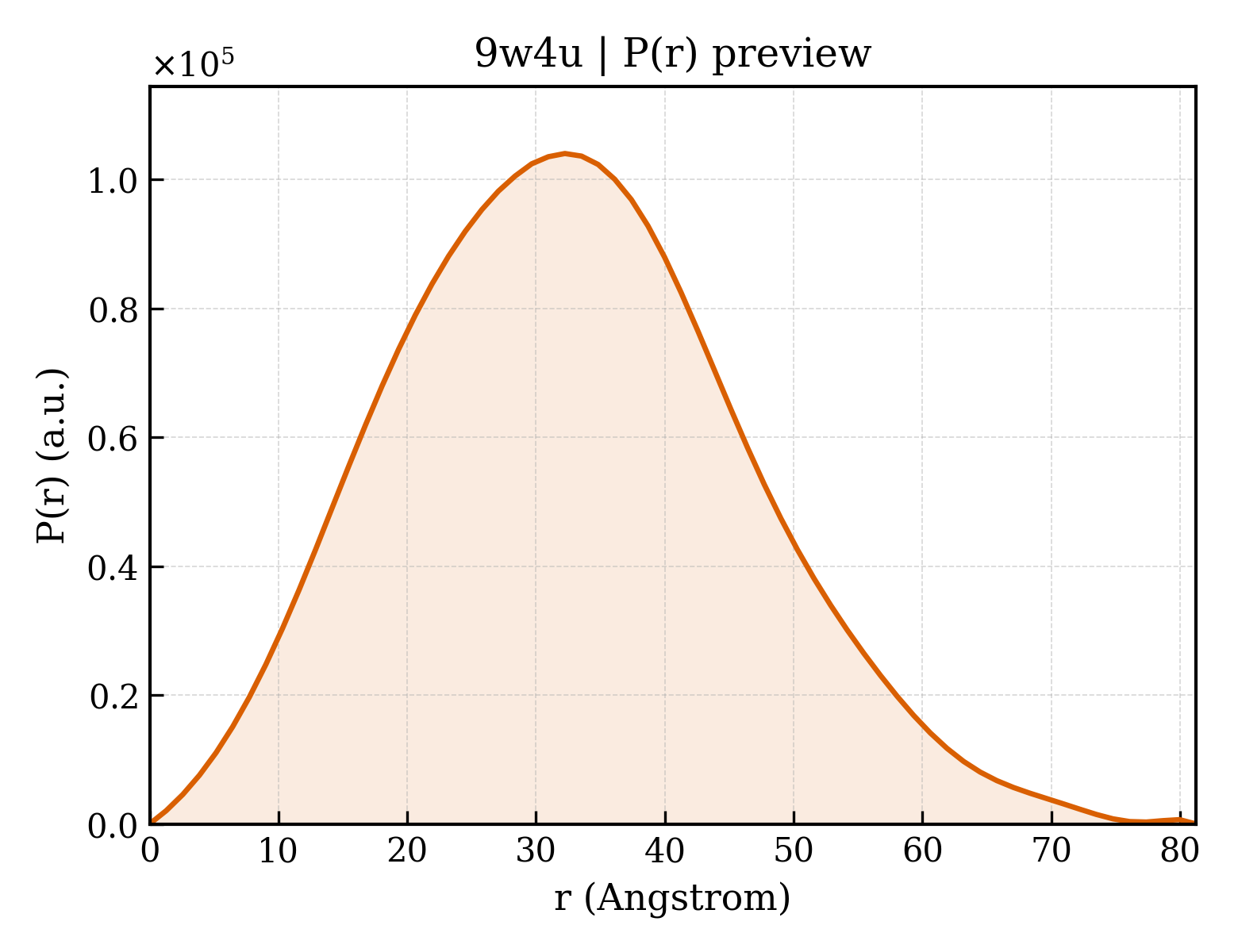

P(r) Distribution
1. Structure Basics
| entry_id | 9w4u |
| deposition_date | 2025-08-01 |
| last_revision | 2025-09-17 |
| title | ASFV E146L |
| keywords | ASFV, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.06 Å |
| rg_electron | 23.73 Å |
| i0 | 45198600.00 |
| molecular_weight | 50963.0 kDa |
| excluded_volume | 63441 ų |
| envelope_volume | 79982 ų |
| shell_volume | 28059 ų |
| envelope_diameter | 84.6 Å |
| shell_rg | 30.88 Å |
| envelope_rg | 24.03 Å |
| shape_rg | 23.72 Å |
| total_rg | 24.65 Å |
| total_atoms | 3588 |
| n_residues | 463 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 81.2 Å |
| rg_real | 24.98 Å |
| rg_real_error | 0.48 Å |
| i0_real | 4.5200e+07 |
| i0_real_error | 5.7880e+05 |
| rg_reciprocal | 25.00 Å |
| i0_reciprocal | 45200000.0000 |
| total_estimate | 0.8846 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 32.2 Å |
| skewness | 0.265 |
| kurtosis | -0.229 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7361000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.966 |
