9we4

N-methyltransferase 1 complexed with SAH and PDM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 98.3 Å Quality: GOOD

SAXS Profile

SAXS profile for 9we4

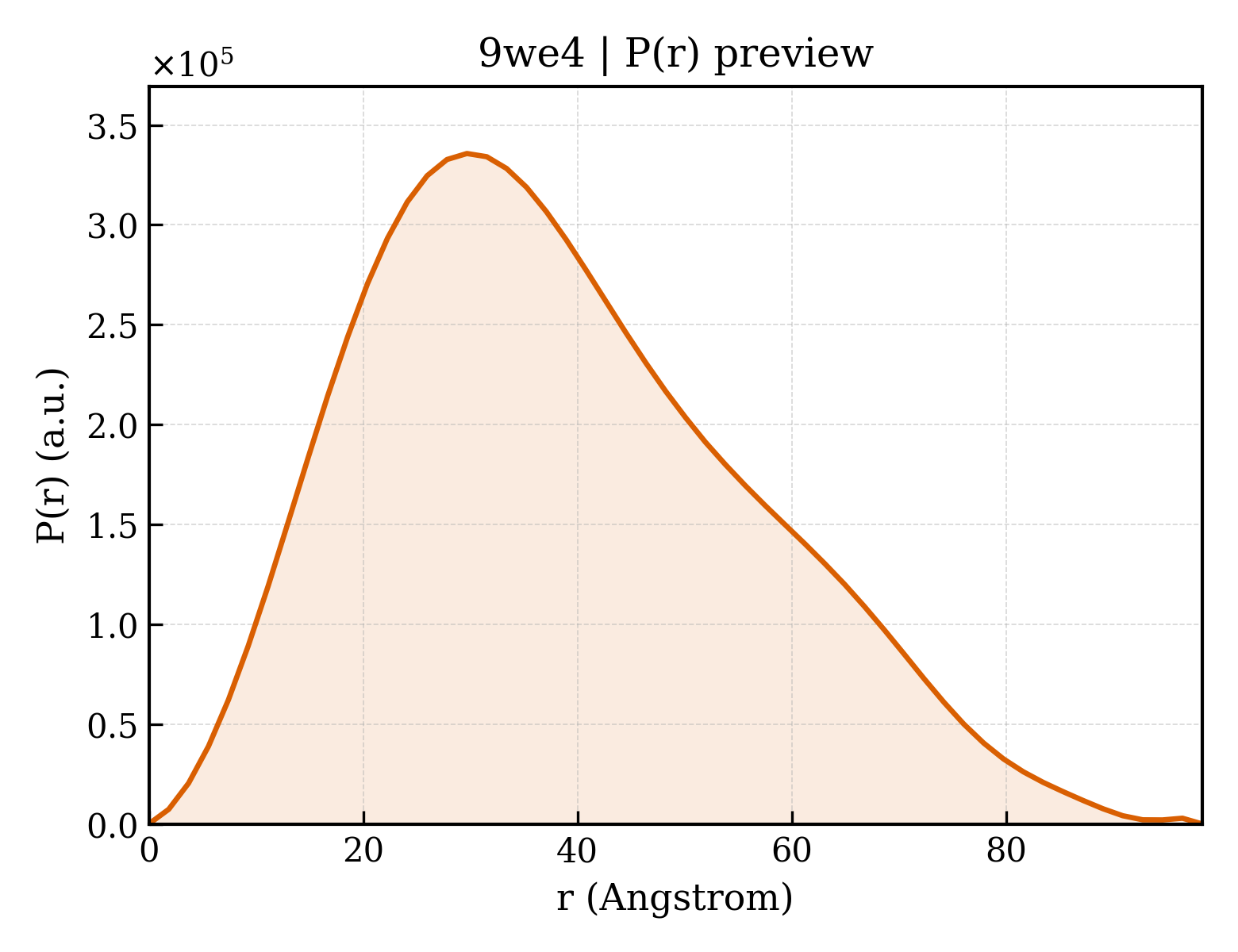

P(r) Distribution

P(r) distribution for 9we4

1. Structure Basics

entry_id9we4
deposition_date2025-08-19
last_revision2026-04-01
titleN-methyltransferase 1 complexed with SAH and PDM in Chimonanthus praecox
keywordsN-methyltranferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier29.68
rg_electron29.03
i0184025000.00
molecular_weight73589.0 kDa
excluded_volume71902 ų
envelope_volume116310 ų
shell_volume33976 ų
envelope_diameter104.3
shell_rg35.65
envelope_rg29.35
shape_rg28.98
total_rg29.57
total_atoms5572
n_residues677
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax98.3
rg_real29.79
rg_real_error0.77
i0_real1.8400e+08
i0_real_error2.9350e+06
rg_reciprocal29.74
i0_reciprocal184000000.0000
total_estimate0.8711
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary29.7
skewness0.459
kurtosis-0.371
angular_range— – 0.2650 −1
current_alpha0.0000
highest_alpha30160000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.911

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
