9whv
Cross-Stacking-Stabilized Intra-Locked RNA G-Quadruplex

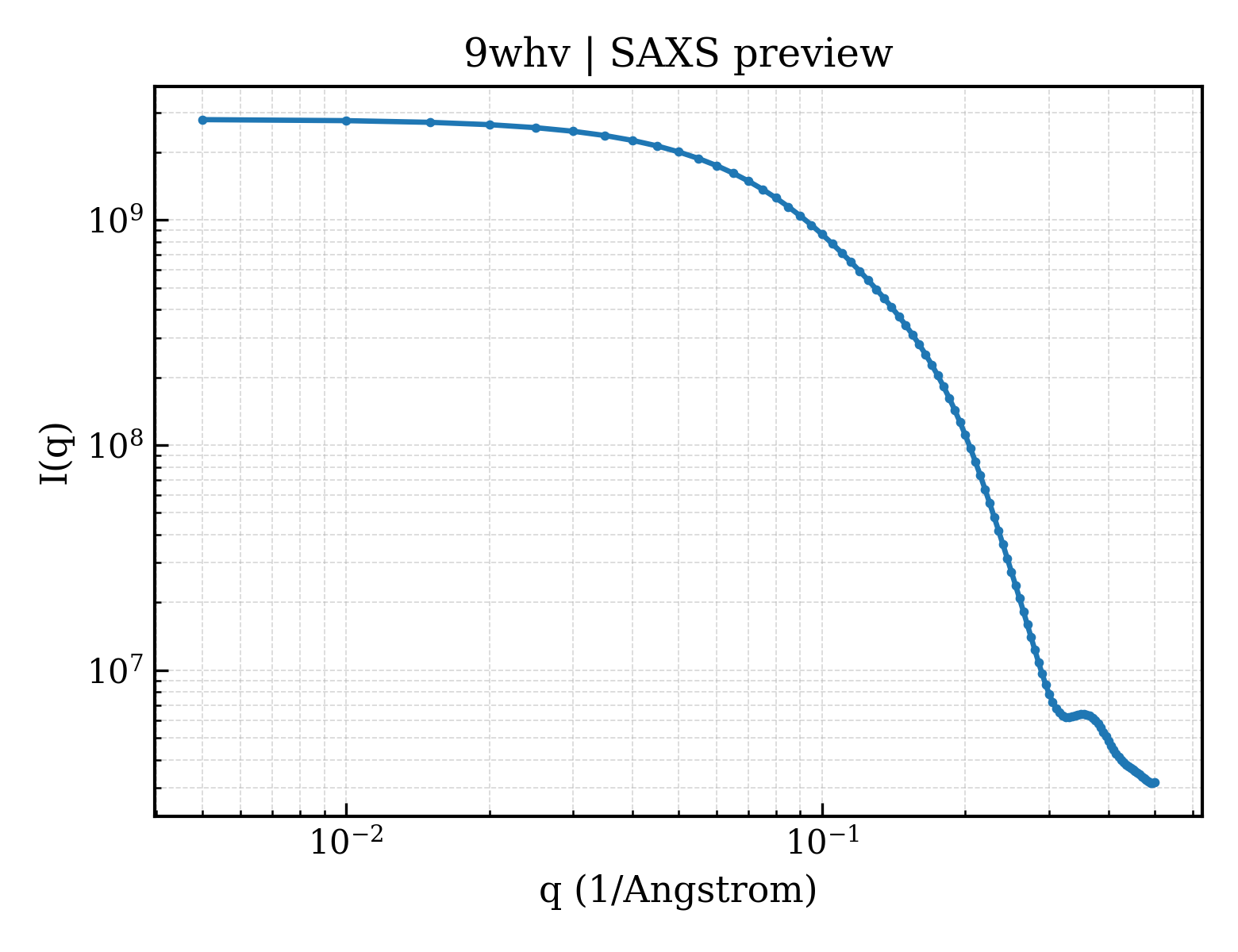

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9whv |
| deposition_date | 2025-08-27 |
| title | Cross-Stacking-Stabilized Intra-Locked RNA G-Quadruplex |
| keywords | G-quadruplex, 16-layers, interlocked, High serum stability, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.06 Å |
| rg_electron | 20.34 Å |
| i0 | 2798980000.00 |
| molecular_weight | 256800.0 kDa |
| excluded_volume | 240910 ų |
| envelope_volume | 35786 ų |
| shell_volume | 15839 ų |
| envelope_diameter | 73.5 Å |
| shell_rg | 26.03 Å |
| envelope_rg | 21.27 Å |
| shape_rg | 20.26 Å |
| total_rg | 20.52 Å |
| total_atoms | 25520 |
| n_residues | 800 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.1 Å |
| rg_real | 20.30 Å |
| rg_real_error | 0.47 Å |
| i0_real | 2.7990e+09 |
| i0_real_error | 3.9520e+07 |
| rg_reciprocal | 20.26 Å |
| i0_reciprocal | 2799000000.0000 |
| total_estimate | 0.8016 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.8 Å |
| skewness | 0.628 |
| kurtosis | -0.257 |
| angular_range | — – 0.3950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9269000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.607; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.619; Smooth: 0.975 |
