9whz

N-methyltransferase 1 complexed with SAH and MCM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 98.4 Å Quality: GOOD

SAXS Profile

SAXS profile for 9whz

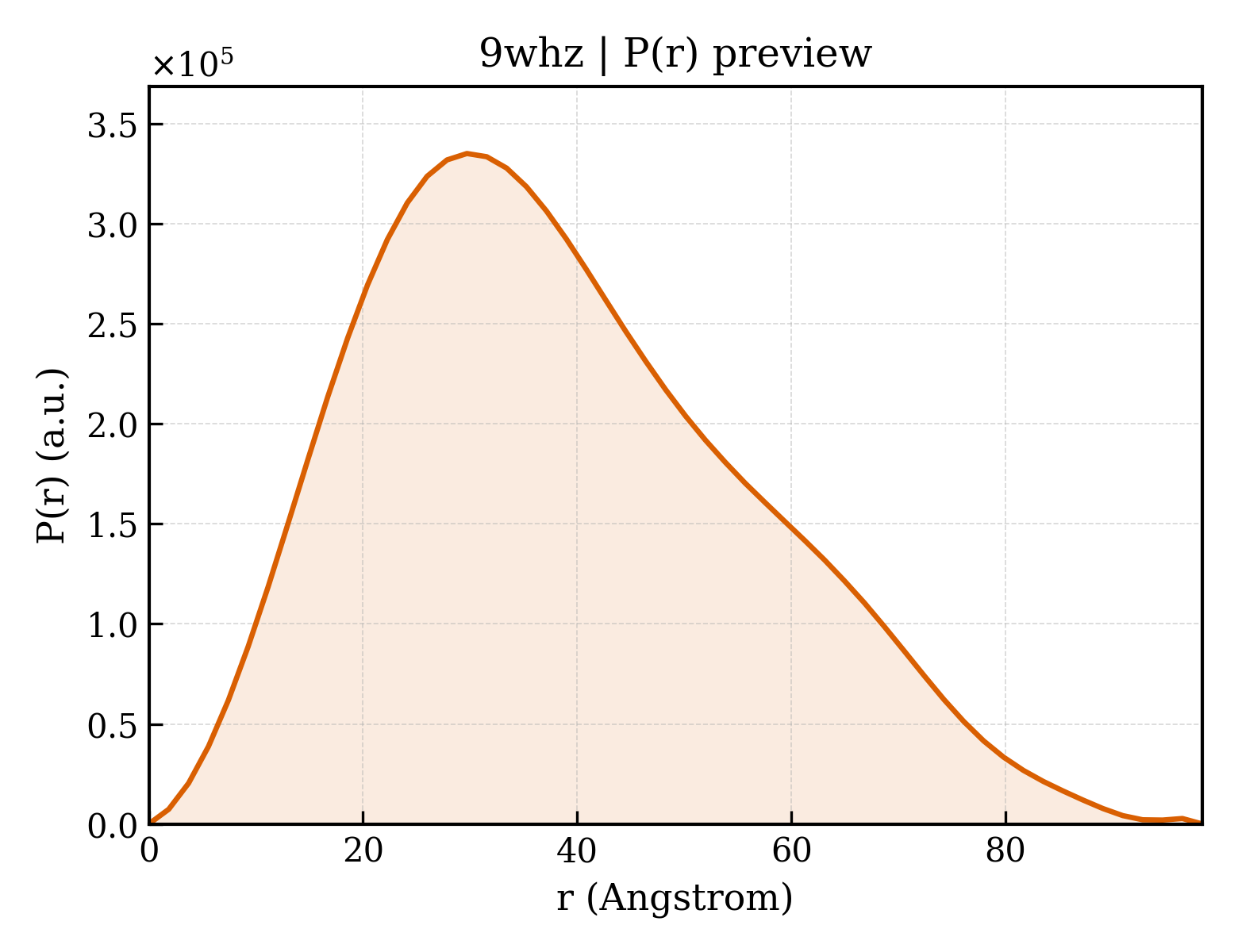

P(r) Distribution

P(r) distribution for 9whz

1. Structure Basics

entry_id9whz
deposition_date2025-08-27
last_revision2026-04-01
titleN-methyltransferase 1 complexed with SAH and MCM in Chimonanthus praecox
keywordsN-methyltransferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier29.78
rg_electron29.13
i0184448000.00
molecular_weight73695.0 kDa
excluded_volume72006 ų
envelope_volume117100 ų
shell_volume34088 ų
envelope_diameter104.6
shell_rg35.76
envelope_rg29.43
shape_rg29.07
total_rg29.67
total_atoms5580
n_residues678
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax98.4
rg_real29.89
rg_real_error0.73
i0_real1.8440e+08
i0_real_error2.5520e+06
rg_reciprocal29.85
i0_reciprocal184400000.0000
total_estimate0.8716
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary29.7
skewness0.455
kurtosis-0.384
angular_range— – 0.2650 −1
current_alpha0.0000
highest_alpha30150000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.825; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.949; Smooth: 0.902
