9wj7

N-methyltransferase 2-like complexed with SAH and NCM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 99.9 Å Quality: GOOD

SAXS Profile

SAXS profile for 9wj7

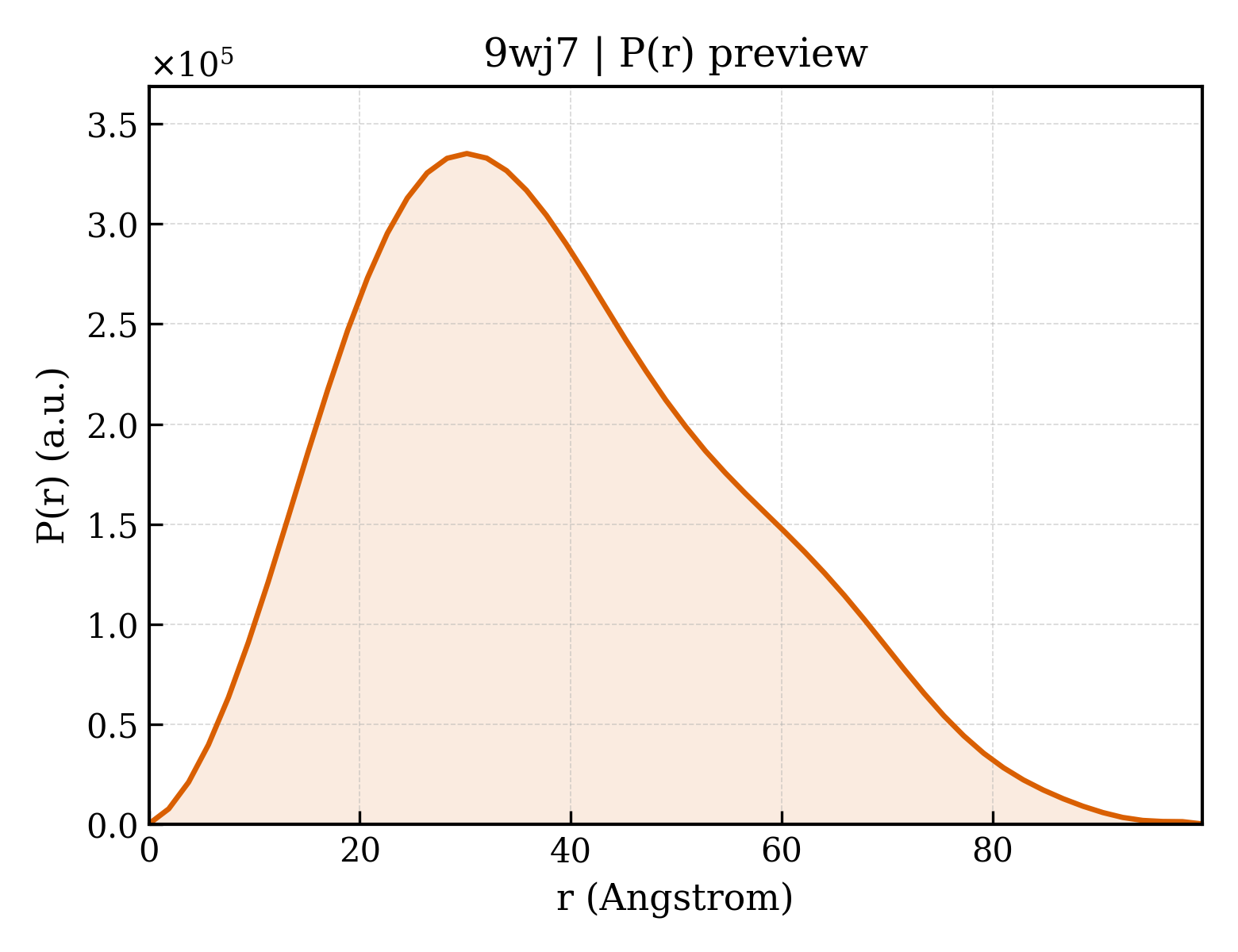

P(r) Distribution

P(r) distribution for 9wj7

1. Structure Basics

entry_id9wj7
deposition_date2025-08-30
last_revision2026-04-01
titleN-methyltransferase 2-like complexed with SAH and NCM in Chimonanthus praecox
keywordsN-methyltranferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier29.72
rg_electron29.07
i0184208000.00
molecular_weight73281.0 kDa
excluded_volume71377 ų
envelope_volume116800 ų
shell_volume34064 ų
envelope_diameter104.0
shell_rg35.77
envelope_rg29.37
shape_rg29.02
total_rg29.59
total_atoms5539
n_residues675
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax99.9
rg_real29.83
rg_real_error0.75
i0_real1.8420e+08
i0_real_error2.6770e+06
rg_reciprocal29.79
i0_reciprocal184200000.0000
total_estimate0.8664
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary30.1
skewness0.455
kurtosis-0.370
angular_range— – 0.2650 −1
current_alpha0.0000
highest_alpha29700000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.918

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
