9wj9

N-methyltransferase 2-like complexed with SAH and MDM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 123.3 Å Quality: REASONABLE

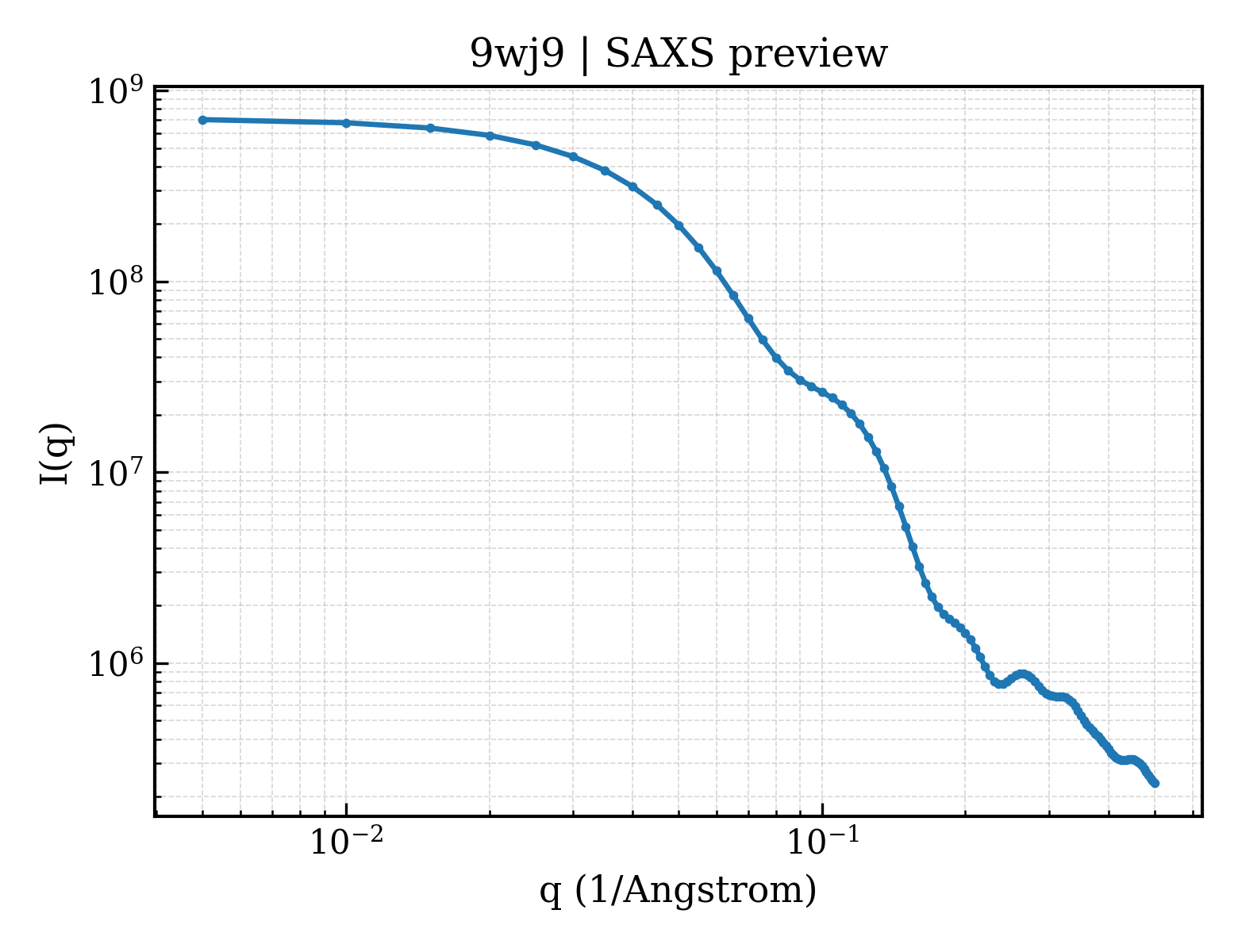

SAXS Profile

SAXS profile for 9wj9

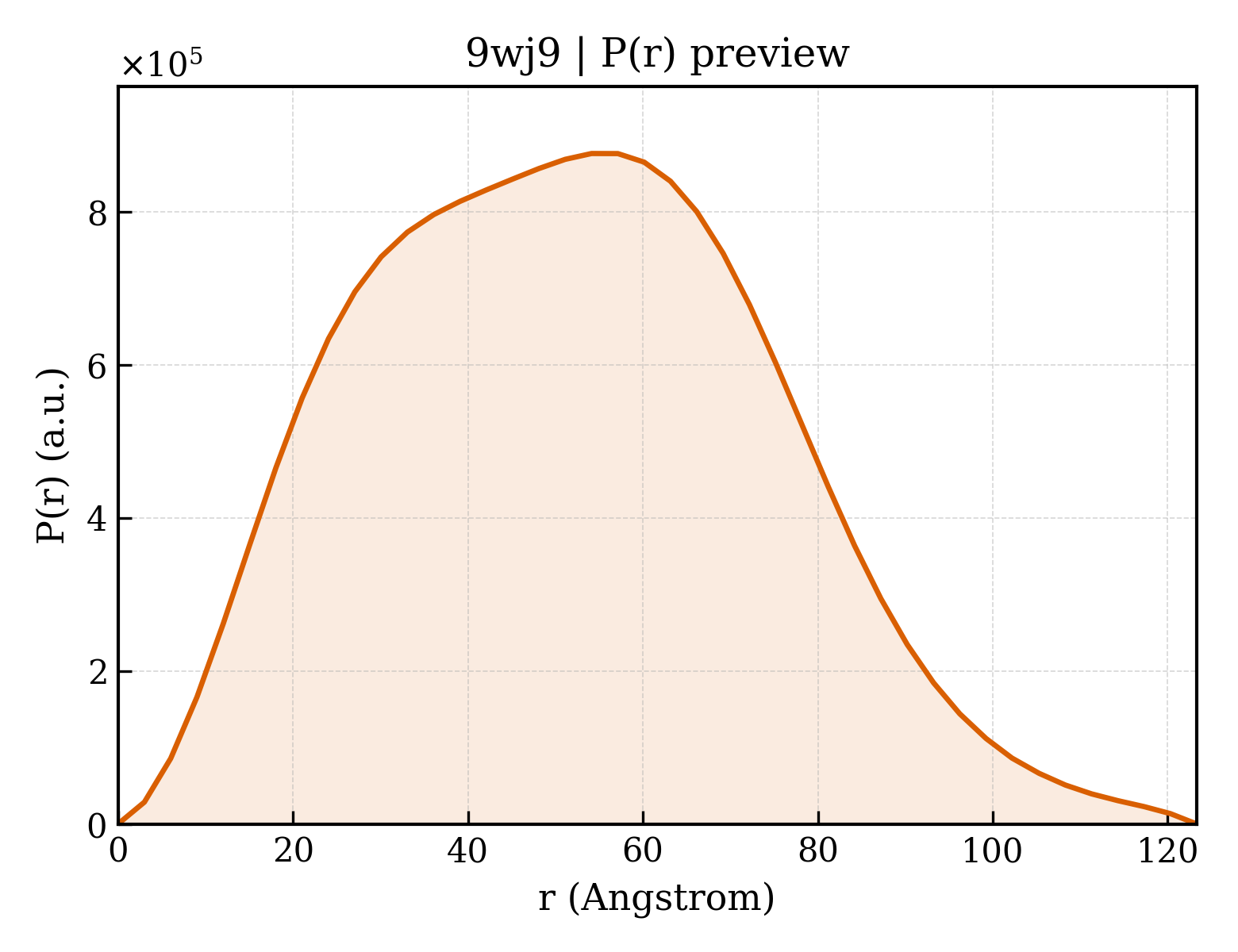

P(r) Distribution

P(r) distribution for 9wj9

1. Structure Basics

entry_id9wj9
deposition_date2025-08-30
last_revision2026-04-01
titleN-methyltransferase 2-like complexed with SAH and MDM in Chimonanthus praecox
keywordsN-methyltranferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier39.00
rg_electron38.28
i0712944000.00
molecular_weight147640.0 kDa
excluded_volume143870 ų
envelope_volume255760 ų
shell_volume54183 ų
envelope_diameter125.8
shell_rg45.58
envelope_rg37.72
shape_rg38.25
total_rg38.65
total_atoms11161
n_residues1360
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax123.3
rg_real39.77
rg_real_error0.34
i0_real7.0550e+08
i0_real_error8.5450e+06
rg_reciprocal38.95
i0_reciprocal713000000.0000
total_estimate0.7048
solution_quality REASONABLE a REASONABLE solution
n_peaks1
r_peak_primary54.1
skewness0.219
kurtosis-0.486
angular_range— – 0.2050 −1
current_alpha2.4350
highest_alpha85200000.0000
n_real_points42
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.956; Stabil: 0.911; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.603

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
