9wja

N-methyltransferase 2-like complexed with SAH and PDM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 133.7 Å Quality: GOOD

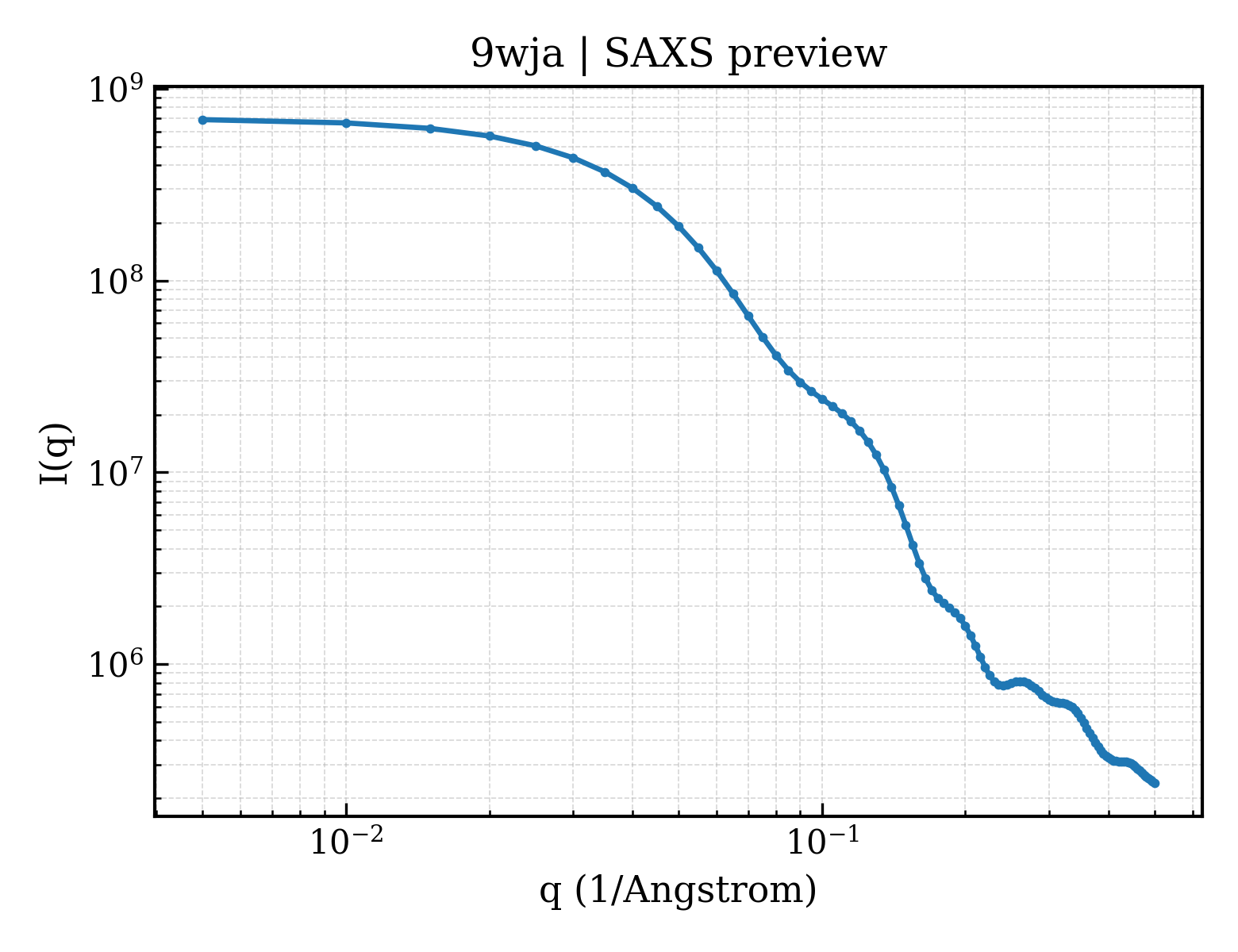

SAXS Profile

SAXS profile for 9wja

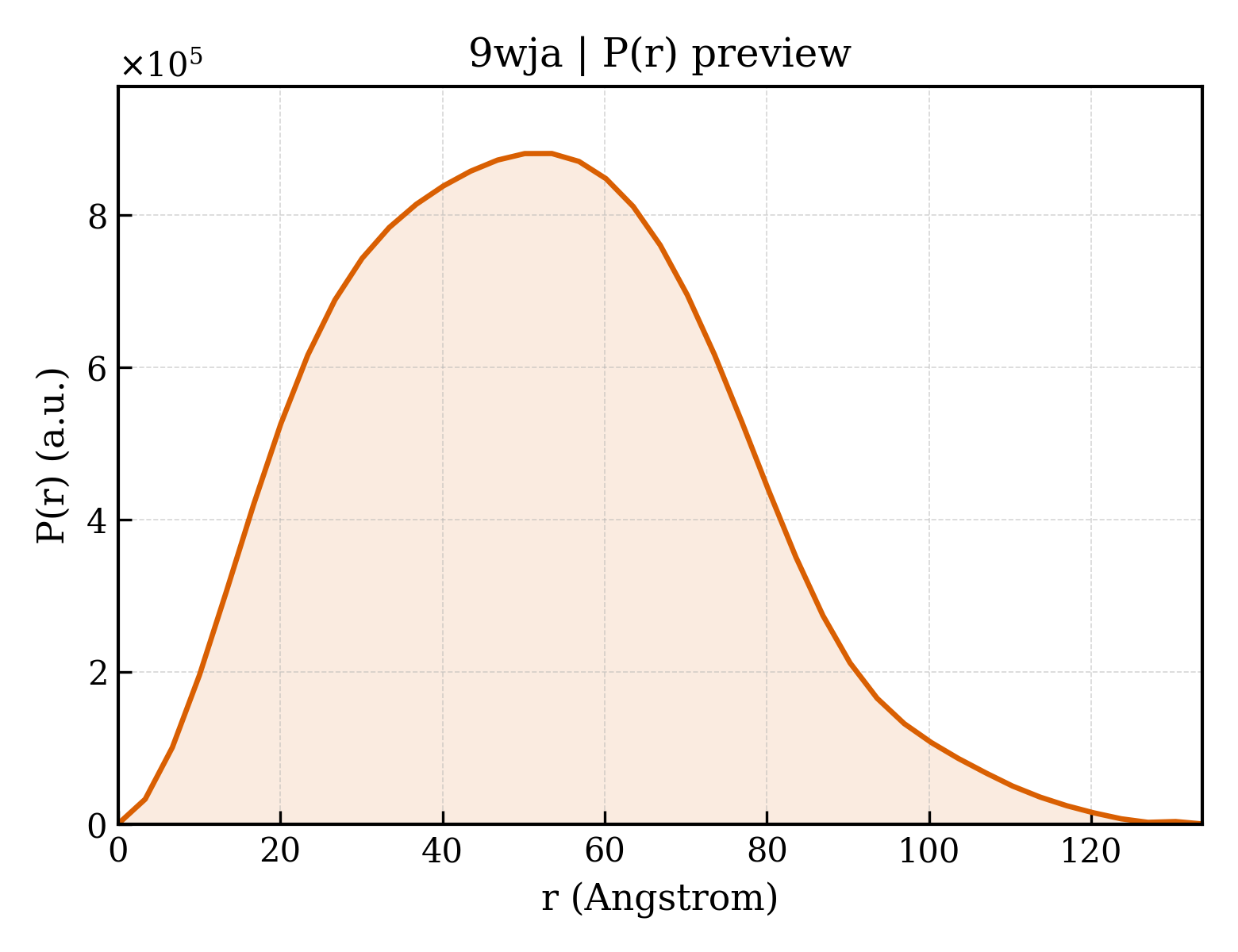

P(r) Distribution

P(r) distribution for 9wja

1. Structure Basics

entry_id9wja
deposition_date2025-08-30
last_revision2026-04-01
titleN-methyltransferase 2-like complexed with SAH and PDM in Chimonanthus praecox
keywordsN-methyltranferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier39.62
rg_electron39.39
i0699868000.00
molecular_weight146150.0 kDa
excluded_volume142390 ų
envelope_volume255650 ų
shell_volume54010 ų
envelope_diameter142.4
shell_rg45.25
envelope_rg38.65
shape_rg39.41
total_rg39.60
total_atoms11048
n_residues1352
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax133.7
rg_real39.61
rg_real_error1.33
i0_real6.9990e+08
i0_real_error1.4580e+07
rg_reciprocal39.62
i0_reciprocal699900000.0000
total_estimate0.8774
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary53.5
skewness0.285
kurtosis-0.359
angular_range— – 0.2000 −1
current_alpha0.0000
highest_alpha66580000.0000
n_real_points41
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.847

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
