9wje

N-methyltransferase 1 complexed with SAH and MDM in Chimonanthus praecox

Method: X-RAY DIFFRACTION Dmax: 100.2 Å Quality: REASONABLE

SAXS Profile

SAXS profile for 9wje

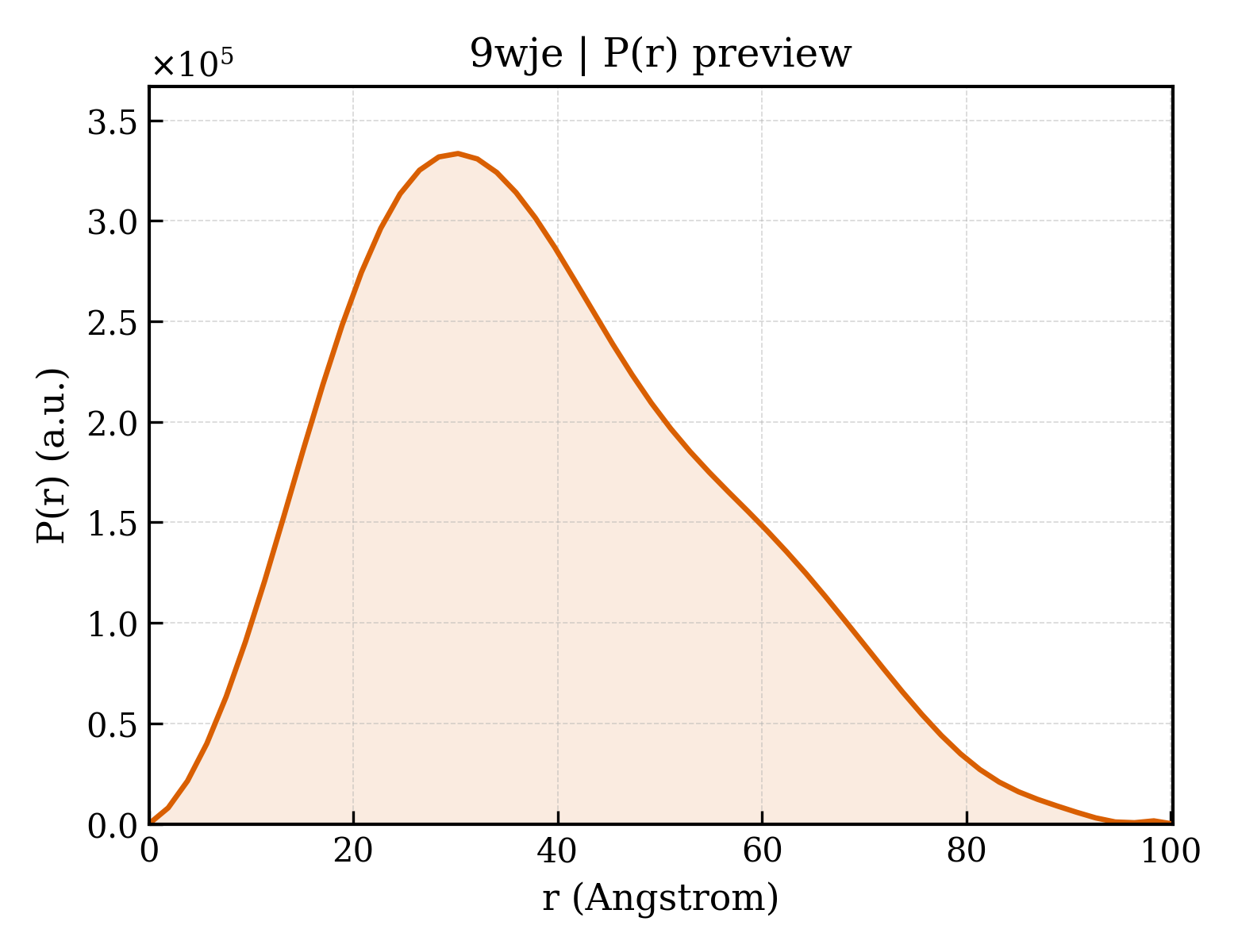

P(r) Distribution

P(r) distribution for 9wje

1. Structure Basics

entry_id9wje
deposition_date2025-08-30
last_revision2026-04-01
titleN-methyltransferase 1 complexed with SAH and MDM in Chimonanthus praecox
keywordsN-methyltranferase, PLANT PROTEIN; PLANT PROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier29.77
rg_electron29.13
i0183979000.00
molecular_weight73589.0 kDa
excluded_volume71902 ų
envelope_volume117130 ų
shell_volume34093 ų
envelope_diameter105.7
shell_rg35.76
envelope_rg29.44
shape_rg29.07
total_rg29.67
total_atoms5572
n_residues677
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax100.2
rg_real29.89
rg_real_error0.77
i0_real1.8400e+08
i0_real_error2.5300e+06
rg_reciprocal29.84
i0_reciprocal184000000.0000
total_estimate0.6650
solution_quality REASONABLE a REASONABLE solution
n_peaks2
r_peak_primary30.3
skewness0.454
kurtosis-0.383
angular_range— – 0.2650 −1
current_alpha0.0000
highest_alpha30100000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.794; Stabil: 1.000; Sysdev: 0.135; Positv: 1.000; Valcen: 0.934; Smooth: 0.919

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
