9wn9
Wild-type Menin complexed with DSP-5336
SAXS Profile

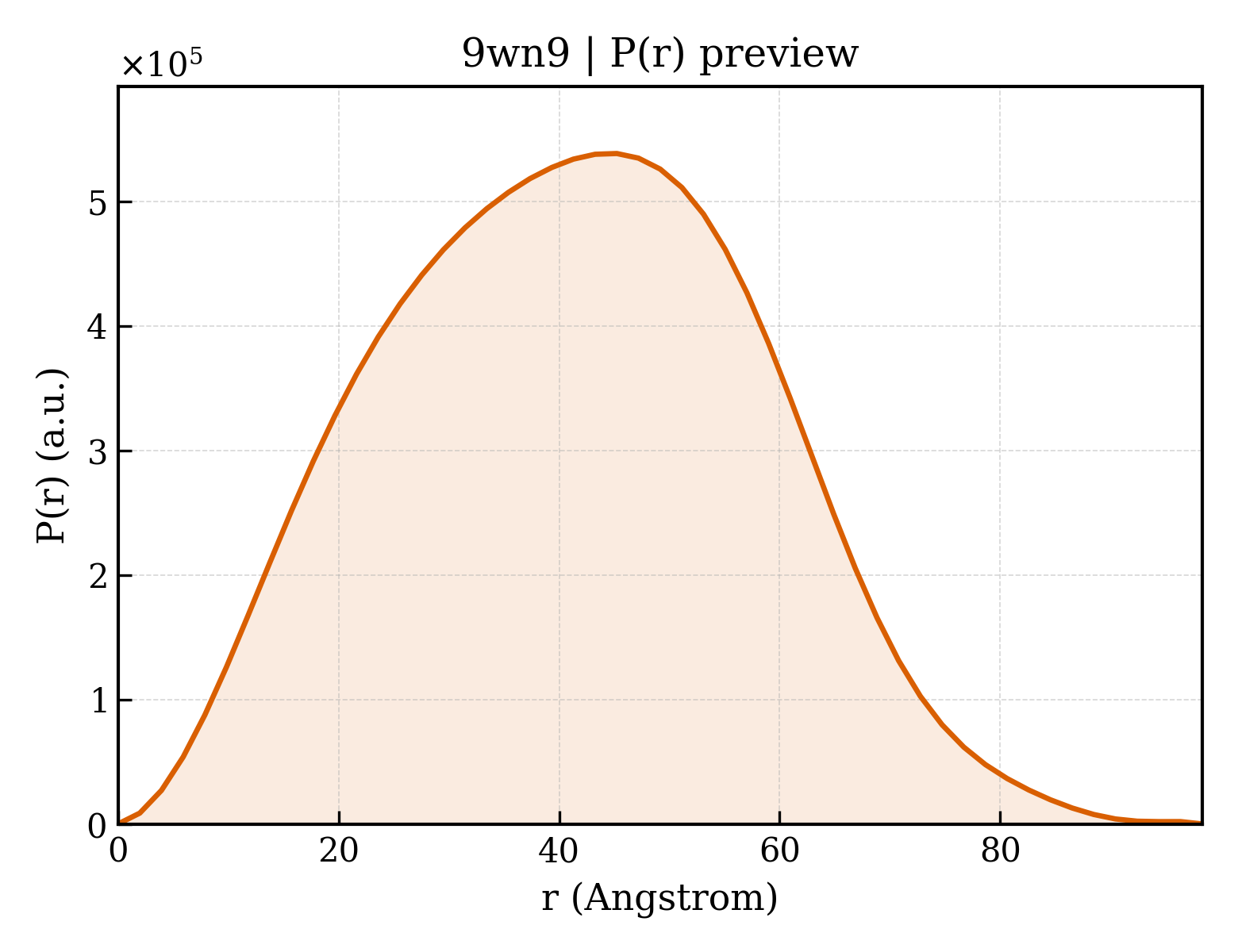

P(r) Distribution
1. Structure Basics
| entry_id | 9wn9 |
| deposition_date | 2025-09-04 |
| title | Wild-type Menin complexed with DSP-5336 |
| keywords | HUMAN MENIN, TRANSCRIPTION, M322I MUTANT INHIBITOR COMPLEX, DS1594; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.71 Å |
| rg_electron | 30.83 Å |
| i0 | 318451000.00 |
| molecular_weight | 96188.0 kDa |
| excluded_volume | 93471 ų |
| envelope_volume | 165990 ų |
| shell_volume | 43909 ų |
| envelope_diameter | 105.1 Å |
| shell_rg | 38.93 Å |
| envelope_rg | 30.11 Å |
| shape_rg | 30.82 Å |
| total_rg | 31.36 Å |
| total_atoms | 7303 |
| n_residues | 908 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 98.3 Å |
| rg_real | 31.51 Å |
| rg_real_error | 0.57 Å |
| i0_real | 3.1850e+08 |
| i0_real_error | 4.3700e+06 |
| rg_reciprocal | 31.60 Å |
| i0_reciprocal | 318500000.0000 |
| total_estimate | 0.9012 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 45.2 Å |
| skewness | 0.085 |
| kurtosis | -0.548 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 59230000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.921; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.957 |
