9wuk

Cryo-EM structure of loop truncated self-sufficient P450 from Shimazuella soli

Method: ELECTRON MICROSCOPY Dmax: 126.5 Å Quality: GOOD

SAXS Profile

SAXS profile for 9wuk

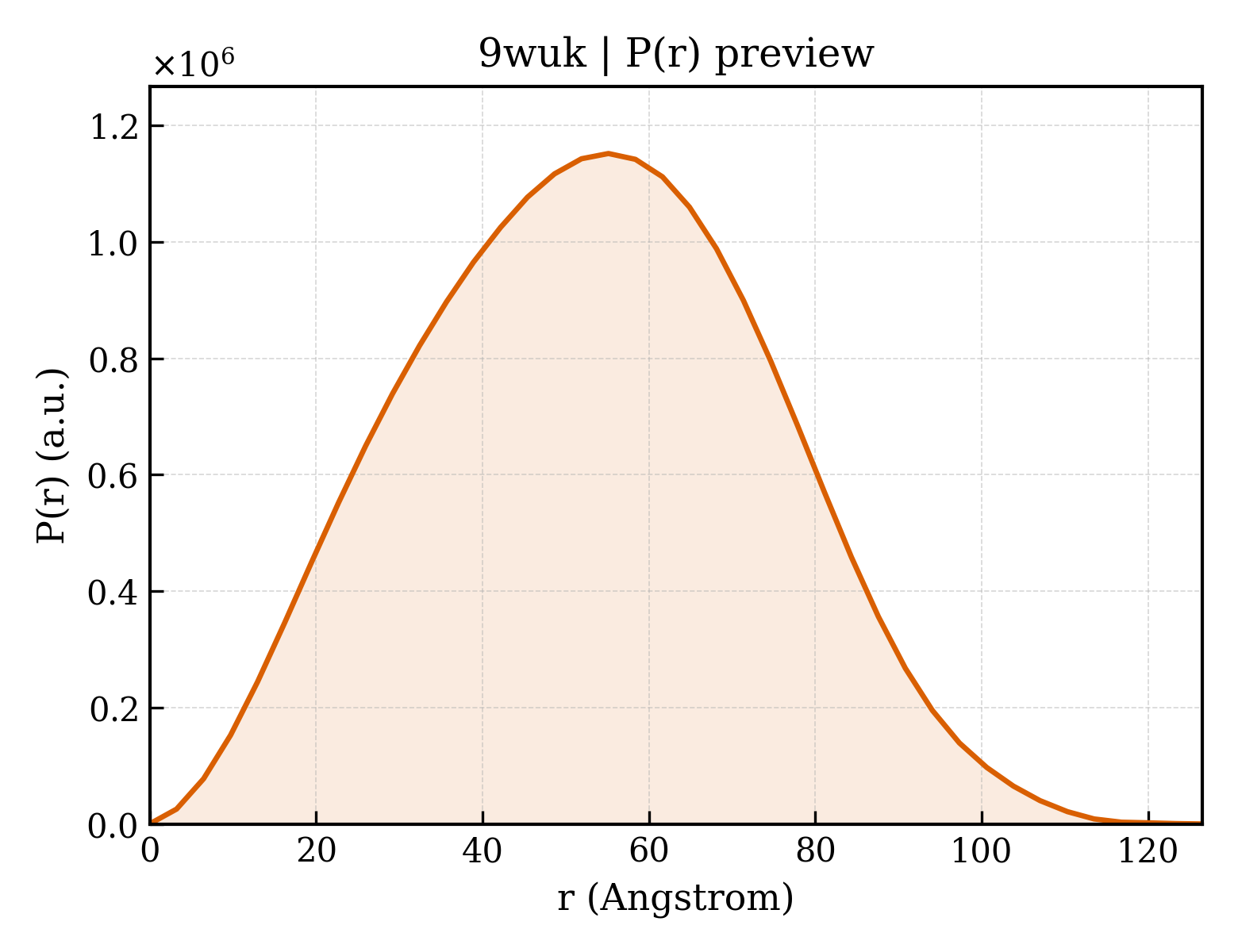

P(r) Distribution

P(r) distribution for 9wuk
▼

1. Structure Basics

entry_id9wuk
deposition_date2025-09-18
titleCryo-EM structure of loop truncated self-sufficient P450 from Shimazuella soli
keywordsself-sufficient P450, heme, OXIDOREDUCTASE; OXIDOREDUCTASE
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier40.60 Å
rg_electron39.82 Å
i0829133000.00
molecular_weight236050.0 kDa
excluded_volume295110 ų
envelope_volume376140 ų
shell_volume76072 ų
envelope_diameter130.5 Å
shell_rg47.61 Å
envelope_rg39.16 Å
shape_rg39.83 Å
total_rg40.20 Å
total_atoms16626
n_residues2050
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax126.5 Å
rg_real40.37 Å
rg_real_error0.97 Å
i0_real8.2910e+08
i0_real_error1.4640e+07
rg_reciprocal40.60 Å
i0_reciprocal829300000.0000
total_estimate0.8955
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary55.1 Å
skewness0.068
kurtosis-0.524
angular_range— – 0.1950 Å−1
current_alpha0.0000
highest_alpha159700000.0000
n_real_points40
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.931
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
