9x0l
Cryo-EM Structure of Turbo sazae ferritin chain B

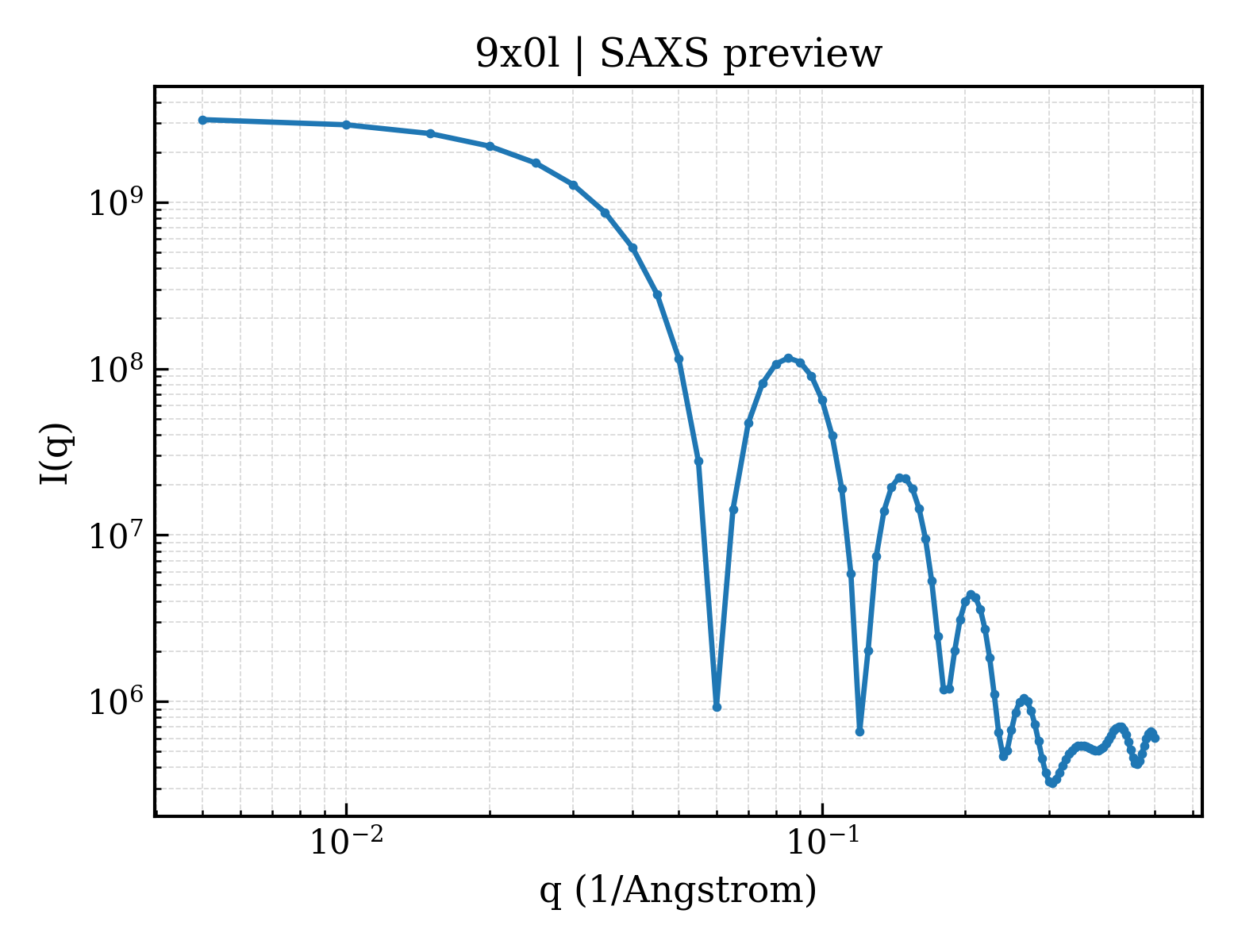

SAXS Profile

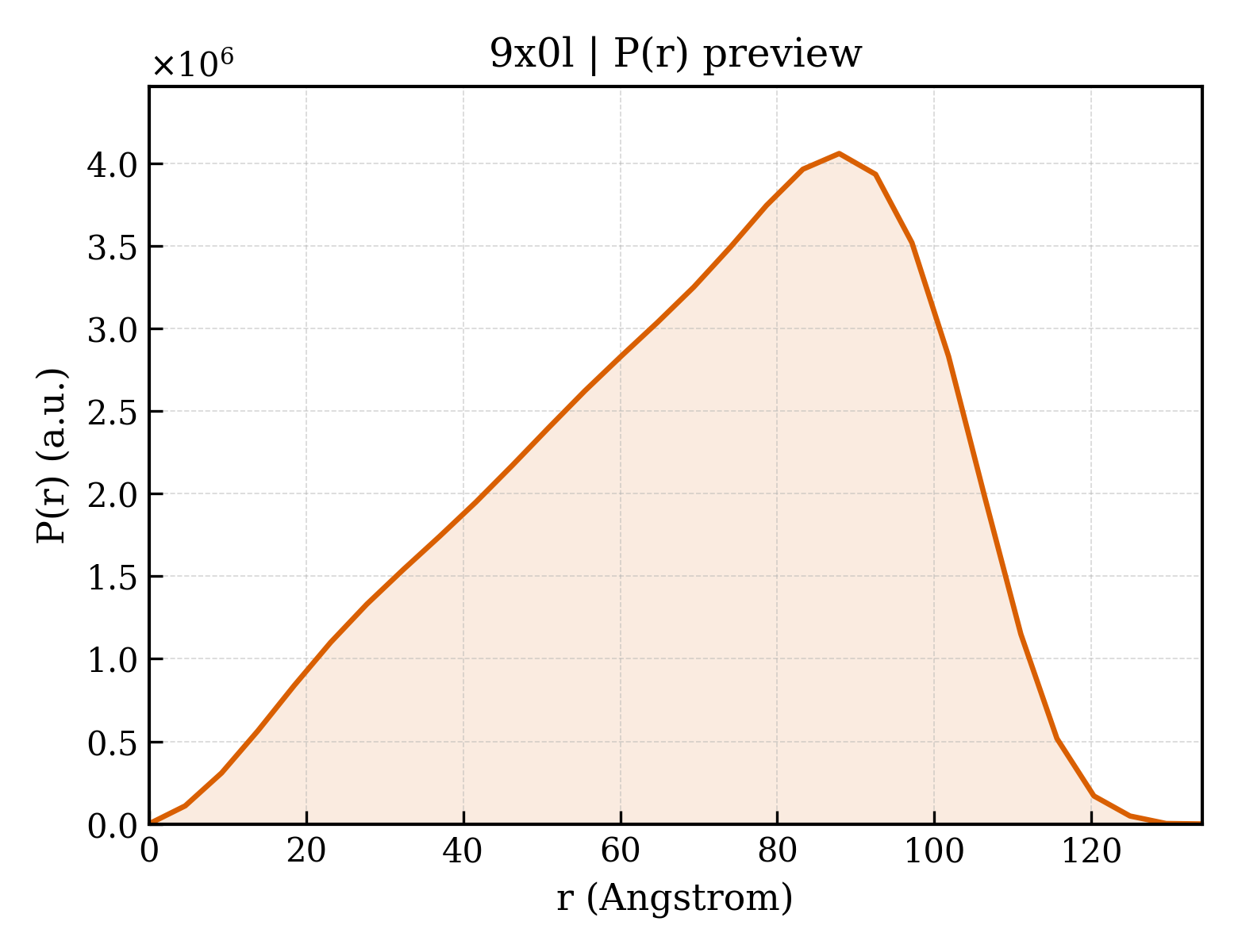

P(r) Distribution
1. Structure Basics
| entry_id | 9x0l |
| deposition_date | 2025-09-30 |
| title | Cryo-EM Structure of Turbo sazae ferritin chain B |
| keywords | Apoferritin, Iron, Storage, 24-mer, Metal Binding, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 53.61 Å |
| rg_electron | 52.69 Å |
| i0 | 3209330000.00 |
| molecular_weight | 474060.0 kDa |
| excluded_volume | 592170 ų |
| envelope_volume | 940410 ų |
| shell_volume | 145770 ų |
| envelope_diameter | 135.0 Å |
| shell_rg | 63.19 Å |
| envelope_rg | 47.45 Å |
| shape_rg | 52.65 Å |
| total_rg | 53.16 Å |
| total_atoms | 33336 |
| n_residues | 4080 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 134.1 Å |
| rg_real | 53.08 Å |
| rg_real_error | 0.42 Å |
| i0_real | 3.2090e+09 |
| i0_real_error | 5.3370e+07 |
| rg_reciprocal | 54.05 Å |
| i0_reciprocal | 3214000000.0000 |
| total_estimate | 0.7929 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 87.9 Å |
| skewness | -0.401 |
| kurtosis | -0.632 |
| angular_range | — – 0.1450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19240000000.0000 |
| n_real_points | 30 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.876; Smooth: 0.000 |
