9x0n

Crystal structure of a self-sufficient cytochrome P450 from Shimazuella soli.

Method: X-RAY DIFFRACTION Dmax: 128.0 Å Quality: GOOD

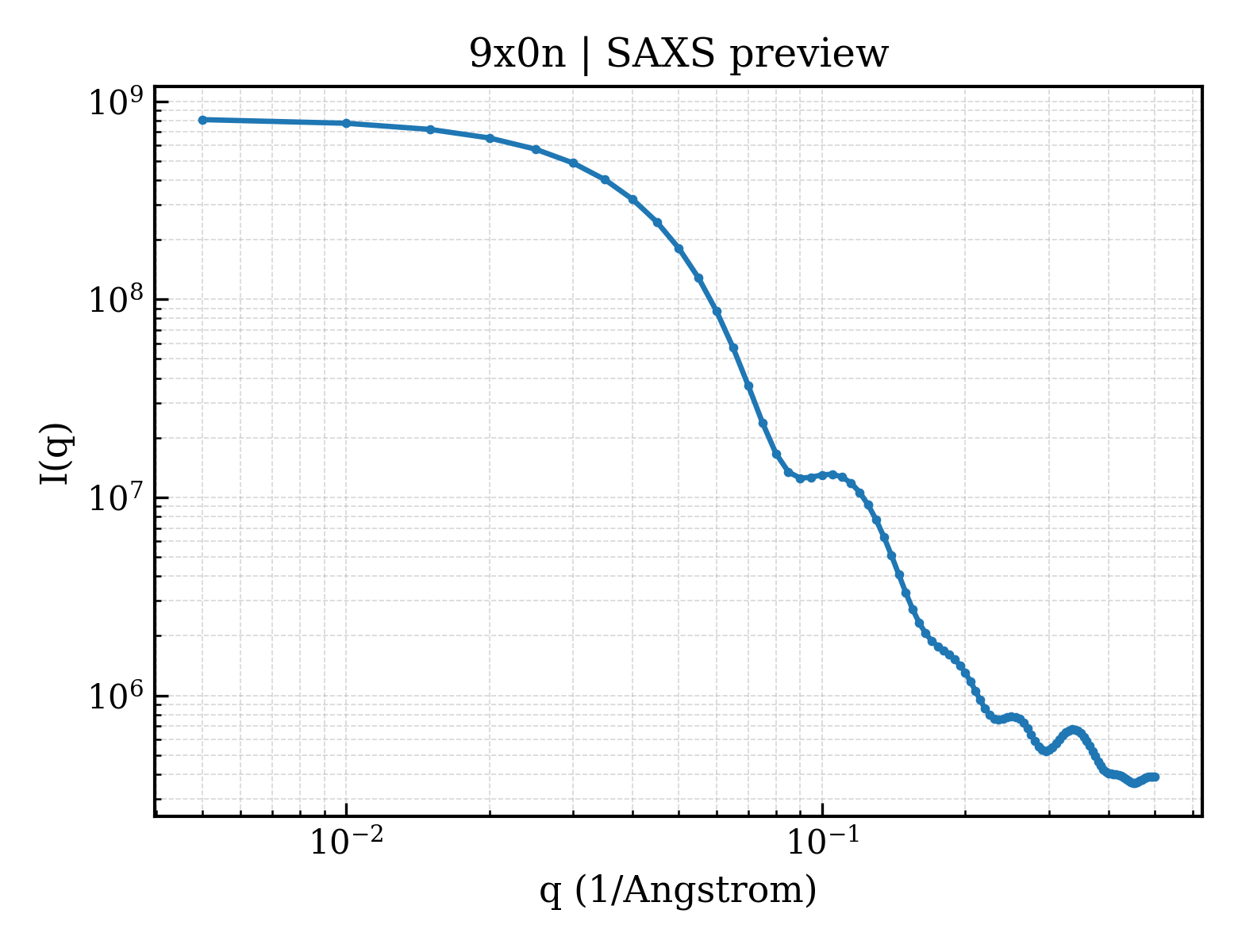

SAXS Profile

SAXS profile for 9x0n

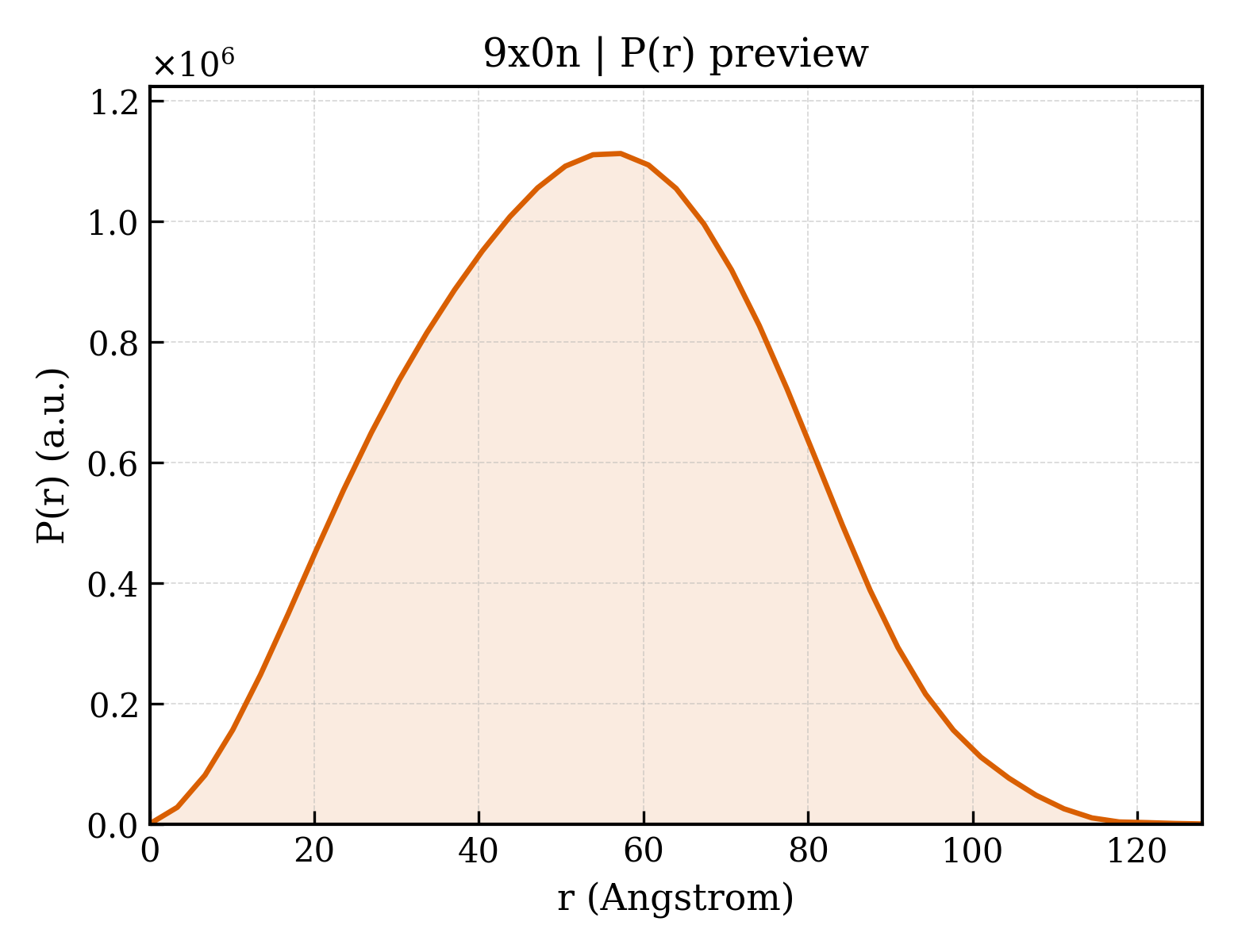

P(r) Distribution

P(r) distribution for 9x0n
▼

1. Structure Basics

entry_id9x0n
deposition_date2025-09-30
last_revision2026-05-27
titleCrystal structure of a self-sufficient cytochrome P450 from Shimazuella soli.
keywordscytochrome P450, self-sufficient, Heme, OXIDOREDUCTASE; OXIDOREDUCTASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier41.26 Å
rg_electron40.51 Å
i0818146000.00
molecular_weight234570.0 kDa
excluded_volume293250 ų
envelope_volume376070 ų
shell_volume75585 ų
envelope_diameter132.7 Å
shell_rg47.74 Å
envelope_rg39.54 Å
shape_rg40.52 Å
total_rg40.85 Å
total_atoms16522
n_residues2037
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax128.0 Å
rg_real41.03 Å
rg_real_error0.82 Å
i0_real8.1810e+08
i0_real_error1.2930e+07
rg_reciprocal41.25 Å
i0_reciprocal818300000.0000
total_estimate0.8943
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary57.2 Å
skewness0.069
kurtosis-0.529
angular_range— – 0.1900 Å−1
current_alpha0.0000
highest_alpha135000000.0000
n_real_points39
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.902
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
