9x16

Crystal structure of Frog M-ferritin E130A_M161Q_L165D_K168E_H169D mutant

Method: X-RAY DIFFRACTION D_max: 69.2 Å Quality: GOOD

SAXS Profile

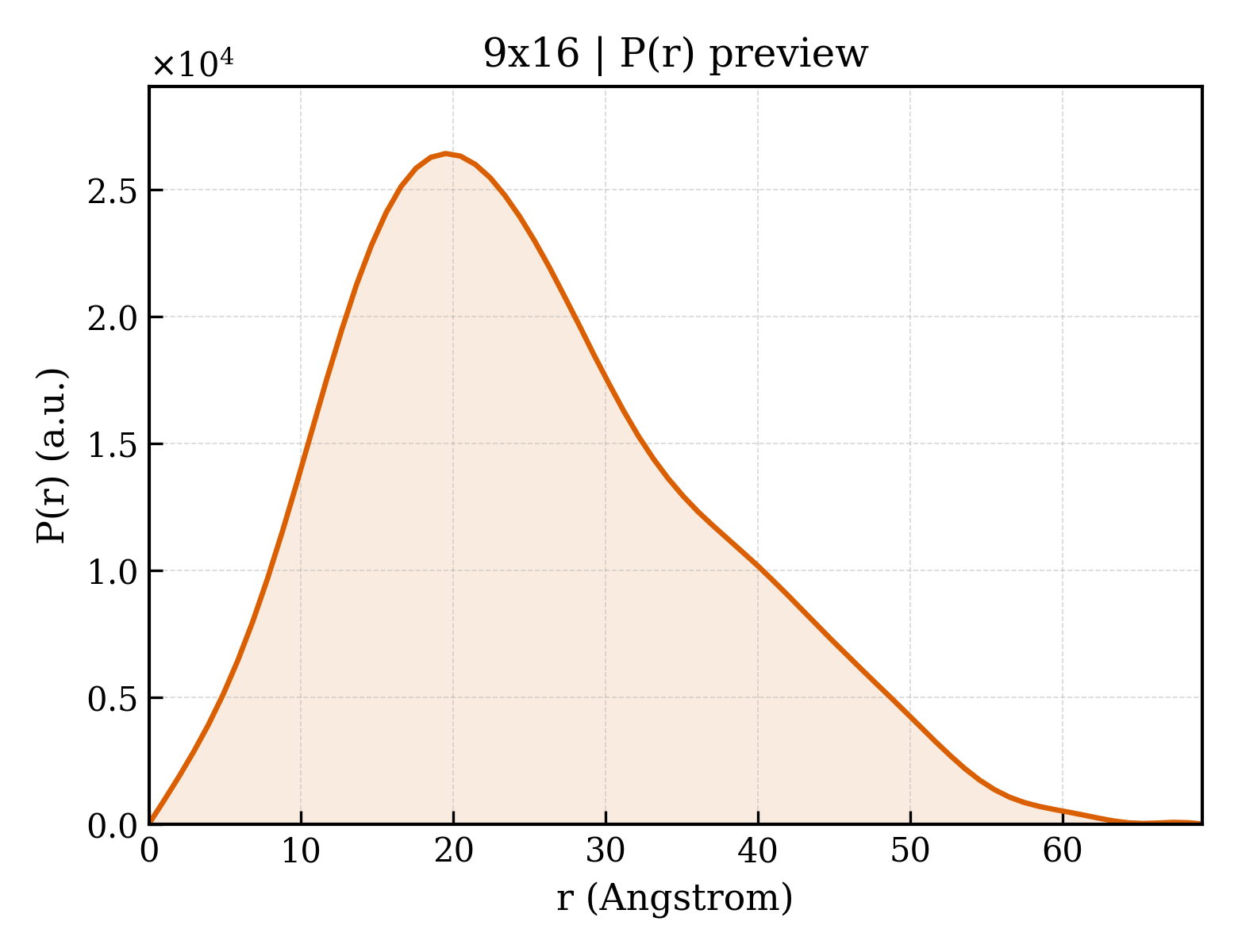

P(r) Distribution

▼

1. Structure Basics

entry_id	9x16
deposition_date	2025-10-01
last_revision	2026-04-15
title	Crystal structure of Frog M-ferritin E130A_M161Q_L165D_K168E_H169D mutant
keywords	Ferritin, Metal binding, metal transport and storage, METAL TRANSPORT; METAL TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.37 Å
rg_electron	18.39 Å
i0	9229690.00
molecular_weight	21002.0 kDa
excluded_volume	25543 Å³
envelope_volume	30415 Å³
shell_volume	14744 Å³
envelope_diameter	68.5 Å
shell_rg	23.40 Å
envelope_rg	18.86 Å
shape_rg	18.32 Å
total_rg	19.35 Å
total_atoms	1451
n_residues	174
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	69.2 Å
rg_real	19.50 Å
rg_real_error	0.57 Å
i0_real	9.2300e+06
i0_real_error	1.2140e+05
rg_reciprocal	19.48 Å
i0_reciprocal	9230000.0000
total_estimate	0.8190
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	19.5 Å
skewness	0.512
kurtosis	-0.246
angular_range	— – 0.4100 Å⁻¹
current_alpha	0.0000
highest_alpha	1897000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.644; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.716; Smooth: 0.997

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Ferritin, middle subunit
formula_weight	20322.6 kDa
ec_number	1.16.3.1
mutation	E130A,M161Q,L165D,K168E,H169D
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1739

VSQVRQNYHSDCEAAVNRMLNLELYASYTYSSMYAFFDRDDVALHNVAEFFKEHSHEEREHAEKFMKYQNKRGGRVVLQDIKKPERDEWGNTLEAMQAALQLEKTVNQALLDLHKLATDKVDPHLCDFLASEYLEEQVKDIKRIGDFITNLKRLGLPENGQGEYDFDEDSVKES

Source

organism	Aquarana catesbeiana
common_name	American bullfrog
ncbi_taxonomy_id	8400
host_organism	Escherichia coli

Entity 2 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	7

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	16

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	209

▶

6. Citations (1)

▶

length_a	183.950 Å
length_b	183.950 Å
length_c	183.950 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	96

space_group	F 4 3 2
int_tables_number	209
crystal_system	—

resolution	1.550 Å
resolution_low	46.030 Å
r_factor	—
r_work	0.1270
r_free	0.1530
