PbaB1 in Complex with PbaA leader peptide

entry_id	9x90
deposition_date	2025-10-20
title	PbaB1 in Complex with PbaA leader peptide
keywords	Complex, RRE, Leader peptide, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
method	X-RAY DIFFRACTION

rg_guinier	20.37 Å
rg_electron	19.45 Å
i0	10014600.00
molecular_weight	23991.0 kDa
excluded_volume	30281 ų
envelope_volume	37329 ų
shell_volume	16615 ų
envelope_diameter	78.7 Å
shell_rg	25.00 Å
envelope_rg	19.92 Å
shape_rg	19.43 Å
total_rg	20.39 Å
total_atoms	1685
n_residues	216
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	75.7 Å
rg_real	20.41 Å
rg_real_error	0.87 Å
i0_real	1.0010e+07
i0_real_error	1.7110e+05
rg_reciprocal	20.41 Å
i0_reciprocal	10010000.0000
total_estimate	0.7484
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	21.6 Å
skewness	0.449
kurtosis	-0.037
angular_range	— – 0.3900 Å−1
current_alpha	0.0000
highest_alpha	2733000.0000
n_real_points	71
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.621; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.864; Smooth: 0.000

Unit Cell

length_a	49.788 Å
length_b	49.788 Å
length_c	135.008 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	P 43
int_tables_number	78
crystal_system	tetragonal

Refinement

resolution	2.000 Å
resolution_low	46.710 Å
r_factor	0.2314
r_work	0.2294
r_free	0.2547

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/x9/9x90/pr_distribution.json
• pr_output /app/data/pr_computation/x9/9x90/9x90.pr.out

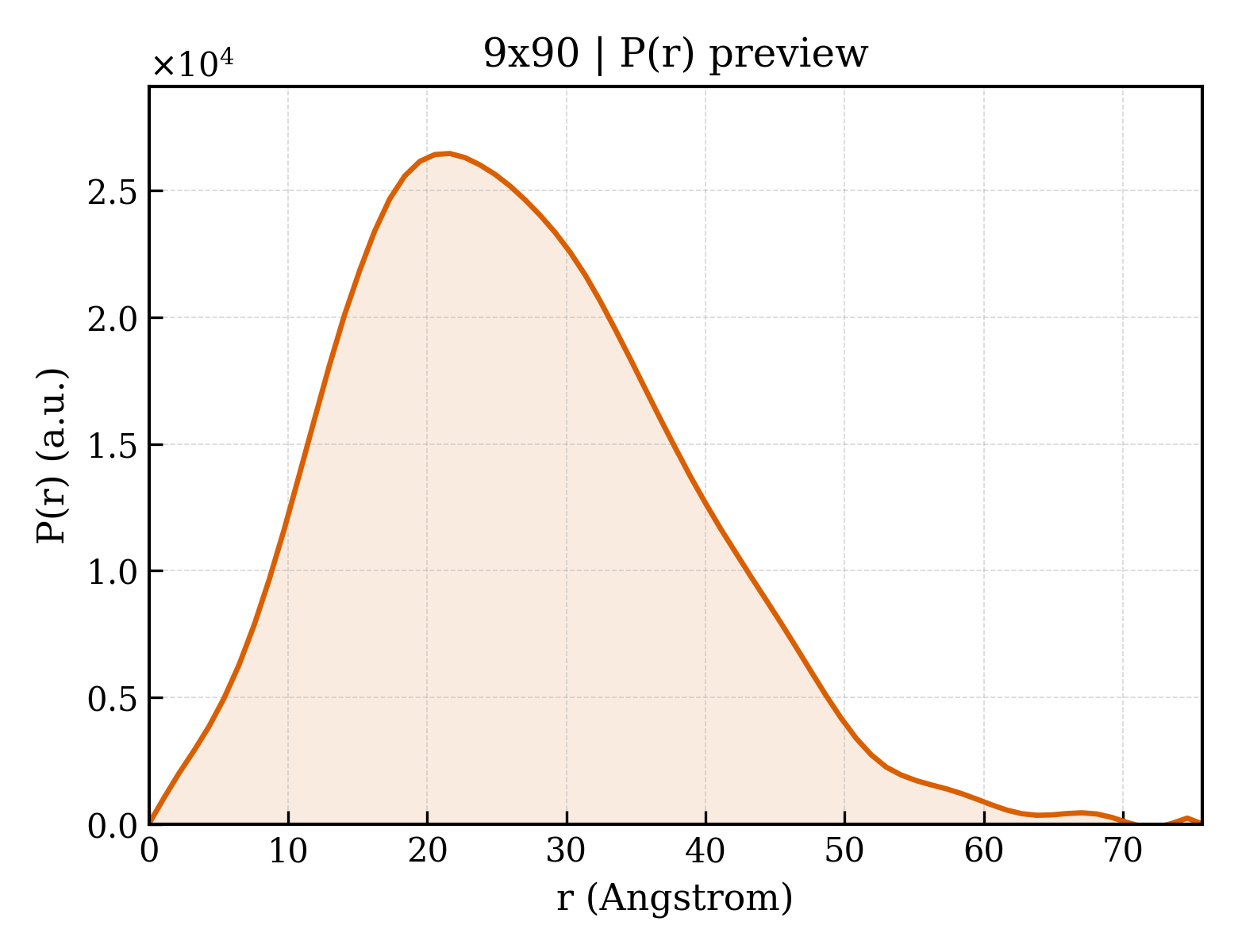

• pr_plot /app/data/visualization/pr_computation/x9/9x90/9x90_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/x9/9x90/9x90.dat
• saxs_fit /app/data/saxs_computation/x9/9x90/9x90.fit
• saxs_log /app/data/saxs_computation/x9/9x90/9x90.log

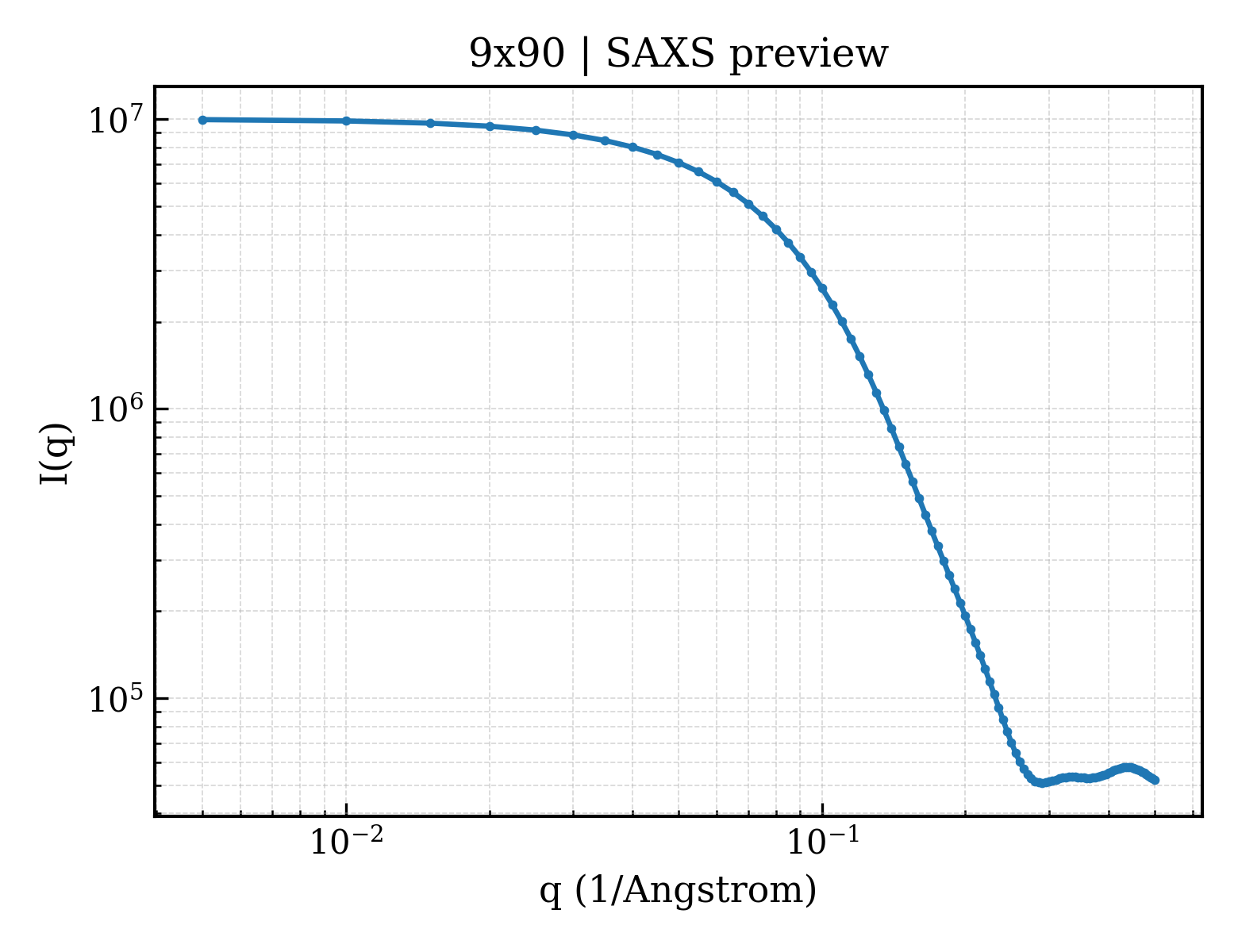

• saxs_plot /app/data/visualization/saxs_computation/x9/9x90/9x90_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/x9/9x90/9x90.fit
pddf	/app/data/pr_computation/x9/9x90/9x90.pr.out
profile	/app/data/saxs_computation/x9/9x90/9x90.dat
