SAXSdb — 9xe7

▼

1. Structure Basics

entry_id	9xe7
deposition_date	2025-10-27
title	Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 10-bp RNA product and incorporated cytidine
keywords	RNA polymerase, VIRUS, VIRAL PROTEIN/RNA, VIRAL PROTEIN-RNA complex; VIRAL PROTEIN/RNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.61 Å
rg_electron	45.23 Å
i0	2112670000.00
molecular_weight	377740.0 kDa
excluded_volume	470940 Å³
envelope_volume	632700 Å³
shell_volume	108490 Å³
envelope_diameter	156.8 Å
shell_rg	55.16 Å
envelope_rg	45.09 Å
shape_rg	45.23 Å
total_rg	45.58 Å
total_atoms	26422
n_residues	3226
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	142.5 Å
rg_real	45.33 Å
rg_real_error	0.80 Å
i0_real	2.1130e+09
i0_real_error	3.2890e+07
rg_reciprocal	45.61 Å
i0_reciprocal	2113000000.0000
total_estimate	0.6589
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	57.0 Å
skewness	0.154
kurtosis	-0.425
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	296600000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 0.010; Positv: 1.000; Valcen: 0.970; Smooth: 0.877

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	448527.5 kDa
ec_number	3.4.19.12,3.4.22.-,3.1.-.-,2.7.7.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	26422

MDFLRSLDWTQVIAGQYVSNPRFNISDYFEIVRQPGDGNCFYHSIAELTMPNKTDHSYHYIKRLTESAARKYYQEEPEARLVGLSLEDYLKRMLSDNEWGSTLEASMLAKEMGITIIIWTVAASDEVEAGIKFGDGDVFTAVNLLHSGQTHFDALRILPQFETDTREALSLMDRVIAVDQLTSSSSDELQDYEDLALALTSAEESNRRSSLDEVTLSKKQAEILRQKASQLSKLVNKSQNIPTRVGRVLDCMFNCKLCVEISADTLILRPESKEKIGEIMSLRQLGHKLLTRDKQIKQEFSRMKLYVTKDLLDHLDVGGLLRAAFPGTGIERHMQLLHSEMILDICTVSLGVMLSTFLYGSNNKNKKKFITNCLLSTALSGKKVYKVLGNLGNELLYKAPRKALATVCSALFGKQINKLQNCFRTISPVSLLALRNLDFDCLSVQDYNGMIENMSKLDNTDVEFNHREIADLNQLTSRLITLRKEKDTDLLKQWFPESDLTRRSIRNAANAEEFVISEFFKKKDIMKFISTSGRAMSAGKIGNVLSYAHNLYLSKSSLNMTSEDISQLLIEIKRLYALQEDSEVEPIAIICDGIESNMKQLFAILPPDCARECEVLFDDIRNSPTHSTAWKHALRLKGTAYEGLFANCYGWQYIPEDIKPSLTMLIQTLFPDKFEDFLDRTQLHPEFRDLTPDFSLTQKVHFKRNQIPSVENVQISIDATLPESVEAVPVTERKMFPLPETPLSEVHSIERIMENFTRLMHGGRLSTKKRDGDPAEQGNQQSITEHESSSISAFKDYGERGIVEENHMKFSGEDQLETRQLLLVEVGFQTDIDGKIRTDHKKWKDILKLLELLGIKCSFIACADCSSTPPDRWWITEDRVRVLKNSVSFLFNKLSRNSPTEVTDIVVGAISTQKVRSYLKAGTATKTPVSTKDVLETWEKMKEHILNRPTGLTLPTSLEQAMRKGLVEGVVISKEGSESCINMLKENLDRITDEFERTKFKHELTQNITTSEKMLLSWLSEDIKSSRCGECLSNIKKAVDETANLSEKIELLAYNLQLTNHCSNCHPNGVNISNTSNVCKRCPKIEVVSHCENKGFEDSNECLTDLDRLVRLTLPGKTEKERRVKRNVEYLIKLMMSMSGIDCIKYPTGQLITHGRVSAKHNDGNLKDRSDDDQRLAEKIDTVRKELSESKLKDYSTYARGVISNSLKNLSRQGKSKCSVPRSWLEKVLFDLKVPTKDEEVLINIRNSLKARSEFVRNNDKLLIRSKEELKKCFDVQSFKLKKNKQPVPFQVDCILFKEVAAECMKRYIGTPYEGIVDTLVSLINVLTRFTWFQEVVLYGKICETFLRCCTEFNRSGVKLVKIRHCNINLSVKLPSNKKENMLCCLYSGNMELLQGPFYLNRRQAVLGSSYLYIVITLYIQVLQQYRCLEVINSVSEKTLQDIENHSMTLLEDSFREITFALEGRFEESYKIRTSRCRASGNFLNRSSRDHFISVVSGLNLVYGFLIKDNLLANSQQQNKQLQMLRFGMLAGLSRLVCPNELGKKFSTSCRRIEDNIARLYLQTSIYCSVRDVEDNVKHWKQRDLCPEVTIPCFTVYGTFVNSDRQLIFDIYNVHIYNKEMDNFDEGCISVLEETAERHMLWELDLMNSLCSDEKKDTRTARLLLGCPNVRKAANREGKKLLKLNSDTSTDTQSIASEVSDRRSYSSSKSRIRSIFGRYNSQKKPFELRSGLEVFNDPFNDYQQAITDICQFSEYTPNKESILKDCLQIIRKNPSHTMGSFELIQAISEFGMSKFPPENIDKARRDPKNWVSISEVTETTSIVASPRTHMMLKDCFKIILGTENKKIVKMLRGKLKKLGAISTNIEIGKRDCLDLLSTVDGLTDQQKENIVNGIFEPSKLSFYHWKELVKKNIDEVLLTEDGNLIFCWLKTISSSVKGSLKKRLKFMNIHSPELMPENCLFSSEEFNELIKLKKLLLNEQQDEQELKQDLLISSWIKCITACKDFASINDKIQKFIYHLSEELYDIRLQHLELSKLKQEHPSVSFTKEEVLIKRLEKNFLKQHNLEIMETVNLVFFAALSAPWCLHYKALESYLVRHPEILDCGSKEDCKLTLLDLSVSKLLVCLYQKDDEELINSSSLKLGFLVKYVVTLFTSNGEPFSLSLNDGGLDLDLHKTTDEKLLHQTKIVFAKIGLSGNSYDFIWTTQMIANSNFNVCKRLTGRSTGERLPRSVRSKVIYEMVKLVGETGMAILQQLAFAQALNYEHRFYAVLAPKAQLGGARDLLVQETGTKVMHATTEMFSRNLLKTTSDDGLTNPHLKETILNVGLDCLANMRNLDGKPISEGSNLVNFYKVICISGDNTKWGPIHCCSFFSGMMQQVLKNVPDWCSFYKLTFIKNLCRQVEIPAGSIKKILNVLRYRLCSKGGVEQHSEEDLRRLLTDNLDSWDGNDTVKFLVTTYISKGLMALNSYNHMGQGIHHATSSVLTSLAAVLFEELAIFYLKRSLPQTTVHVEHAGSSDDYAKCIVVTGILSKELYSQYDETFWKHACRLKNFTAAVQRCCQMKDSAKTLVSDCFLEFYSEFMMGYRVTPAVIKFMFTGLINSSVTSPQSLMQACQVSSQQAMYNSVPLVTNTAFTLLRQQIFFNHVEDFIRRYGILTLGTLSPFGRLFVPTYSGLVSSAVALEDAEVIARAAQTLQMNSVSIQSSSLTTLDSLGRSRTSSTAEDSSSVSDTTAASHDSGSSSSSFSFELNRPLSETELQFIKALSSLKSTQACEVIQNRITGLYCNSNEGPLDRHNVIYSSRMADSCDWLKDGKRRGNLELANRIQSVLCILIAGYYRSFGGEGTEKQVKASLNRDDNKIIEDPMIQLIPEKLRRELERLGVSRMEVDELMPSISPDDTLAQLVAKKLISLNVSTEEYSAEVSRLKQTLTARNVLHGLAGGIKELSLPIYTIFMKSYFFKDNVFLSLTDRWSTKHSTNYRDSCGKQLKGRIITKYTHWLDTFLGCSVSINRHTTVKEPSLFNPNIRCVNLITFEDGLRELSVIQSHLKVFENEFTNLNLQFSDPNRQKLRIVESRPAESELEANRAVIVKTKLFSATEQVRLSNNPAVVMGYLLDESAISEVKPTKVDFSNLLKDRFKIMQFFPSVFTLIKMLTDESSDSEKSGLSPDLQQVARYSNHLTLLSRMIQQAKPTVTVFYMLKGNLMNTEPTVAELVSYGIKEGRFFRLSDTGVDASTYSVKYWKILHCISAIGCLPLSQADKSSLLMSFLNWRVNMDIRTSDCPLSSHEASILSEFDGQVIANILASELSSVKRDSEREGLTDLLDYLNSPTELLKKKPYLGTTCKFNTWGDSNRSGKFTYSSRSGESIGIFIAGKLHIHLSSESVALLCETERQVLSWMSKRRTEVITKEQHQLFLSLLPQSHECLQKHKDGSALSVIPDSSNPRLLKFVPLKKGLAVVKIKKQILTVKKQVVFDAESEPRLQWGHGCLSIVYDETDTQTTYHENLLKVKHLVDCSTDRKKLLPQSVFSDSKVVLSRIKFKTELLLNSLTLLHCFLKHAPSDAIMEVESKSSLLHKYLKSGGVRQRNTEVLFREKLNKVVIKDNLEQGVEEEIEFCNNLTKTVSENPLPLSCWSEVQNYIEDIGFNNVLVNIDRNTVKSELLWKFTLDTNVSTTSTIKDVRTLVSYVSTETIPKFLLAFLLYEEVLMNLINQCKAVKELINSTGLSDLELESLLTLCAFYFQSECSKRDGPRCSFAALLSLIHEDWQRIGKNILVRANNELGDVSLKVNIVLVPLKDMSKPKSERVVMARRSLNHALSLMFLDEMSLPELKSLSVNCKMGNFEGQECFEFTILKDNSARLDYNKLIDHCVDMEKKREAVRAVEDLILMLTGRAVKPSAVTQFVHGDEQCQEQISLDDLMANDTVTDFPDREAEALKTGNLGFNWDSD

Source

organism	Crimean-Congo hemorrhagic fever virus strain IbAr10200
common_name	CCHFV
ncbi_taxonomy_id	652961
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	;RNA (5'-R(UPUPCPCPAPAPAPAPAPAPAPUPCPGPUPUPCPCP*C)-3') ;
formula_weight	5966.6 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	B

UUCCAAAAAAAUCGUUCCC

Entity 3 polymer

description	;RNA (5'-R(GPGPGPAPUPUPGPAPAPGPUPCPUPUPUPGPAPGP*A)-3') ;
formula_weight	6159.7 kDa
src_method	syn
entity_count	2

Polymer

type	polyribonucleotide
strand_id	C,E

GGGAUUGAAGUCUUUGAGA

Entity 4 polymer

description	;RNA (5'-R(UPCPUPCPAPAPAPGPAPC)-3') ;
formula_weight	3144.9 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	D

UCUCAAAGAC

Entity 5 polymer

description	;RNA (5'-R(PUPCPUPC)-3') ;
formula_weight	1177.7 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	F

UCUC

Entity 6 non-polymer

description	5'-O-[(S)-hydroxy{[(S)-hydroxy(phosphonooxy)phosphoryl]amino}phosphoryl]uridine
formula_weight	483.2 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	4

Entity 8 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.020 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.02 Å
resolution_method	—
num_particles	59907

fit	/app/data/saxs_computation/xe/9xe7/9xe7.fit
pddf	/app/data/pr_computation/xe/9xe7/9xe7.pr.out
profile	/app/data/saxs_computation/xe/9xe7/9xe7.dat

Crimean-Congo hemorrhagic fever virus RNA polymerase containing a 10-bp RNA product and incorporated cytidine

SAXS Profile

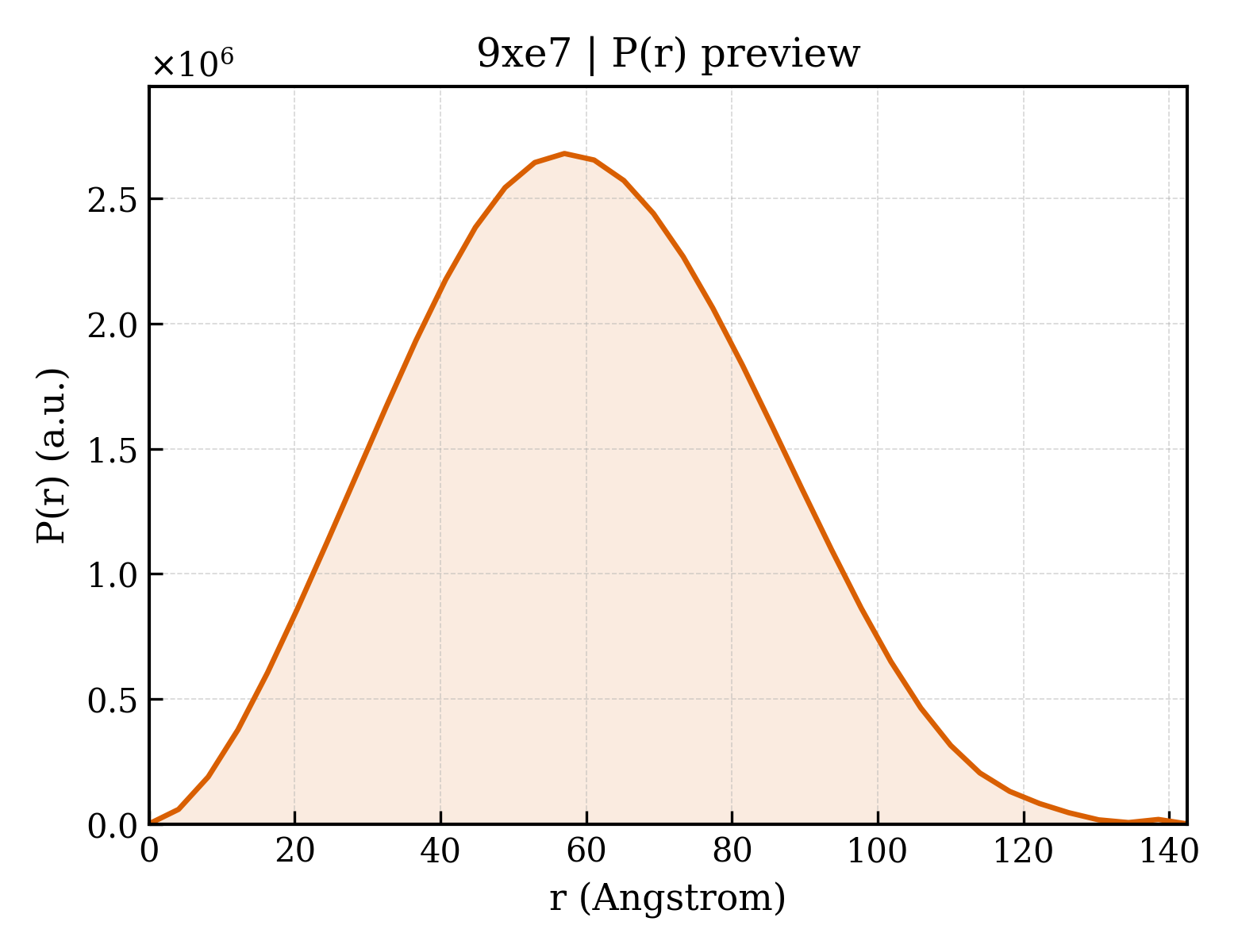

P(r) Distribution
