;Pilus-like-alpha, a bacteria pilus-like structure obtained from a Karst cave from Guilin City, Guangxi Zhuang Autonomous Region, China ;
SAXS Profile

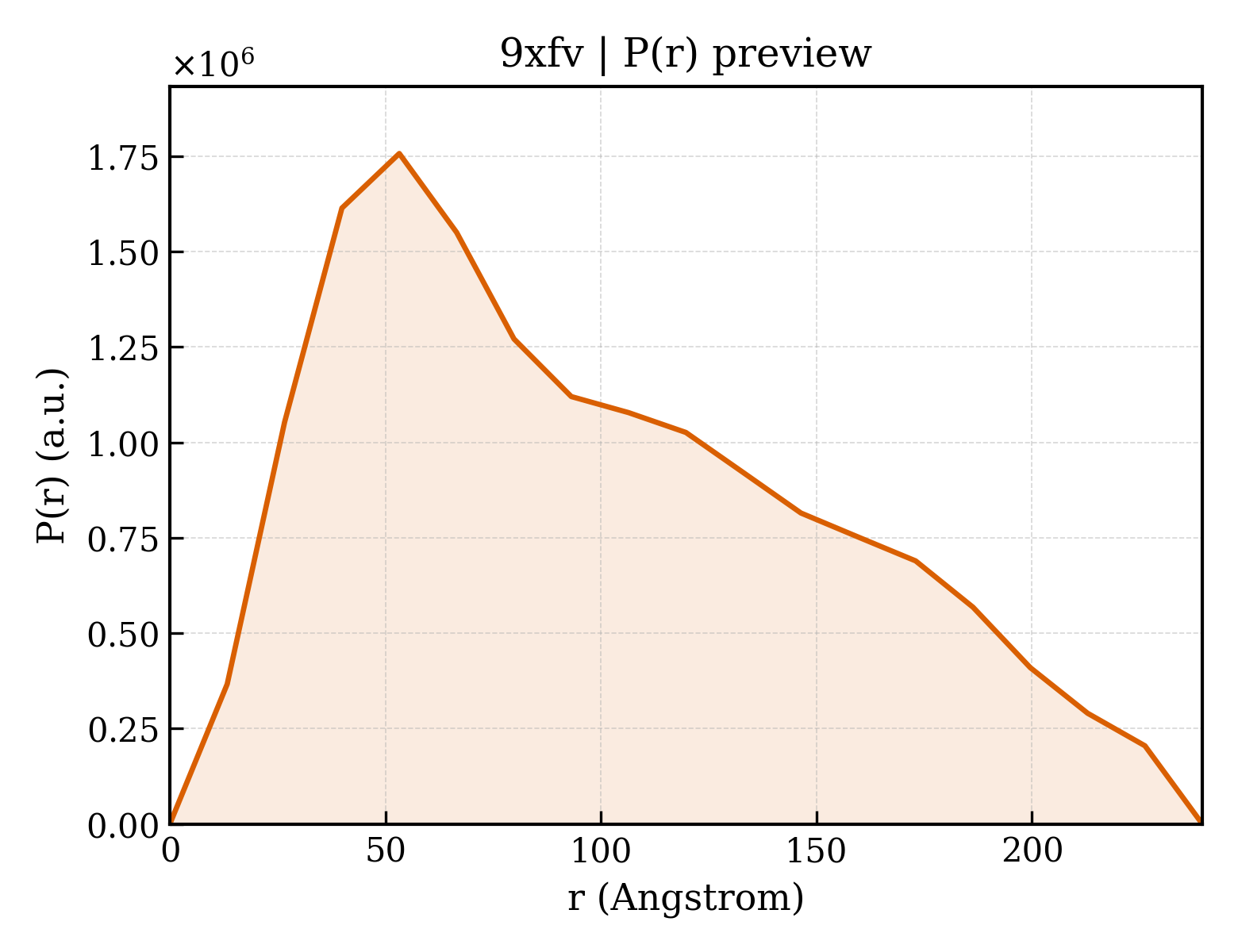

P(r) Distribution
1. Structure Basics
| entry_id | 9xfv |
| deposition_date | 2025-10-29 |
| title | ;Pilus-like-alpha, a bacteria pilus-like structure obtained from a Karst cave from Guilin City, Guangxi Zhuang Autonomous Region, China ; |
| keywords | Bacteria Pilus, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 85.43 Å |
| rg_electron | 87.87 Å |
| i0 | 2704570000.00 |
| molecular_weight | 437640.0 kDa |
| excluded_volume | 547000 ų |
| envelope_volume | 877880 ų |
| shell_volume | 99078 ų |
| envelope_diameter | 318.3 Å |
| shell_rg | 58.69 Å |
| envelope_rg | 88.72 Å |
| shape_rg | 87.87 Å |
| total_rg | 87.38 Å |
| total_atoms | 30825 |
| n_residues | 4325 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 239.5 Å |
| rg_real | 78.97 Å |
| rg_real_error | 1.49 Å |
| i0_real | 2.5890e+09 |
| i0_real_error | 5.3710e+07 |
| rg_reciprocal | 78.45 Å |
| i0_reciprocal | 2652000000.0000 |
| total_estimate | 0.8172 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 53.2 Å |
| skewness | 0.491 |
| kurtosis | -0.741 |
| angular_range | — – 0.0900 Å−1 |
| current_alpha | 0.5376 |
| highest_alpha | 151300000.0000 |
| n_real_points | 19 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.627; Stabil: 0.961; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.011 |
