9xgl
D-alanyl carrier protein

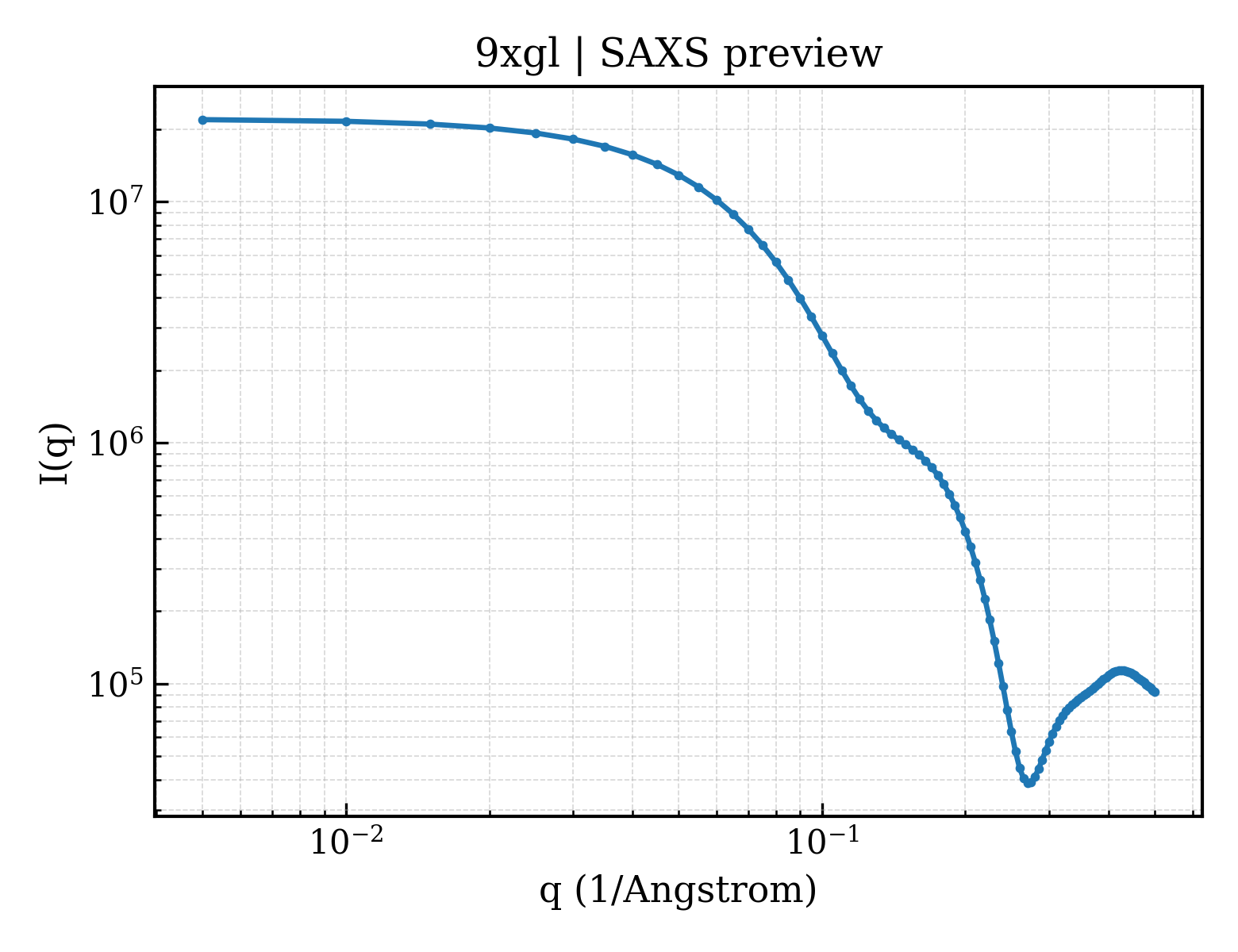

SAXS Profile

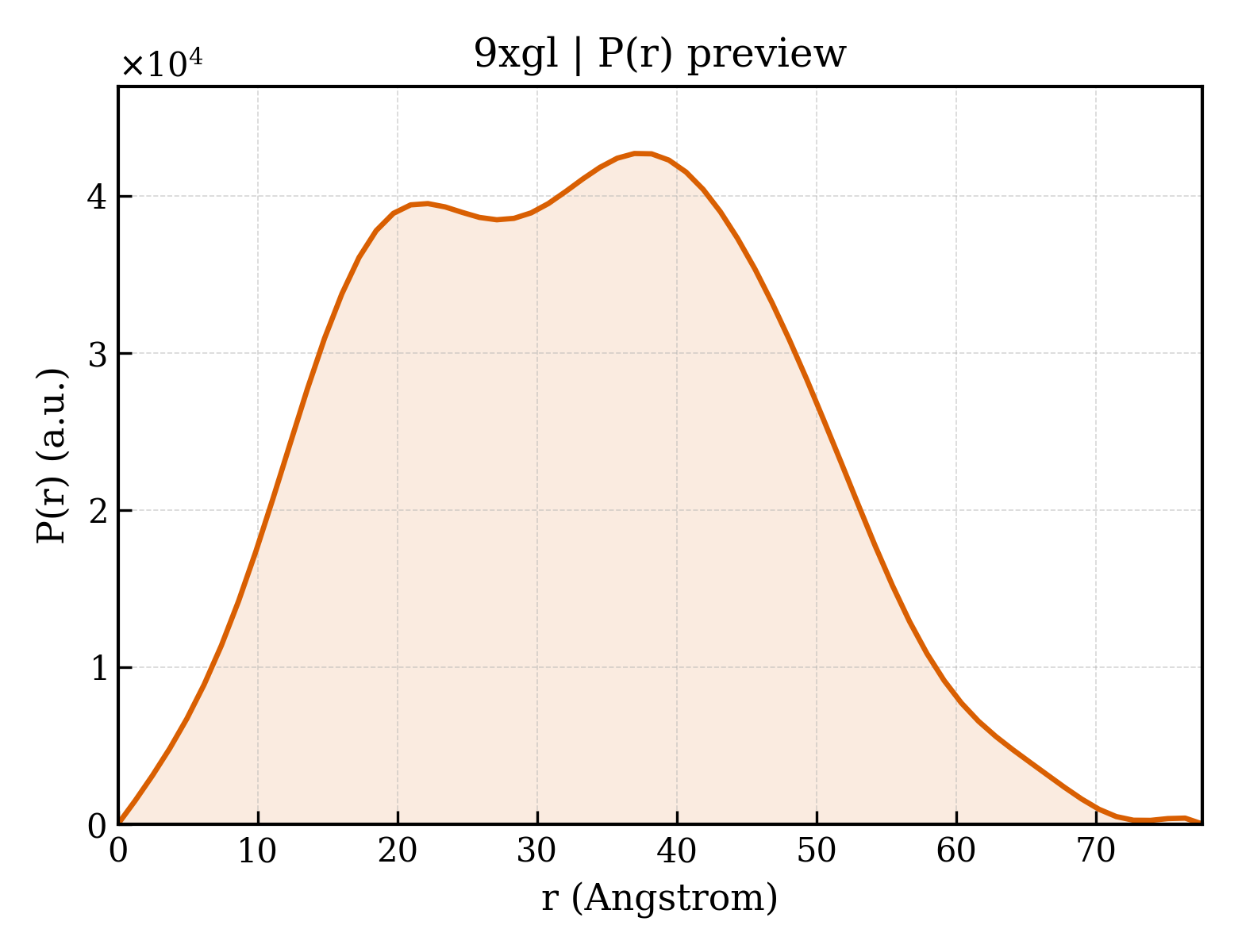

P(r) Distribution
1. Structure Basics
| entry_id | 9xgl |
| deposition_date | 2025-10-30 |
| title | D-alanyl carrier protein |
| keywords | ligase, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.27 Å |
| rg_electron | 24.26 Å |
| i0 | 22007400.00 |
| molecular_weight | 36124.0 kDa |
| excluded_volume | 45351 ų |
| envelope_volume | 58852 ų |
| shell_volume | 20866 ų |
| envelope_diameter | 80.1 Å |
| shell_rg | 30.26 Å |
| envelope_rg | 23.99 Å |
| shape_rg | 24.22 Å |
| total_rg | 25.19 Å |
| total_atoms | 2544 |
| n_residues | 312 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.6 Å |
| rg_real | 25.21 Å |
| rg_real_error | 0.51 Å |
| i0_real | 2.2010e+07 |
| i0_real_error | 3.0660e+05 |
| rg_reciprocal | 25.23 Å |
| i0_reciprocal | 22010000.0000 |
| total_estimate | 0.9035 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 37.0 Å |
| skewness | 0.131 |
| kurtosis | -0.657 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 13600000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.969 |
