9xnh
;pilus-like-gamma, a bacteria pilus-Like structure obtained from a Karstcave from Guilin city, Guangxi ZhuangAutonomous Region, China ;
SAXS Profile

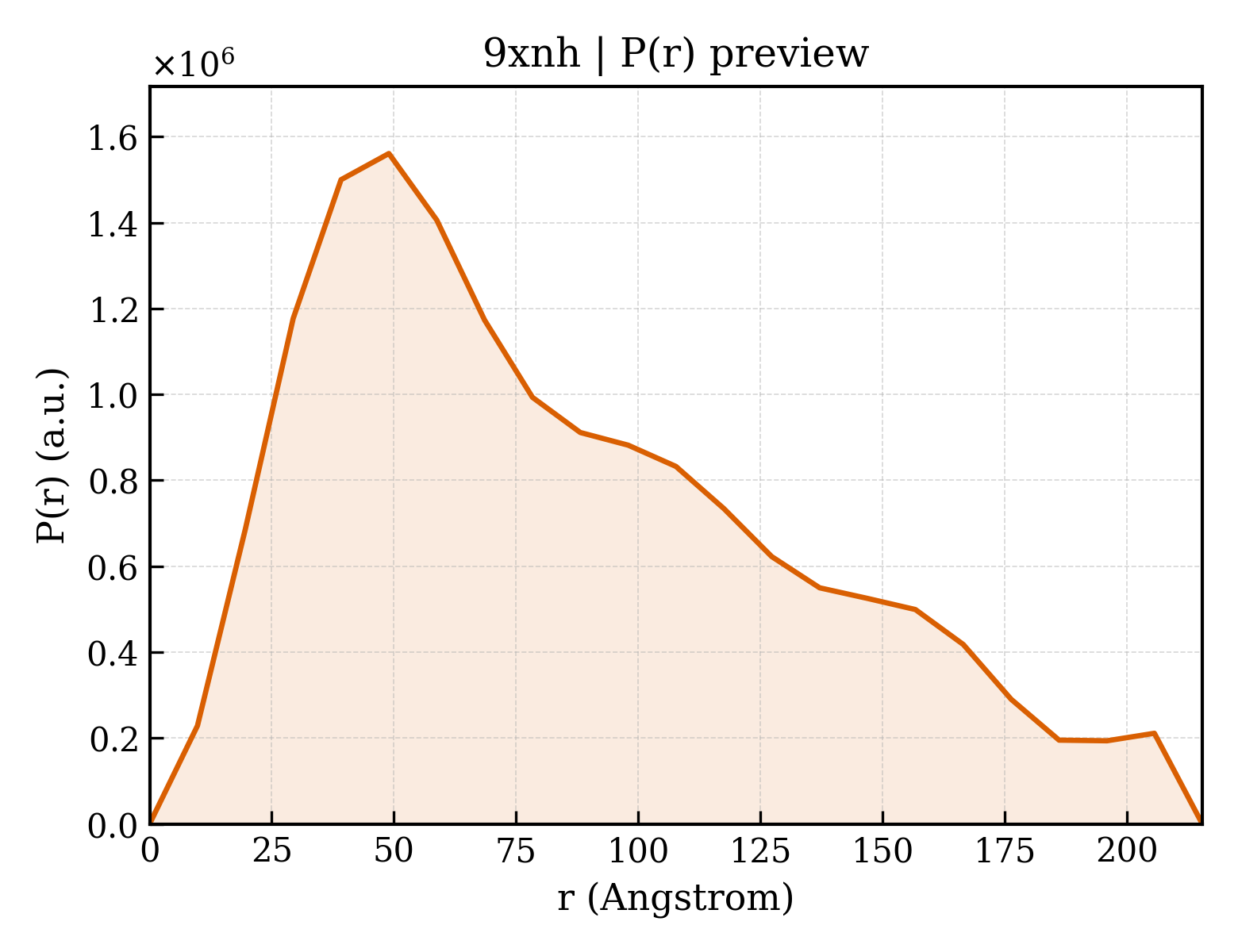

P(r) Distribution
1. Structure Basics
| entry_id | 9xnh |
| deposition_date | 2025-11-12 |
| title | ;pilus-like-gamma, a bacteria pilus-Like structure obtained from a Karstcave from Guilin city, Guangxi ZhuangAutonomous Region, China ; |
| keywords | Bacteria Pilus, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 70.14 Å |
| rg_electron | 71.96 Å |
| i0 | 1940180000.00 |
| molecular_weight | 382560.0 kDa |
| excluded_volume | 485210 ų |
| envelope_volume | 661000 ų |
| shell_volume | 89448 ų |
| envelope_diameter | 308.8 Å |
| shell_rg | 53.59 Å |
| envelope_rg | 73.98 Å |
| shape_rg | 71.95 Å |
| total_rg | 71.57 Å |
| total_atoms | 26796 |
| n_residues | 4048 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 215.4 Å |
| rg_real | 68.63 Å |
| rg_real_error | 1.94 Å |
| i0_real | 1.9180e+09 |
| i0_real_error | 4.2290e+07 |
| rg_reciprocal | 66.63 Å |
| i0_reciprocal | 1924000000.0000 |
| total_estimate | 0.5012 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 49.0 Å |
| skewness | 0.628 |
| kurtosis | -0.484 |
| angular_range | — – 0.1100 Å−1 |
| current_alpha | 0.0339 |
| highest_alpha | 311900000.0000 |
| n_real_points | 23 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.453; Stabil: 0.992; Sysdev: 0.006; Positv: 1.000; Valcen: 0.863; Smooth: 0.238 |
