9xzo
Crystal structure of AI-designed response regulator like protein M1X0B
SAXS Profile

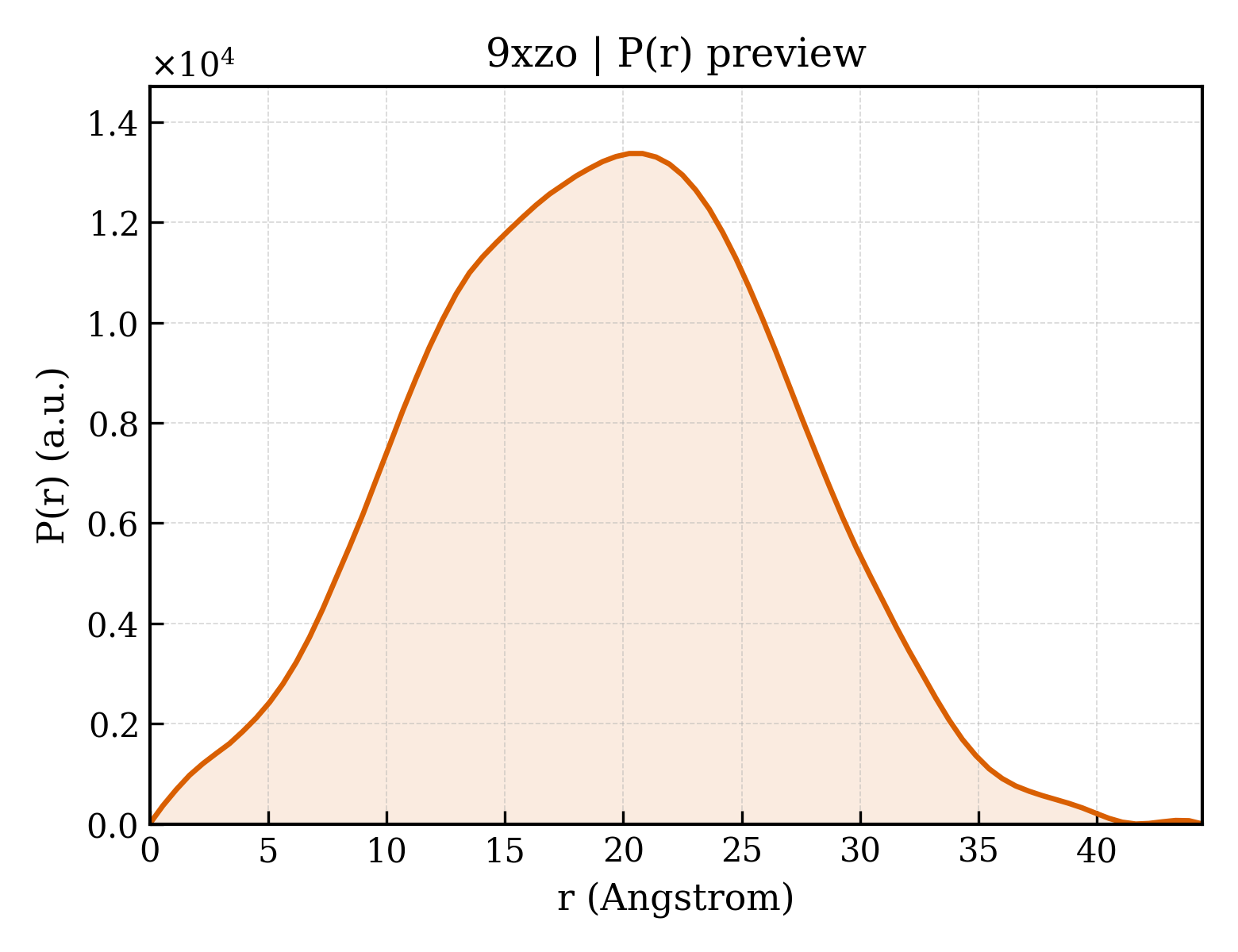

P(r) Distribution
1. Structure Basics
| entry_id | 9xzo |
| deposition_date | 2025-08-27 |
| title | Crystal structure of AI-designed response regulator like protein M1X0B |
| keywords | putative two-component response regulator, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.67 Å |
| rg_electron | 13.07 Å |
| i0 | 3344050.00 |
| molecular_weight | 13369.0 kDa |
| excluded_volume | 17084 ų |
| envelope_volume | 18964 ų |
| shell_volume | 12055 ų |
| envelope_diameter | 41.7 Å |
| shell_rg | 19.25 Å |
| envelope_rg | 13.45 Å |
| shape_rg | 13.05 Å |
| total_rg | 14.57 Å |
| total_atoms | 939 |
| n_residues | 120 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.4 Å |
| rg_real | 14.54 Å |
| rg_real_error | 0.26 Å |
| i0_real | 3.3440e+06 |
| i0_real_error | 3.4380e+04 |
| rg_reciprocal | 14.56 Å |
| i0_reciprocal | 3344000.0000 |
| total_estimate | 0.8905 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 43.3 Å |
| skewness | 0.030 |
| kurtosis | -0.405 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1156000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.879; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.965 |
