9y0n
Crystal structure of Escherichia coli DsbA G149K mutant
SAXS Profile

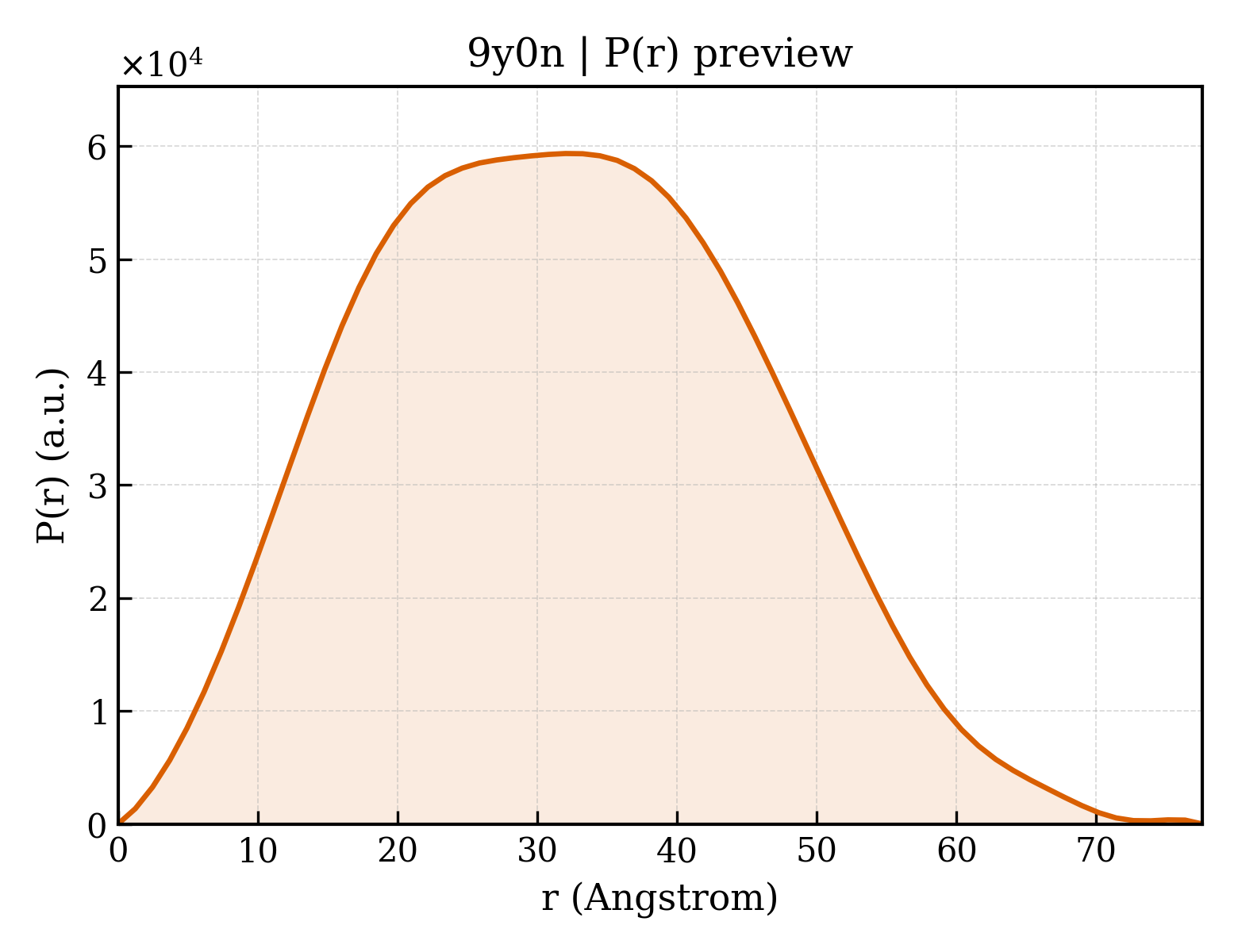

P(r) Distribution
1. Structure Basics
| entry_id | 9y0n |
| deposition_date | 2025-08-28 |
| title | Crystal structure of Escherichia coli DsbA G149K mutant |
| keywords | Thiol oxidase mutant, bacterial foldase, thioredoxin fold, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.64 Å |
| rg_electron | 23.52 Å |
| i0 | 29348600.00 |
| molecular_weight | 42518.0 kDa |
| excluded_volume | 53523 ų |
| envelope_volume | 65627 ų |
| shell_volume | 23387 ų |
| envelope_diameter | 79.7 Å |
| shell_rg | 30.39 Å |
| envelope_rg | 23.21 Å |
| shape_rg | 23.50 Å |
| total_rg | 24.41 Å |
| total_atoms | 3040 |
| n_residues | 374 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.6 Å |
| rg_real | 24.56 Å |
| rg_real_error | 0.53 Å |
| i0_real | 2.9350e+07 |
| i0_real_error | 4.3040e+05 |
| rg_reciprocal | 24.58 Å |
| i0_reciprocal | 29350000.0000 |
| total_estimate | 0.9098 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 32.0 Å |
| skewness | 0.184 |
| kurtosis | -0.546 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7047000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.997 |
