9yah
Crystal structure of metallochaperone AccA from Neisseria gonorrhoeae
SAXS Profile

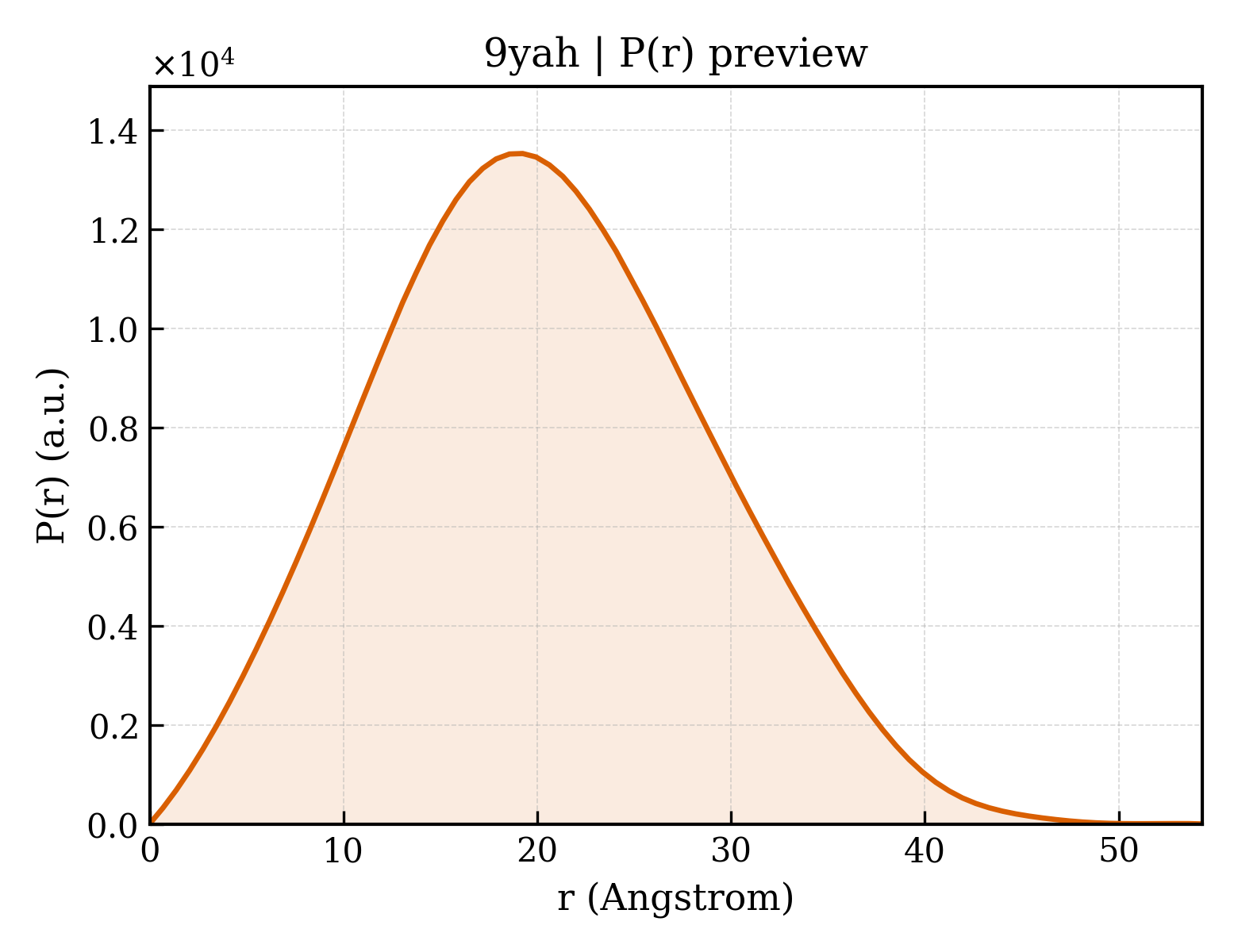

P(r) Distribution
1. Structure Basics
| entry_id | 9yah |
| deposition_date | 2025-09-15 |
| title | Crystal structure of metallochaperone AccA from Neisseria gonorrhoeae |
| keywords | Metallochaperone, Metal binding protein; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.56 Å |
| rg_electron | 14.33 Å |
| i0 | 3708970.00 |
| molecular_weight | 13484.0 kDa |
| excluded_volume | 16836 ų |
| envelope_volume | 19123 ų |
| shell_volume | 11698 ų |
| envelope_diameter | 52.5 Å |
| shell_rg | 19.59 Å |
| envelope_rg | 14.72 Å |
| shape_rg | 14.31 Å |
| total_rg | 15.47 Å |
| total_atoms | 938 |
| n_residues | 121 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.3 Å |
| rg_real | 15.50 Å |
| rg_real_error | 0.41 Å |
| i0_real | 3.7090e+06 |
| i0_real_error | 4.2540e+04 |
| rg_reciprocal | 15.51 Å |
| i0_reciprocal | 3709000.0000 |
| total_estimate | 0.8676 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.2 Å |
| skewness | 0.206 |
| kurtosis | -0.366 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 507400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.766; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 1.000 |
