9yg3

Targeting PTPN22 at non-orthosteric binding sites - a fragment approach

Method: X-RAY DIFFRACTION Dmax: 99.4 Å Quality: GOOD

SAXS Profile

SAXS profile for 9yg3

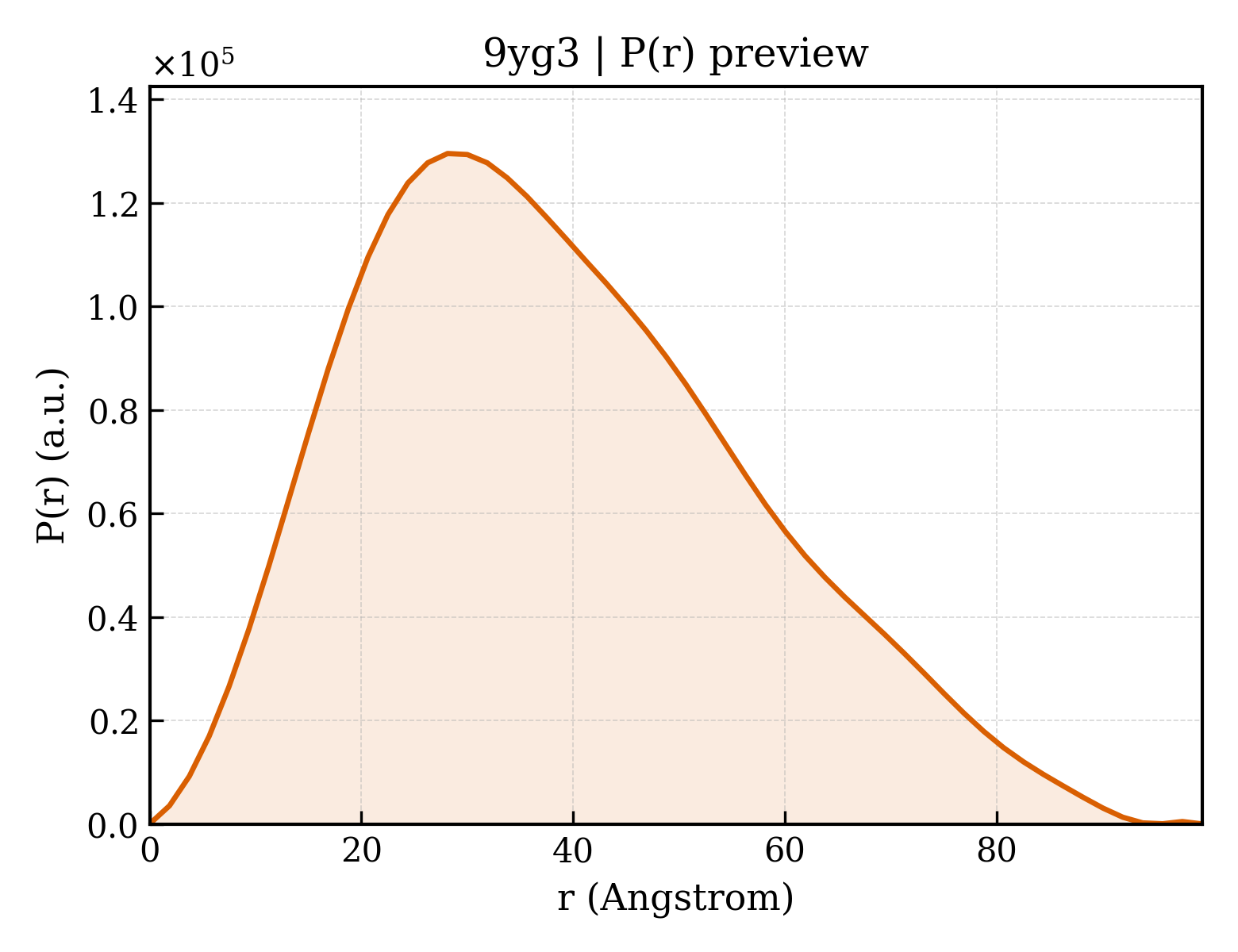

P(r) Distribution

P(r) distribution for 9yg3
▼

1. Structure Basics

entry_id9yg3
deposition_date2025-09-27
titleTargeting PTPN22 at non-orthosteric binding sites - a fragment approach
keywordsnon-receptor protein tyrosine phosphatase, IMMUNE SYSTEM; IMMUNE SYSTEM
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier29.93 Å
rg_electron29.46 Å
i073836300.00
molecular_weight68794.0 kDa
excluded_volume86434 ų
envelope_volume108800 ų
shell_volume31620 ų
envelope_diameter100.3 Å
shell_rg35.54 Å
envelope_rg29.81 Å
shape_rg29.48 Å
total_rg29.96 Å
total_atoms4852
n_residues597
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax99.4 Å
rg_real30.07 Å
rg_real_error0.76 Å
i0_real7.3840e+07
i0_real_error1.1350e+06
rg_reciprocal30.01 Å
i0_reciprocal73830000.0000
total_estimate0.8675
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary28.1 Å
skewness0.453
kurtosis-0.390
angular_range— – 0.2650 Å−1
current_alpha0.0000
highest_alpha26360000.0000
n_real_points54
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.920; Smooth: 0.824
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
