1. Structure Basics

entry_id	9yht
deposition_date	2025-09-30
title	AM12-347 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP
keywords	HIV-1, Envelope protein, Vaccine, Immunogen, Antibody, bNAb, Viral Protein, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.90 Å
rg_electron	49.46 Å
i0	1281020000.00
molecular_weight	292090.0 kDa
excluded_volume	363240 Å³
envelope_volume	539480 Å³
shell_volume	89791 Å³
envelope_diameter	159.5 Å
shell_rg	54.49 Å
envelope_rg	48.60 Å
shape_rg	49.49 Å
total_rg	49.54 Å
total_atoms	20484
n_residues	2349
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	158.6 Å
rg_real	49.57 Å
rg_real_error	1.14 Å
i0_real	1.2810e+09
i0_real_error	2.3170e+07
rg_reciprocal	49.90 Å
i0_reciprocal	1282000000.0000
total_estimate	0.8199
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	64.4 Å
skewness	0.085
kurtosis	-0.509
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	106700000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Transmembrane protein gp41
formula_weight	17134.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,B,A
atom_count	20484

AVGIGAVSLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEPQQHLLKDTHWGIKQLQARVLAVEHYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 2 polymer

description	Envelope glycoprotein gp120
formula_weight	53927.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	G,F,E

NLWVTVYYGVPVWKDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLENVTEEFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLQCTNYTPNLTNDMRGELKNCSFNMTTELRDKKQKVYSLFYRLDVVQINENQGNRSNNSNKEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKNKTFNGTGPCPNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVIIRSENITNNAKNILVQLNTPVQINCTRPNNNTVKSIRIGPGQAFYYTGDIIGDIRQAHCNVSKATWNETLGNVSKQLRKHFGNNTIIRFAQSSGGDLEVTTHSFNCGGEFFYCNTSGLFNSTWISNTSVQGSNSTGSNDSITLPCRIKQIINMWQRIGQCMYAPPIQGVIRCVSNITGLILTRDGGSTNSTTETFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 3 polymer

description	AM12-347 Fab heavy chain
formula_weight	14602.4 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,J,M

QVQLQQWGEGLVKPSETLSLTCAIYGCSIRDYYWAWIRQAPGRGLEWIGIIDTVDSDDASPSYSPSLKNRVVISTDTSKNQFSLKVRSLTAADTAVYYCARAGPLRYYGTWNRQRRFDVWGPGVLVSVSS

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 4 polymer

description	AM12-347 Fab light chain
formula_weight	12278.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,K,N

DVVMTQSPLSLPITPGQPASISCRSSHSLVHSDGNTYLSWYHQKPGQPPRLLIYKVSNRDSGVPDRFSGSGAGTDFTLKISRVEAEDVGIFYCGQGTHWPWTFGQGTKVEIK

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	27

Entity 6 branched

description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 7 branched

description	;alpha-D-mannopyranose-(1-3)-[alpha-D-glucopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 8 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	24

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.30 Å
resolution_method	—
num_particles	42602

fit	/app/data/saxs_computation/yh/9yht/9yht.fit
pddf	/app/data/pr_computation/yh/9yht/9yht.pr.out
profile	/app/data/saxs_computation/yh/9yht/9yht.dat

AM12-347 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP

SAXS Profile

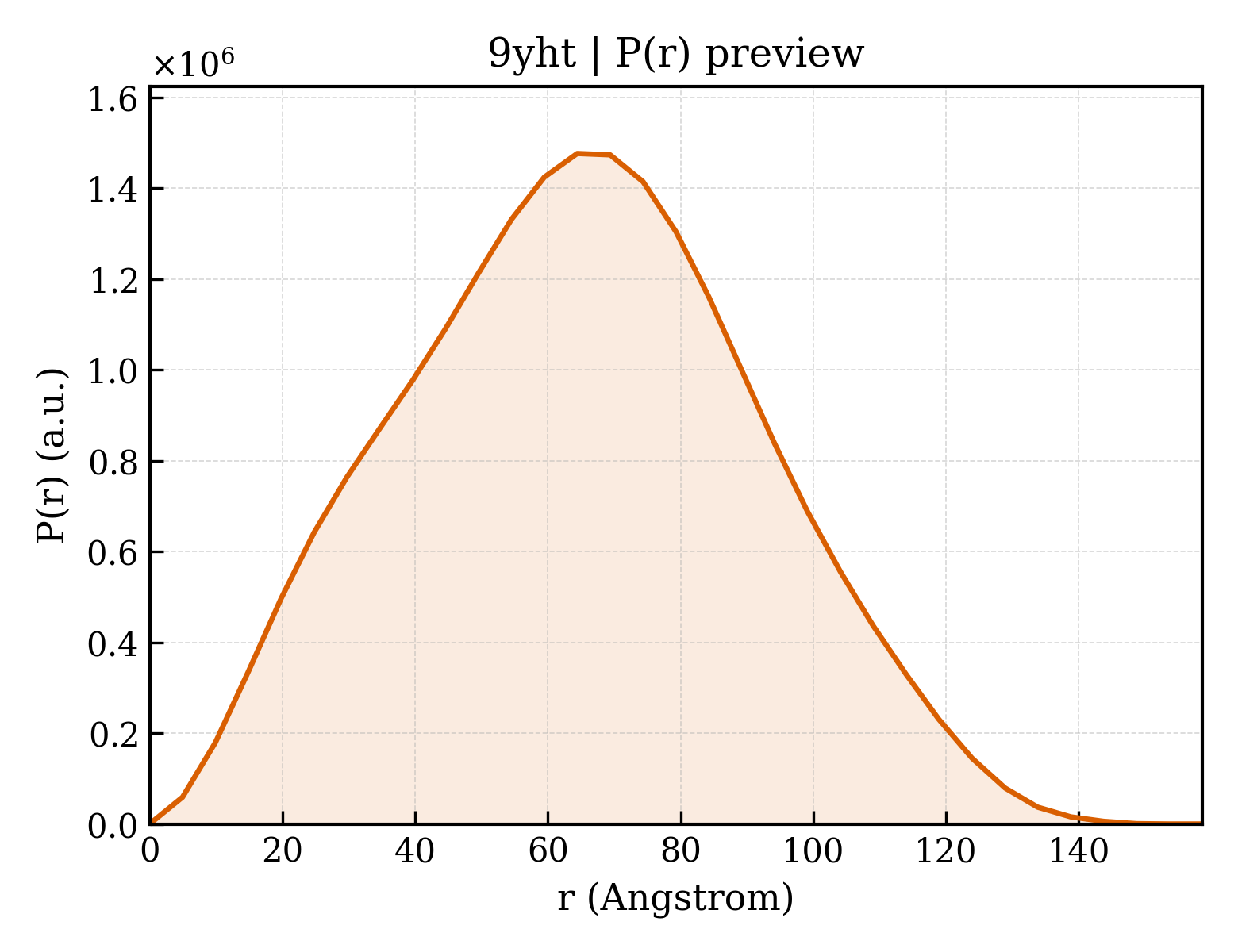

P(r) Distribution
