1. Structure Basics

entry_id	9yib
deposition_date	2025-10-01
title	AM12-351 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP
keywords	HIV-1, Envelope protein, Vaccine, Immunogen, Antibody, bNAb, Viral Protein, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.87 Å
rg_electron	49.60 Å
i0	1300520000.00
molecular_weight	294290.0 kDa
excluded_volume	365990 Å³
envelope_volume	548960 Å³
shell_volume	91281 Å³
envelope_diameter	160.2 Å
shell_rg	54.72 Å
envelope_rg	48.54 Å
shape_rg	49.63 Å
total_rg	49.69 Å
total_atoms	20628
n_residues	2343
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	149.3 Å
rg_real	49.67 Å
rg_real_error	0.95 Å
i0_real	1.3010e+09
i0_real_error	2.3750e+07
rg_reciprocal	50.02 Å
i0_reciprocal	1301000000.0000
total_estimate	0.8642
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	65.3 Å
skewness	0.083
kurtosis	-0.503
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	102400000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.384

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Transmembrane protein gp41
formula_weight	17134.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,B,A
atom_count	20628

AVGIGAVSLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEPQQHLLKDTHWGIKQLQARVLAVEHYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source

organism	Human immunodeficiency virus 1
common_name	HIV-1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 2 polymer

description	Envelope glycoprotein gp160
formula_weight	53927.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	G,F,E

NLWVTVYYGVPVWKDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLENVTEEFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLQCTNYTPNLTNDMRGELKNCSFNMTTELRDKKQKVYSLFYRLDVVQINENQGNRSNNSNKEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKNKTFNGTGPCPNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVIIRSENITNNAKNILVQLNTPVQINCTRPNNNTVKSIRIGPGQAFYYTGDIIGDIRQAHCNVSKATWNETLGNVSKQLRKHFGNNTIIRFAQSSGGDLEVTTHSFNCGGEFFYCNTSGLFNSTWISNTSVQGSNSTGSNDSITLPCRIKQIINMWQRIGQCMYAPPIQGVIRCVSNITGLILTRDGGSTNSTTETFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source

organism	Human immunodeficiency virus 1
common_name	HIV-1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 3 polymer

description	AM12-351 Fab heavy chain
formula_weight	14700.5 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,J,M

QVQLQQWGEGLMKPSETLSLTCAIYGVSIRDYYWSWIRQPPGKGLEWIGIVDTVDSDDASPQYTPSLRNRVVISTDTSKNQFSLKLRSVTAADTALYFCARAGALRYYGTWNRERRFDVWGPGVLVTVSS

Source

organism	Human immunodeficiency virus 1
common_name	HIV-1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 4 polymer

description	AM12-351 Fab light chain
formula_weight	12177.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,K,N

DVVMTQSPLSLPITPGQPASISCRSSHSLVDSDGNTFLSWYHQKPGQPPRLLIYKVSNRDSGVPDRFSGTGAGTDFTLKISRVEAEDVGIFSCGQGTHWPWTFGQGTKVEIK

Source

organism	Human immunodeficiency virus 1
common_name	HIV-1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	30

Entity 6 branched

description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 7 branched

description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1073.0 kDa
src_method	man
entity_count	3

Entity 8 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	30

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.30 Å
resolution_method	—
num_particles	23144

fit	/app/data/saxs_computation/yi/9yib/9yib.fit
pddf	/app/data/pr_computation/yi/9yib/9yib.pr.out
profile	/app/data/saxs_computation/yi/9yib/9yib.dat

AM12-351 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP

SAXS Profile

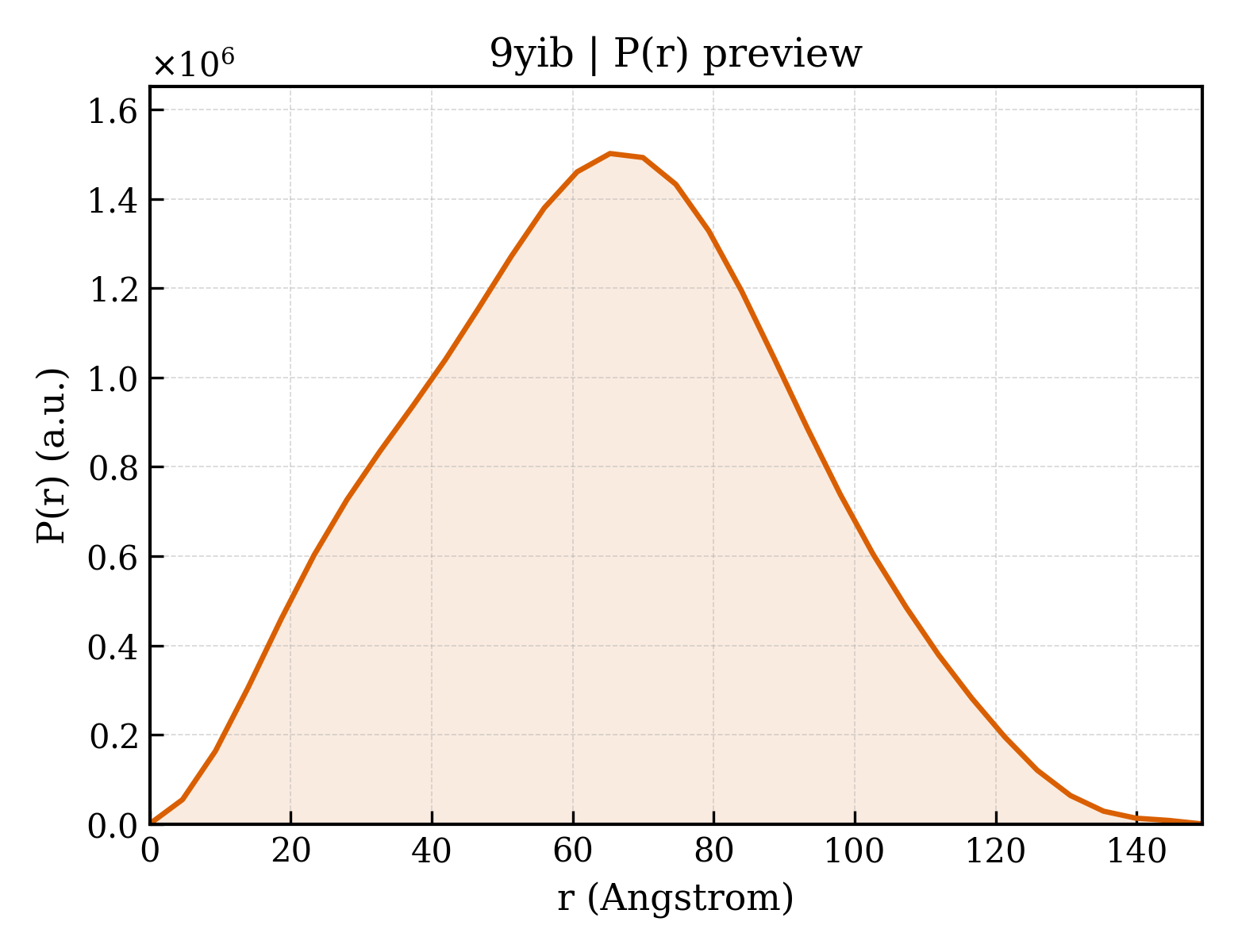

P(r) Distribution
