1. Structure Basics

entry_id	9yie
deposition_date	2025-10-01
title	NN39-25 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP
keywords	HIV-1, Envelope protein, Vaccine, Immunogen, Antibody, bNAb, Viral Protein, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.26 Å
rg_electron	48.70 Å
i0	1148380000.00
molecular_weight	275400.0 kDa
excluded_volume	342100 Å³
envelope_volume	490670 Å³
shell_volume	83118 Å³
envelope_diameter	152.6 Å
shell_rg	53.14 Å
envelope_rg	47.97 Å
shape_rg	48.74 Å
total_rg	48.74 Å
total_atoms	19305
n_residues	2307
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	150.4 Å
rg_real	48.94 Å
rg_real_error	1.07 Å
i0_real	1.1480e+09
i0_real_error	2.1290e+07
rg_reciprocal	49.25 Å
i0_reciprocal	1149000000.0000
total_estimate	0.8770
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	65.8 Å
skewness	0.068
kurtosis	-0.551
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	88400000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.579

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Transmembrane protein gp41
formula_weight	17134.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	19305

AVGIGAVSLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEPQQHLLKDTHWGIKQLQARVLAVEHYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 2 polymer

description	Envelope glycoprotein gp160
formula_weight	53927.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,F,G

NLWVTVYYGVPVWKDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLENVTEEFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLQCTNYTPNLTNDMRGELKNCSFNMTTELRDKKQKVYSLFYRLDVVQINENQGNRSNNSNKEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKNKTFNGTGPCPNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVIIRSENITNNAKNILVQLNTPVQINCTRPNNNTVKSIRIGPGQAFYYTGDIIGDIRQAHCNVSKATWNETLGNVSKQLRKHFGNNTIIRFAQSSGGDLEVTTHSFNCGGEFFYCNTSGLFNSTWISNTSVQGSNSTGSNDSITLPCRIKQIINMWQRIGQCMYAPPIQGVIRCVSNITGLILTRDGGSTNSTTETFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 3 polymer

description	NN39-25 Fab heavy chain
formula_weight	13277.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,J,M

VQLQESGPGLVKPSETLSLTCAVSGGSISSSNWWSWIRQSPGKGLQWIGGIYSNSENTYYNPSLQSRVAISKDTSKNQFSLRLNSVTAADTAVYYCARQKTCSSTYCSPDIDFWGQGVLVTV

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 4 polymer

description	NN39-25 Fab light chain
formula_weight	11055.1 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	K,L,N

VLTQPPSVSAAPGQKVTITCSGSSSNIGRTYISWYQQVPGTAPKLLISDNFKRPSGESDRFSGSKSGTSASLAITGLQTGDEADYYCGAWDSSLSAYIFGAGTRLT

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	12

Entity 6 branched

description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	748.7 kDa
src_method	man
entity_count	3

Entity 7 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	33

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.30 Å
resolution_method	—
num_particles	38914

fit	/app/data/saxs_computation/yi/9yie/9yie.fit
pddf	/app/data/pr_computation/yi/9yie/9yie.pr.out
profile	/app/data/saxs_computation/yi/9yie/9yie.dat

NN39-25 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP

SAXS Profile

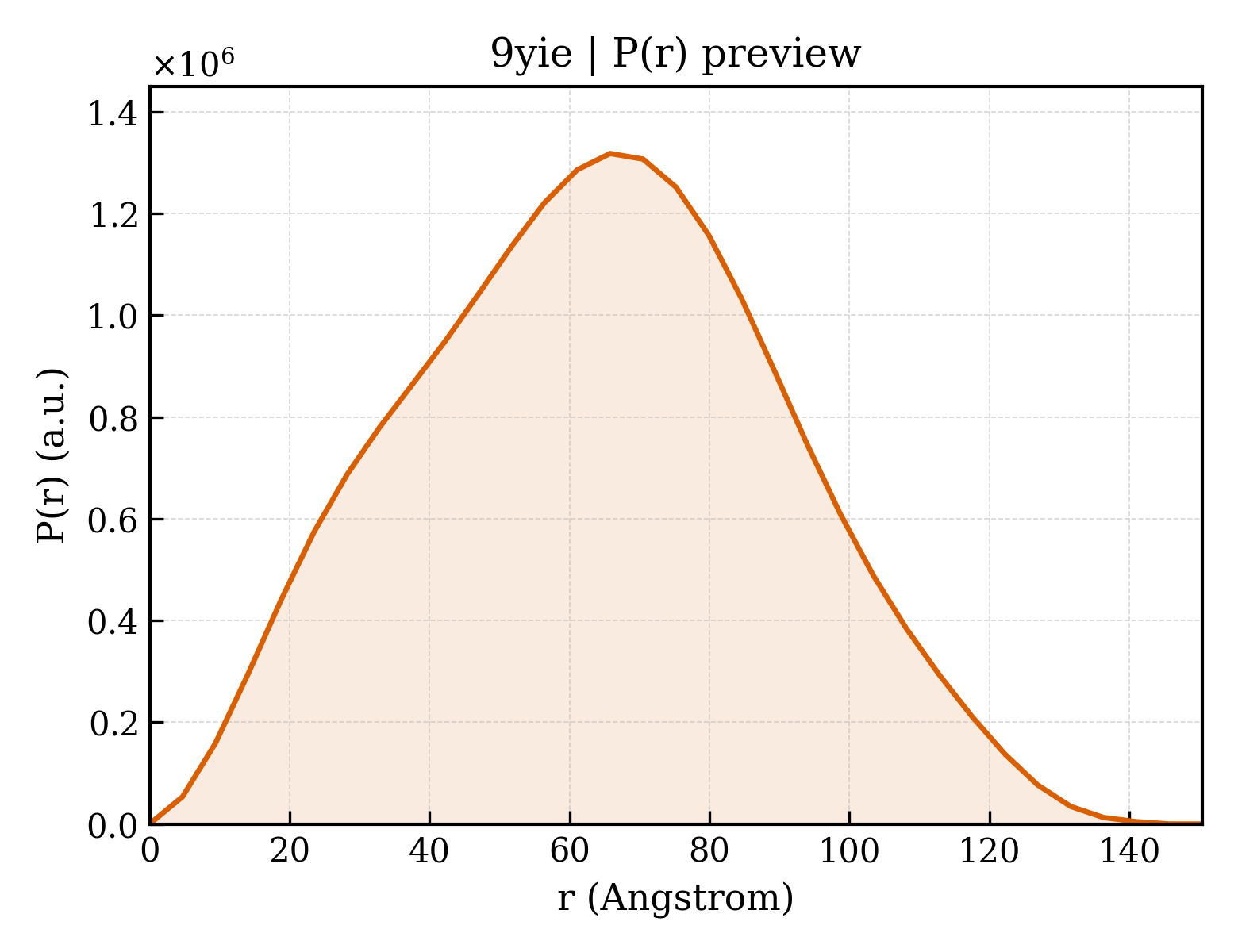

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)
