SAXSdb — 9yih

▼

1. Structure Basics

entry_id	9yih
deposition_date	2025-10-01
title	V634-136 UCA Fab in complex with HIV-1 Env del4-3fill SOSIP
keywords	HIV-1, Envelope protein, Vaccine, Immunogen, Antibody, bNAb, Viral Protein, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.65 Å
rg_electron	45.28 Å
i0	790873000.00
molecular_weight	227880.0 kDa
excluded_volume	283430 Å³
envelope_volume	403580 Å³
shell_volume	74033 Å³
envelope_diameter	161.2 Å
shell_rg	50.33 Å
envelope_rg	44.68 Å
shape_rg	45.29 Å
total_rg	45.45 Å
total_atoms	15962
n_residues	1899
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	151.1 Å
rg_real	45.52 Å
rg_real_error	1.24 Å
i0_real	7.9090e+08
i0_real_error	1.6020e+07
rg_reciprocal	45.64 Å
i0_reciprocal	791000000.0000
total_estimate	0.8769
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	60.4 Å
skewness	0.227
kurtosis	-0.326
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	88620000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.840

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Transmembrane protein gp41
formula_weight	17134.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	15962

AVGIGAVSLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEPQQHLLKDTHWGIKQLQARVLAVEHYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 2 polymer

description	Envelope glycoprotein gp160
formula_weight	53501.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,F,G

NLWVTVYYGVPVWKDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLENVTEEFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLQCTNYTNDMRGELKNCSFNMTTELRDKKQKVYSLFYRLDVVQINENQGNRSNNSNKEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKNKTFNGTGPCPNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVIIRSENITNNAKNILVQLNTPVQINCTRPNNNTVKSIRIGPGQAFYYTGDIIGDIRQAHCNVSKATWNETLGNVSKQLRKHFGNNTIIRFAQSSGGDLEVTTHSFNCGGEFFYCNTSGLFNSTWISNTSVQGSNSTGSNDSITLPCRIKQIINMWQRIGQCMYAPPIQGVIRCVSNITGLILTRDGGSTNSTTETFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 3 polymer

description	V634-136 UCA Fab heavy chain
formula_weight	14302.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

QVQLQESGPGLVKPSETLSLTCAVSGGSISSGYYYWSWIRQPPGKGLEWIGYITYSGSTSYNPSLKSRVTISRDTSKNQFSLKLSSVTAADTAVYYCATDYEDDYGYYYTSIRGYFDYWGQGVLVTVSS

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 4 polymer

description	V634-136 UCA Fab light chain
formula_weight	12283.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

DVVMTQSPLSLPITPGQPASMTCRSSQSLLHSNGNTYLSWFLQKPGQPPRRLIYKVSNRDSGVPDRFSGSGAGTDFTLKISRVEAEDVGVYYCMQGTHFPFTFGPGTKLDIK

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	11

Entity 6 branched

description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	586.5 kDa
src_method	man
entity_count	3

Entity 7 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1397.2 kDa
src_method	man
entity_count	1

Entity 8 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	33

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.20 Å
resolution_method	—
num_particles	45605

fit	/app/data/saxs_computation/yi/9yih/9yih.fit
pddf	/app/data/pr_computation/yi/9yih/9yih.pr.out
profile	/app/data/saxs_computation/yi/9yih/9yih.dat

V634-136 UCA Fab in complex with HIV-1 Env del4-3fill SOSIP

SAXS Profile

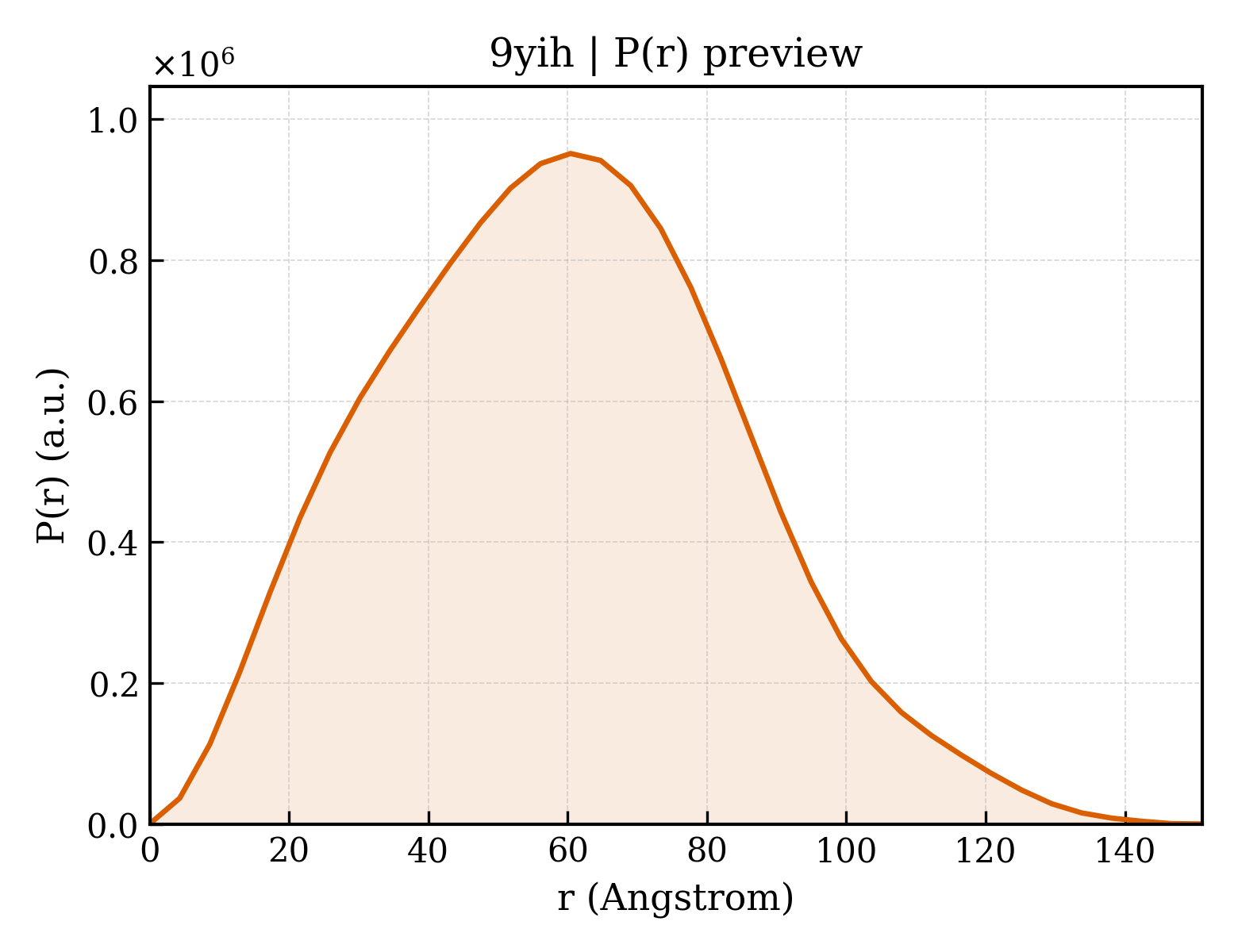

P(r) Distribution
