9yii

V645-158 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP

Method: ELECTRON MICROSCOPY D_max: 150.8 Å Quality: GOOD

SAXS Profile

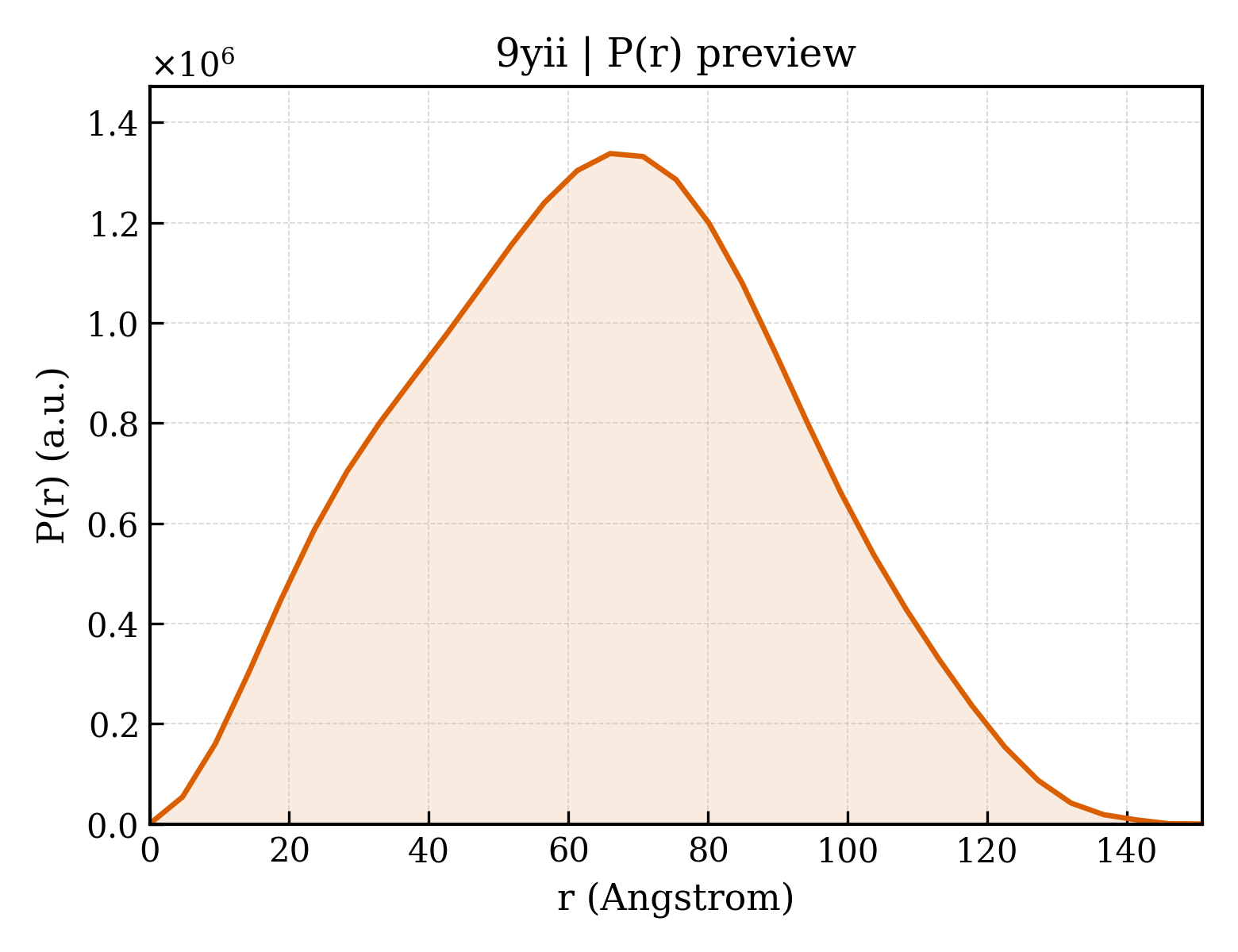

P(r) Distribution

▼

1. Structure Basics

entry_id	9yii
deposition_date	2025-10-01
title	V645-158 Fab in complex with HIV-1 Env 5MUT-3fill SOSIP
keywords	HIV-1, Envelope protein, Vaccine, Immunogen, Antibody, bNAb, Viral Protein; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.88 Å
rg_electron	49.49 Å
i0	1194280000.00
molecular_weight	283320.0 kDa
excluded_volume	352800 Å³
envelope_volume	515090 Å³
shell_volume	86103 Å³
envelope_diameter	154.6 Å
shell_rg	53.91 Å
envelope_rg	48.83 Å
shape_rg	49.51 Å
total_rg	49.58 Å
total_atoms	19863
n_residues	2301
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	150.8 Å
rg_real	49.56 Å
rg_real_error	1.11 Å
i0_real	1.1940e+09
i0_real_error	2.2670e+07
rg_reciprocal	49.88 Å
i0_reciprocal	1195000000.0000
total_estimate	0.8749
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	66.0 Å
skewness	0.067
kurtosis	-0.568
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	100200000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.508

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	Transmembrane protein gp41
formula_weight	17134.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	19863

AVGIGAVSLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEPQQHLLKDTHWGIKQLQARVLAVEHYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 2 polymer

description	Envelope glycoprotein gp120
formula_weight	53927.0 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,F,G

NLWVTVYYGVPVWKDAETTLFCASDAKAYETEKHNVWATHACVPTDPNPQEIHLENVTEEFNMWKNNMVEQMHEDIISLWDQSLKPCVKLTPLCVTLQCTNYTPNLTNDMRGELKNCSFNMTTELRDKKQKVYSLFYRLDVVQINENQGNRSNNSNKEYRLINCNTSACTQACPKVSFEPIPIHYCAPAGFAILKCKNKTFNGTGPCPNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVIIRSENITNNAKNILVQLNTPVQINCTRPNNNTVKSIRIGPGQAFYYTGDIIGDIRQAHCNVSKATWNETLGNVSKQLRKHFGNNTIIRFAQSSGGDLEVTTHSFNCGGEFFYCNTSGLFNSTWISNTSVQGSNSTGSNDSITLPCRIKQIINMWQRIGQCMYAPPIQGVIRCVSNITGLILTRDGGSTNSTTETFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source

organism	Human immunodeficiency virus 1
ncbi_taxonomy_id	11676
host_organism	Homo sapiens

Entity 3 polymer

description	V645-158 Fab heavy chain
formula_weight	13722.4 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,J,M

EVQLVESGGGLAKPGGSLRLSCAASGLTLSKYWMHWVRQAPGKGLEWISVVNGDGNSRYYAGSVKGRFTISREDAKNTLYLQMDSLSTGDTAVYYCAADLYYSYWEPNRRIRFDVWGPGVLVTV

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 4 polymer

description	V645-158 Fab light chain
formula_weight	12311.7 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	K,L,N

DVVMTQTPLSLPVTLGEPASISCRSSHSLFHSYEGYTCLDWYLQKPGQSPRLLIYEVSNRASGVPDRFSGSGSDTDFTLKISRVEAEDIGIYYCVQGKEYPPTFGGGTKVEI

Source

organism	Macaca mulatta
common_name	Rhesus monkey
ncbi_taxonomy_id	9544
host_organism	Homo sapiens

Entity 5 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	15

Entity 6 branched

description	;alpha-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-glucopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1073.0 kDa
src_method	man
entity_count	3

Entity 7 branched

description	;alpha-D-mannopyranose-(1-3)-[alpha-D-glucopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	910.8 kDa
src_method	man
entity_count	3

Entity 8 branched

description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-3)-alpha-D-glucopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1235.1 kDa
src_method	man
entity_count	3

Entity 9 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	18

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	4.20 Å
resolution_method	—
num_particles	43887

fit	/app/data/saxs_computation/yi/9yii/9yii.fit
pddf	/app/data/pr_computation/yi/9yii/9yii.pr.out
profile	/app/data/saxs_computation/yi/9yii/9yii.dat
