9yzb

Isoreticular co-crystal 1 with symmetrical expanded duplex (31mer) containing insert sequence ACGGTAATTA

Method: X-RAY DIFFRACTION D_max: 107.7 Å Quality: GOOD

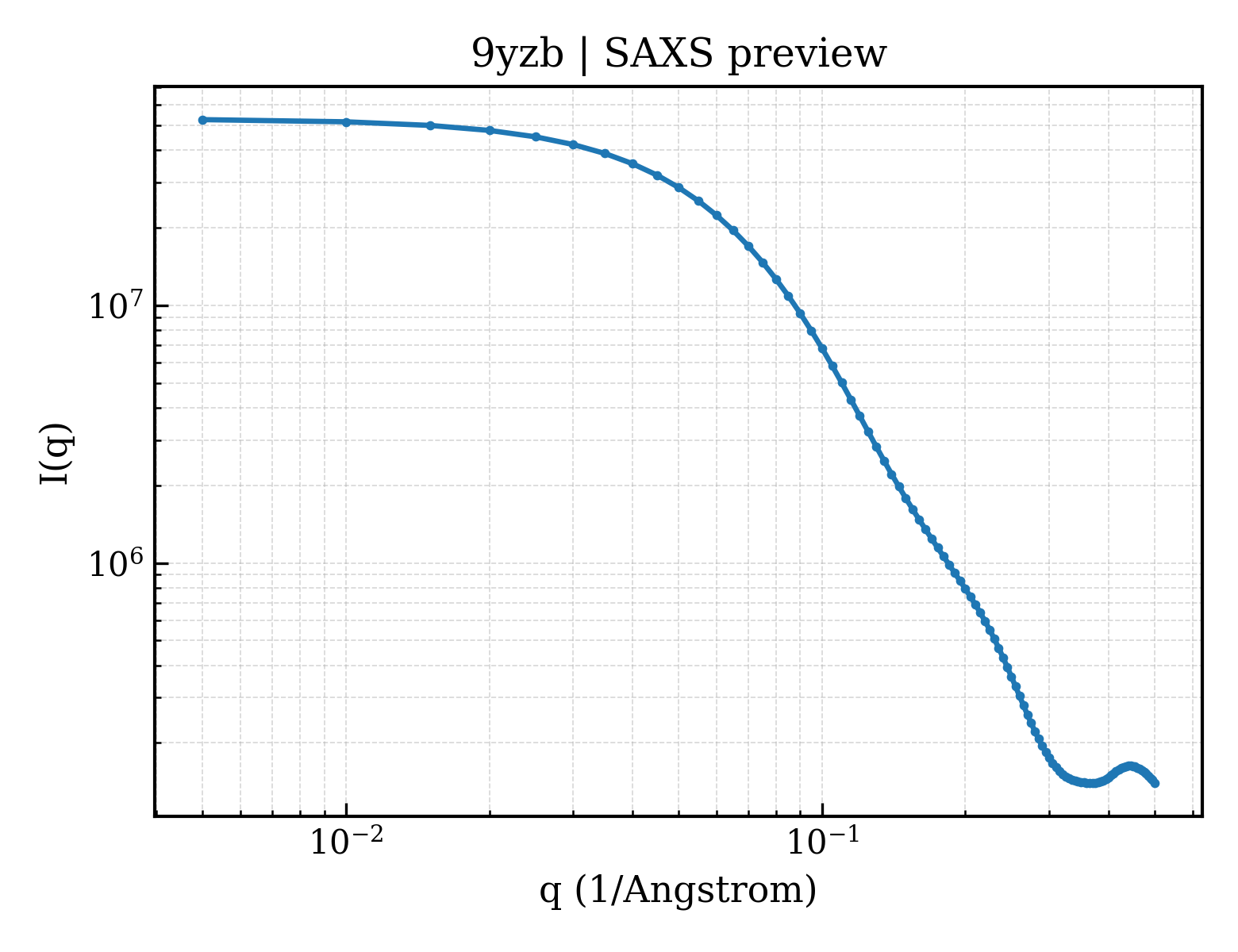

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9yzb
deposition_date	2025-10-30
last_revision	2026-02-18
title	Isoreticular co-crystal 1 with symmetrical expanded duplex (31mer) containing insert sequence ACGGTAATTA
keywords	Protein-DNA complex, DNA Binding protein, Transcription factor; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.52 Å
rg_electron	25.94 Å
i0	52934600.00
molecular_weight	44770.0 kDa
excluded_volume	50775 Å³
envelope_volume	70107 Å³
shell_volume	24391 Å³
envelope_diameter	111.2 Å
shell_rg	30.38 Å
envelope_rg	26.68 Å
shape_rg	25.78 Å
total_rg	26.70 Å
total_atoms	3076
n_residues	283
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	107.7 Å
rg_real	27.88 Å
rg_real_error	1.20 Å
i0_real	5.2930e+07
i0_real_error	8.9580e+05
rg_reciprocal	27.76 Å
i0_reciprocal	52930000.0000
total_estimate	0.7742
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.7 Å
skewness	0.691
kurtosis	0.401
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	4241000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.543; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.598; Smooth: 0.833

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (31-MER)
formula_weight	9496.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	A
atom_count	3110

TAATTACCTGTGACAAATTGCCCTCAGACGG

Entity 2 polymer

description	DNA (31-MER)
formula_weight	9567.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

TACCGTCTGAGGGCAATTTGTCACAGGTAAT

Entity 3 polymer

description	Replication initiation protein
formula_weight	30749.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (2)

▶

length_a	75.528 Å
length_b	130.595 Å
length_c	135.529 Å
angle_alpha	90.00 °
angle_beta	90.13 °
angle_gamma	90.00 °
z_pdb	4

space_group	I 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	4.130 Å
resolution_low	38.810 Å
r_factor	0.2276
r_work	0.2248
r_free	0.2526

fit	/app/data/saxs_computation/yz/9yzb/9yzb.fit
pddf	/app/data/pr_computation/yz/9yzb/9yzb.pr.out
profile	/app/data/saxs_computation/yz/9yzb/9yzb.dat
